If your Banks Bullet Diesel Tuner module
has been properly installed as outlined in
the previous section, it will power up and
briefly scroll ‘BANKS POWER’ across
the screen, then display the current
power level setting after you switch your
ignition key on.
If the Bullet module detects any errors
in installation wiring, sensor readings,
or internal hardware functions, it will
flash a message with the detected errors
immediately after displaying the current
power level setting. Please refer to the
following section, ‘Troubleshooting’, for a
full explanation of the error codes, their
causes, and corrective actions.
NOTE: The Bullet module will
automatically detect an EGT
thermocouple when one is properly
connected, and will configure the
available menus accordingly. If you do
not have a Banks EGT thermocouple
installed and properly connected to the
Bullet module, none of the EGT-related
menus will be displayed.
If the Bullet module does not detect
any errors in the system, it will monitor
and display the selected default engine
parameter in the following format:
• Boost is displayed in PSI – the letter ‘B’
and one or two digits
• EGT is displayed in degrees Fahrenheit
– three or four digits with no prefacing
letter
• Fuel amount is displayed as a
percentage of stock fuel amount
entering the engine – the letter ‘F‘ and
three digits
• VER displays the tuner part number
and current firmware/calibration version
This is the Bullet module’s normal
display mode. Power level selection, EGT
limiting, display options and diagnostics
information are all accessed by pressing
the ‘MENU’ button on the face of the
module.
Section 3
OPERATION OF THE BANKS BULLET DIESEL TUNER

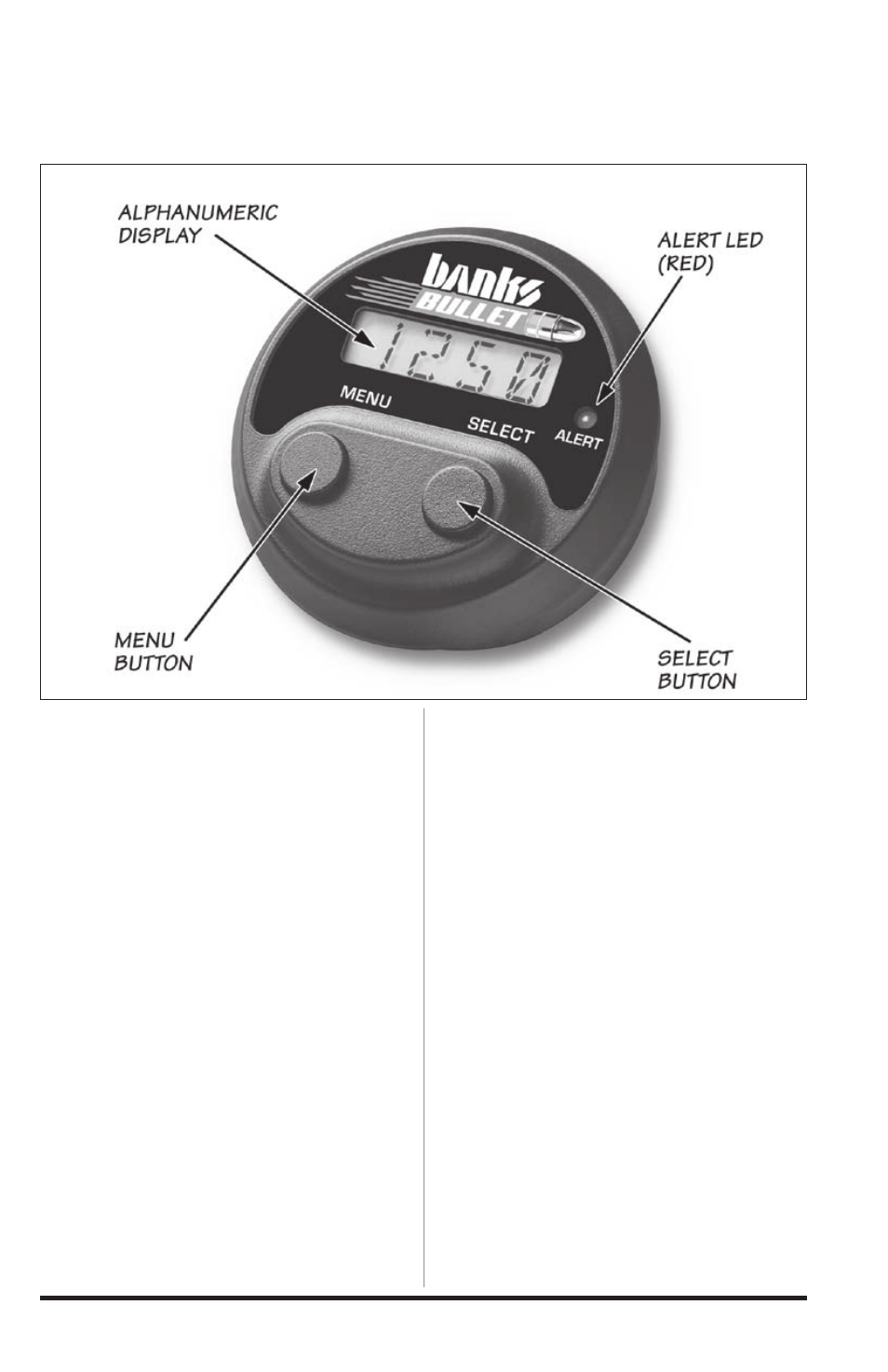

Figure 15: Banks Bullet module controls
