12
96584 v.5.0
1.
Disconnect the battery ground
cables from each of the batteries.
Secure the cables so that they do not
come in contact with the battery posts
during the installation.
2.

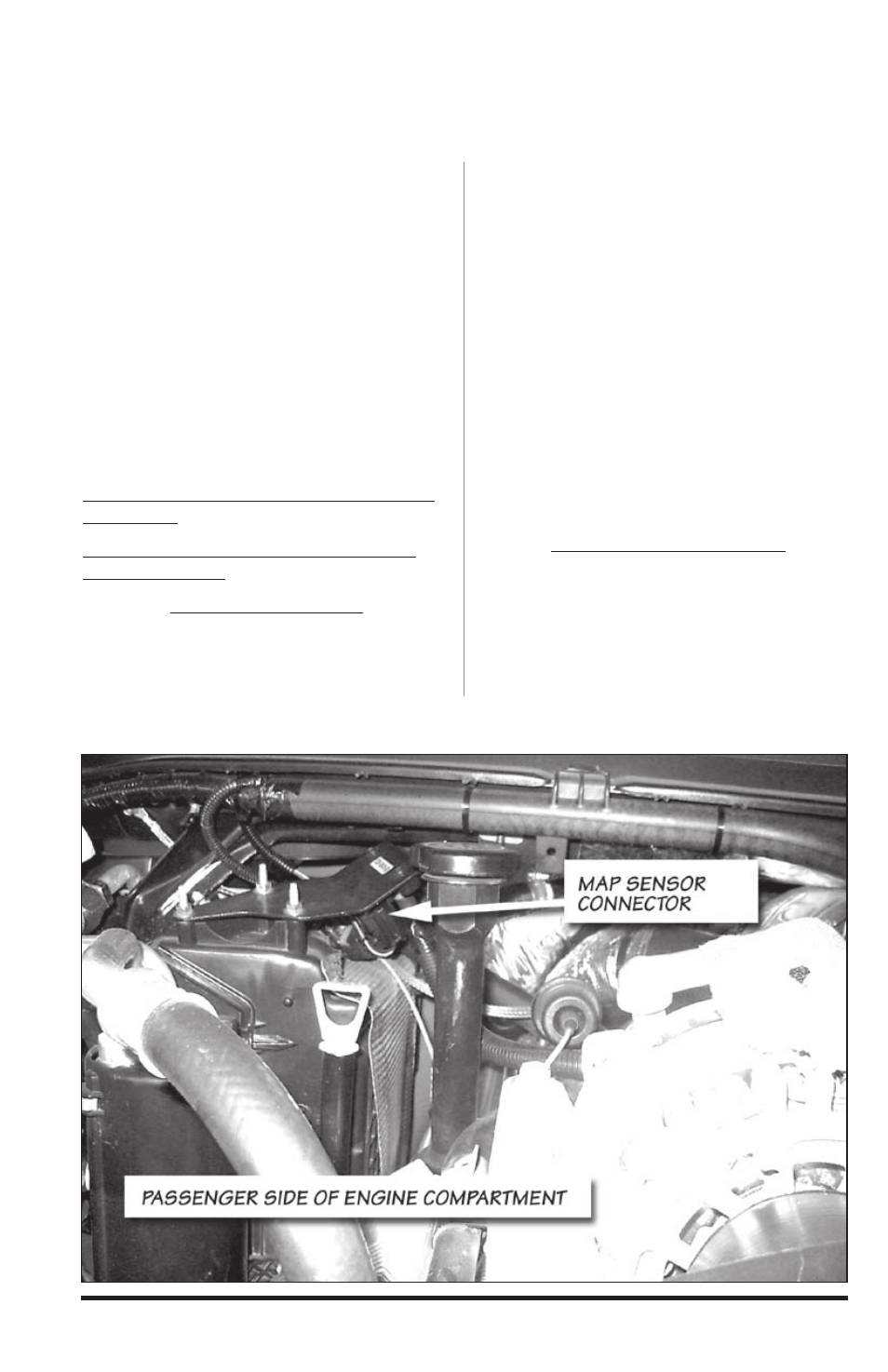

Locate the Manifold Absolute
Pressure (MAP) sensor. Unplug the
factory connector and plug it into
the corresponding male MAP sensor
connector on the Banks Bullet harness.
Plug the Banks Bullet’s female MAP
sensor connector into the sensor. See
Figure 5.
-For model year 2003 follow steps 3
through 5.
-For Model year 2004-2007 follow
steps 6 and 7.
MODEL YEAR 2003
3.
To access the Injection control
Pressure (ICP) sensor on a 2003 model
year truck, a heat shield at the (rear)
of the engine must be removed. The
heat shield is accessible from beneath
the vehicle. The heat shield is secured
with one, 13mm and two, 10mm bolts.
See Figure 6.
4.
once the heat shield is removed,
locate the IcP sensor. Unplug the
factory connector and plug it into
the corresponding male IcP sensor
connector on the Banks Bullet harness.
Plug the Banks Bullet’s female IcP
sensor connector into the sensor. See
Figure 7.
5.
Reinstall turbocharger heat shield.
Skip to Step 8.
MODEL YEAR 2004- 07
6.
Locate the Injection control
Pressure (IcP) sensor located on the
right side of the engine between
the compressor boost tube and the
alternator. See Figure 8.
Section 2
INSTALLATION OF WIRING HARNESS, CONNECTIONS AND BANKS
BULLET DIESEL TUNER
Figure 5
