fully rotated counterclockwise. Secure
the switch(s) with the internal tooth
washer(s) and nut(s). Snug the nut(s).
Be careful not to over-torque the nut(s)
and damage the threads.
14.
Install the knob on the shaft facing
the #1 Level on the Six-Gun/EconoMind
label and the OFF setting on the
Brake label. On the knob(s), snug the
two (2) set screws with the supplied
0.050” hex key wrench. The completed
switch(s) installation will appear as
shown in Figure 28 for 2003-04 model
year and Figure 29 for 2005-07 model
year.
15.
Re-install the dash panel, make
all electrical connections that were
disconnected, and re-install the radio
(2003-04 model year vehicles only).
If not installing the optional Banks
Brake, skip step 16.
16.
For installation of the Banks
Brake option: Locate the RJ12
connector on the Brake wire Harness
and connect it to the back of the Brake
switch.
17.
Route the Six-Gun/EconoMind
switch’s cable to the wire harness
that was routed into the passenger
compartment from the Six-Gun/
EconoMind Diesel Tuner, and plug the
2-pin connector into the corresponding
connector on the Six-Gun/EconoMind
harness.
NoTE: The 6-pin plug on the wire
harness routed from the Six-Gun/
EconoMind module to the passenger
compartment will not be used.
18.
2003-04 vehicles only: Reinstall
the lower interior panel that allows
access to the fuse box, the battery
cover and battery cables.
-END, SEcTION 3-

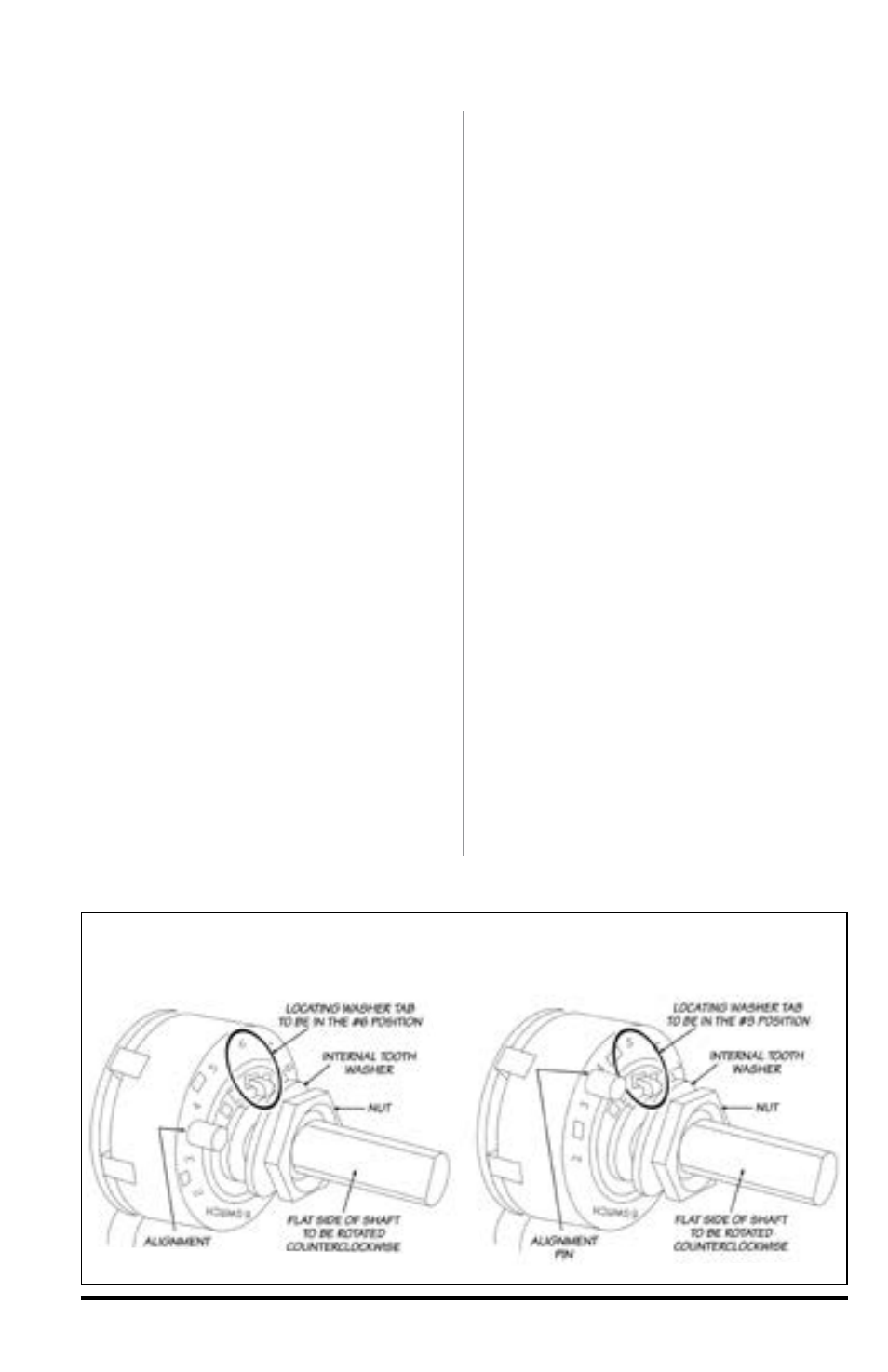

Figure 27: Banks Six-Gun/EconoMind/Brake switch, orientation of tab on the washer
Six-Gun/EconoMind Switch Orientation Banks Brake Switch Orientation
