18
96808 v.14 .0

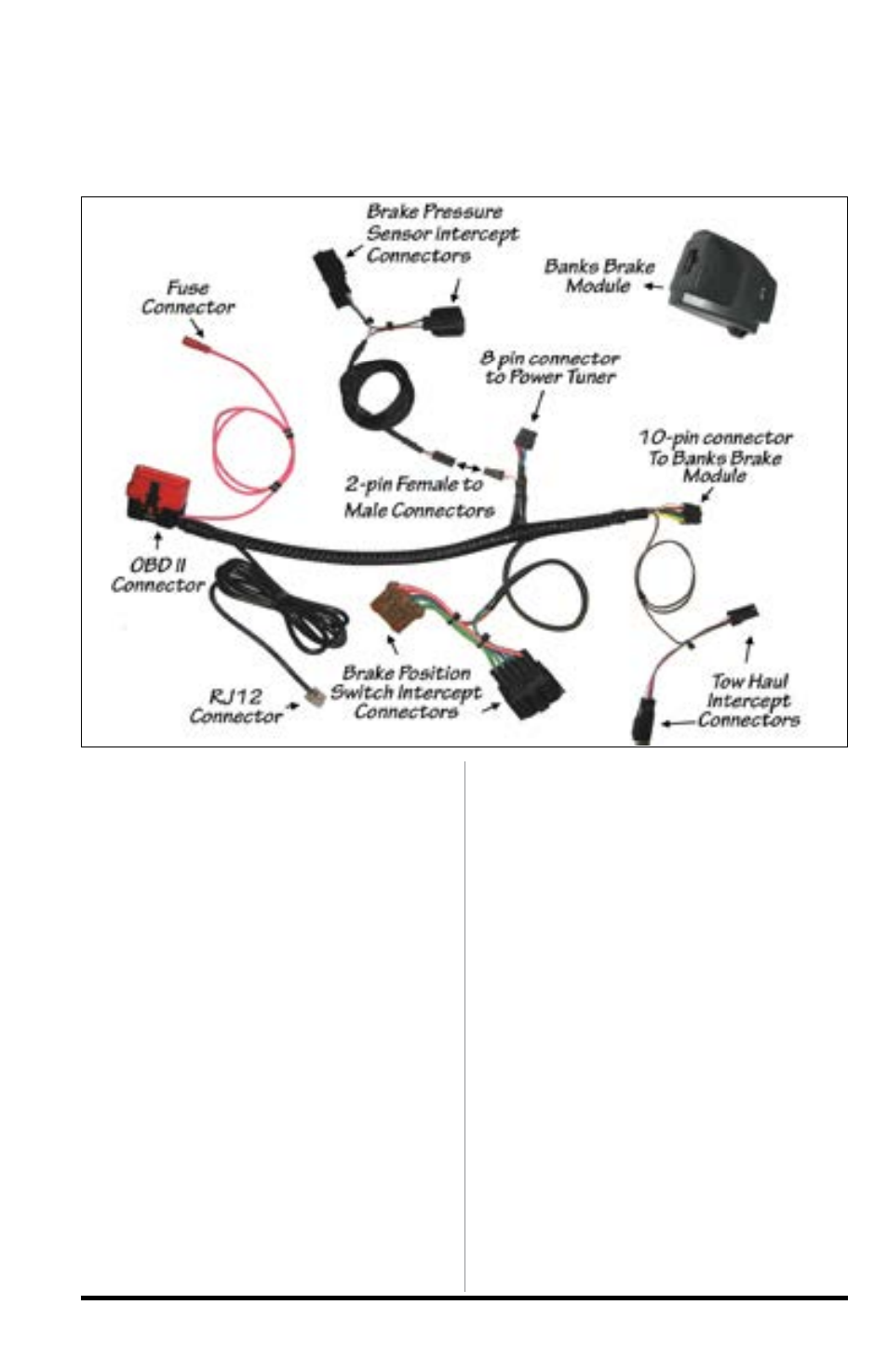

General Assembly: Banks Brake Wire Harnesses
If not installing Banks Brake, continue
to Section 3.
If an existing Six-Gun/EconoMind
Tuner has been previously
installed, verify that the Tuner has
the latest version firmware. Check
and compare to the current version
available on the Banks website.
Banks Brake may not function
properly if Six-Gun/EconoMind
Tuner firmware is not up to the
current version. If the tuner is
not to the latest version contact
Customer Support (888) 839-5600
before continuing with installation.
1.
Remove the fuse access panel
below the steering column as shown in
Figure 14.
2.
Remove the fuse box cover, located
in the cabin compartment.
If installing a Banks Brake to a
previously installed Banks Six-Gun/
EconoMind Tuner, continue to step 3.
If the Six-Gun/EconoMind is being
installed along with the Banks
Brake, skip to step 7.
Removing a Previously Installed
Banks OBD II Interface Cable
3.
Locate the RED single terminal
connector on the Banks ‘OBDII
Interface cable’ and disconnect it from
the mini-fuse blade tap location #22 if
already connected. DO NOT remove
the mini-fuse blade tap as it will be
used for the Banks Brake wire harness
installation. See Figure 15.
4.
Disconnect Banks OBD II interface
cable from the vehicle OBD II
connector.
5.
Disconnect the 8-pin connector
from the OBD II interface cable from
the 8-pin connector on the Six-Gun/
EconoMind in-cab cable.
Section 2
INSTALLATION OF WIRING HARNESS & CONNECTIONS FOR
OPTIONAL BANKS BRAKE
