12
96808 v.14 .0

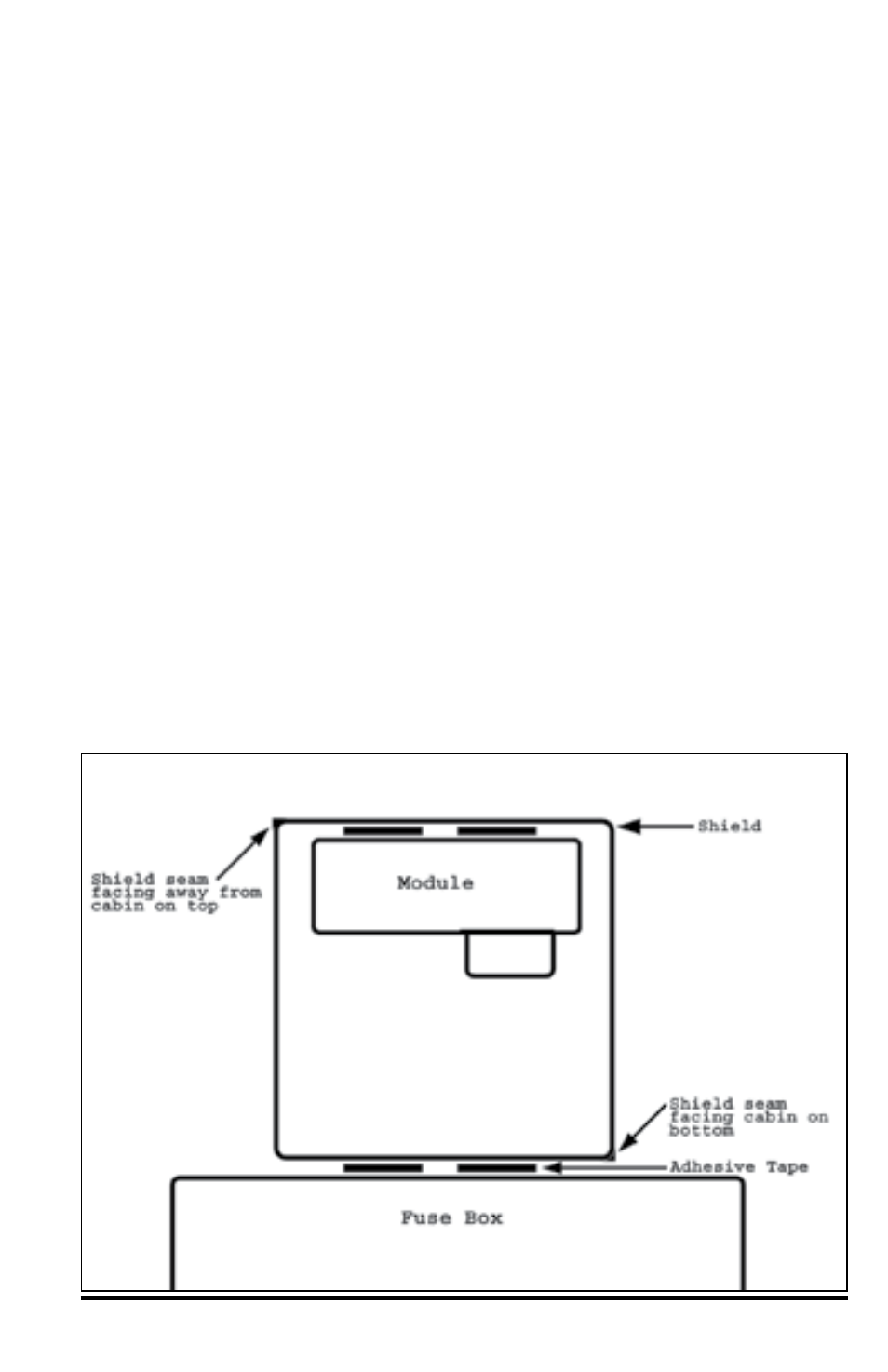

Figure 6: (2005-07 model year vehicles only) Tuner Mounting
NoTE: Be sure that the seam on the
top of the shield is facing away from
the cabin (see Figure 6).
For all models, route the other end of
the ‘crossover cable’ to the vehicle’s
PcM middle connector labeled “c”.
Route the ‘crossover cable’ as directed
below:
2003-04 model year vehicles: Route
the ‘crossover cable’ under the power
steering fluid reservoir.
2005-07 model year vehicles: Route the
‘crossover cable’ to the PcM in the
most direct path possible.
11.
All Years: Plug the ‘crossover
cable’ into the vehicle’s PcM middle
connector labeled “c”.
12.
Unplug the Manifold Absolute
Pressure (MAP) sensor connector
shown in Figure 7. The MAP connector
can be unplugged by sliding the red
safety slide down, pressing the locking
button, then pulling on the connector.
13.
Plug the Six-Gun/EconoMind
MAP connector into the MAP sensor.
Plug the factory MAP connector into
the Six-Gun/EconoMind MAP wiring
harness. Route the harness from the
Six-Gun/EconoMind to the MAP sensor
as shown in Figure 8. Use the supplied
zip ties to secure the MAP harness
to the factory harness. Failure to
follow the recommended harness
routing may result in a melted
harness.
14.
Route the Six-Gun/EconoMind
‘In-cab cable’ through the firewall to
the passenger compartment. When
passing through the firewall, either
make a hole in a factory grommet or
drill a hole and use a new grommet.
If drilling, check the backside to make
sure there are no components that
may be damaged by drilling.
15.
Remove the lower driver side
interior panel that allows access to the
fuse box.
