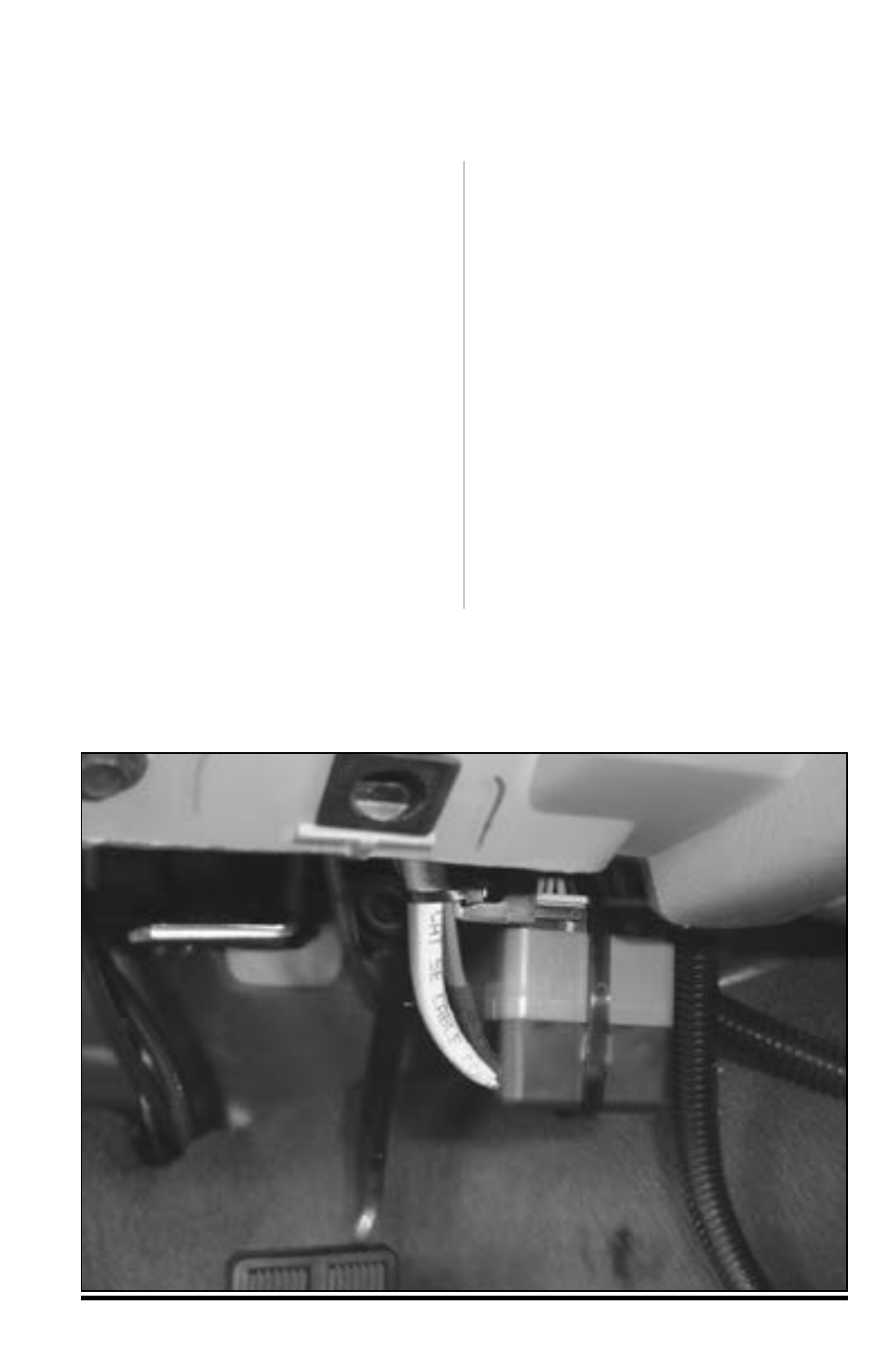

Figure 9: oBDII interface cable
16.
From inside the vehicle, continue
to pull the cable through the firewall
until it is approximately 22” inside the
cab. Secure the cable to the lower
access panel area. Take precaution to
leave the three connectors accessible
for usage further in the installation
process.
If only installing Banks Six-Gun/
EconoMind continue to step 17.
If Banks Brake is being installed, skip
to step 20.
17.
Locate the ‘OBDII Interface
cable’ in your kit. connect the ‘OBDII
Interface cable’ to the vehicle OBDII
connector. Use the large cable tie
in your kit as shown in Figure 9 to
secure the ‘OBDII Interface cable’ to
the vehicle OBDII connector. Now,
connect the 8-pin connector from the
‘OBDII Interface cable’ to the 8-pin
connector on the Six-Gun/EconoMind
‘In-cab cable.’ Note: If you are not
installing the optional Banks iQ then
coil up and secure cable with the RJ12
(telephone style) connector end.
18.
Remove the fuse box cover,
located in the cabin compartment.
Locate the mini-fuse #22 and remove.
Install the mini-auto blade fuse tap
onto the removed mini fuse as shown
in Figure 10. Re-install the mini fuse
with the attached blade tap into
location #22 as shown in Figure 11.
19.
Locate the RED single terminal
connector on the ‘OBDII Interface
cable’ and connect it to the mini-fuse
blade tap location #22. Replace the
fuse cover and make sure not to pinch
the RED single terminal wire.
