38
96507 v.4.0
Not needed if the optional Banks
PowerPDA is installed.
CAUTION: Do not use force
when working on plastic parts.
Permanent damage to the part
may result.
Note: Before drilling, confirm that
there is adequate room for the Switch
and wires behind the dash. Make sure
wires or obstructions are cleared from
the drilling area.
From where the EconoMind Switch will
be located, make sure there is enough
wire on the In-Cab Cable to reach the
Switch.
1.
The EconoMind Switch can be
installed on the driver’s side of the
instrument panel (IP) to the left side
of the steering column. There are two
dash types: Dash 1 (Figures 29, 30)
and Dash 2 (Figures 31, 32).
Note: These are just suggested
locations. It is possible to locate the
EconoMind Switch where it is more
comfortable. Please confirm space
behind dash before drilling.
2.
To install on the driver’s side IP
(Dash 1, Figure 29):
Pull the IP trim out by pulling the top
edge above the vent as shown in
Figure 33. Disconnect any switch
wires.
3.
Cut out the supplied template,
Figure 16, and align the dashed lines
to the edge of the IP where you would
like to mount the Switch. Tape the
template in place. continue to Step 7.
4.
To install the Switch to the left side
of the steering column (Dash 2 Figure
32):
Remove the fuse access panel shown
in Figure 26. Remove the lower
knee bolster panel by removing the
Section 6
INSTALLATION OF THE (OPTIONAL) ECONOMIND SELECTOR SWITCH

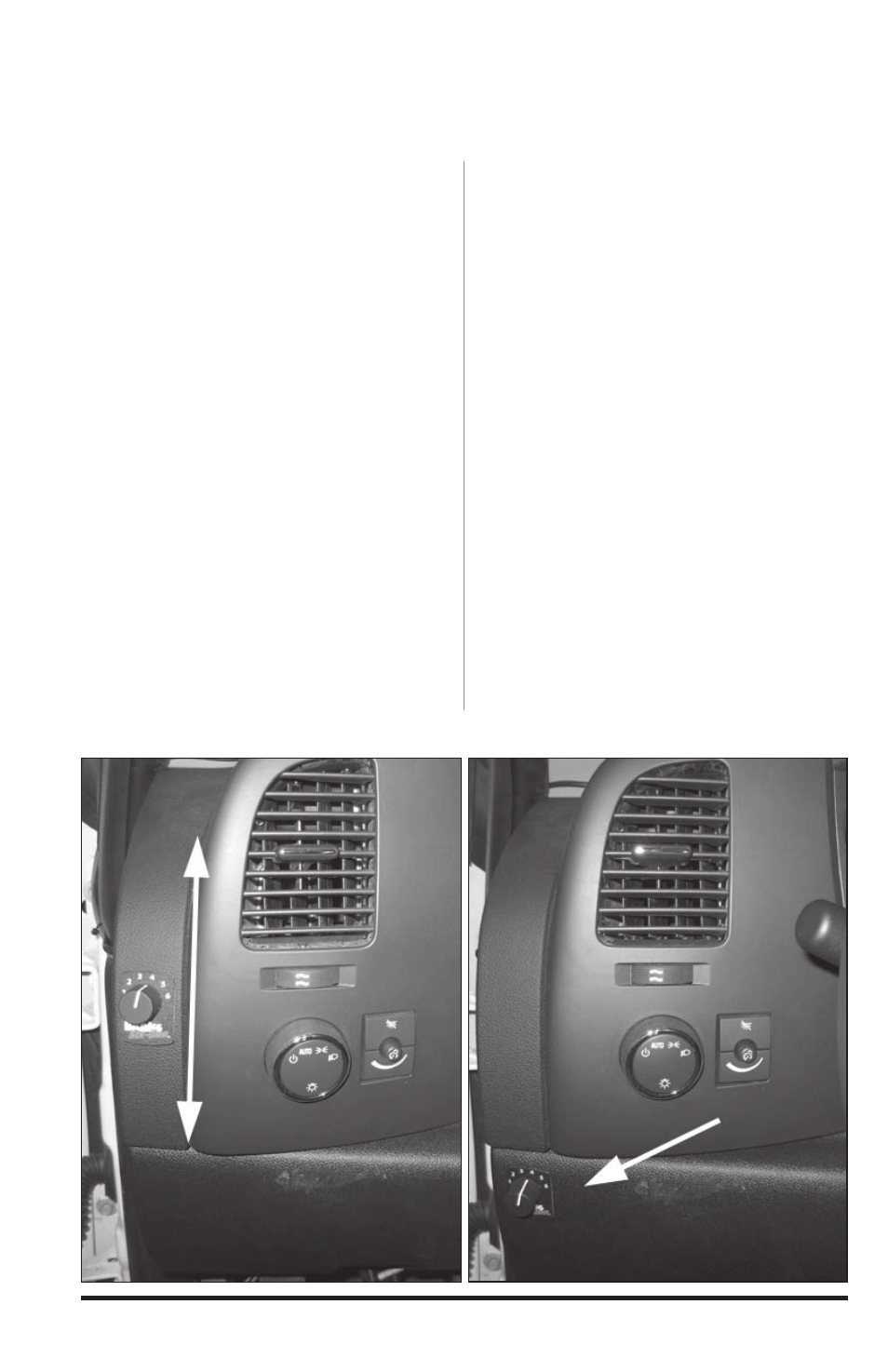

Figure 29 Figure 30
