If not installing the optional Banks
PowerPDA, skip to Section 25.
1.
Locate the universal mount and
docking station in your kit. Interlock
the docking station to the universal
mount by inserting and sliding the
universal mount tabs into the docking
station grooves. See Figure 25.
2.
Install the Banks PowerPDA into
the docking station. Be sure the
PowerPDA is completely seated in
the docking station against the lower
support bracket.
Note: There may be a snug fit when
installing the PowerPDA into the
docking station. Take care not to force
this process.
3.
Find a smooth, flat surface suitable
for ease of access and viewing of
the PowerPDA. See Figure 26 for an
example. Loosen both knobs and move
the swivel suction plate and docking
station to achieve desired viewing
angle of the PowerPDA screen. Do a
test fit and note the angle necessary
to achieve the correct viewing angle.
4.
Tighten both knobs to lock in the
position (Figure 25).
Note: If the universal mount swivel
does not move or is tight after
loosening the hold down knob, then
remove the previously inserted
docking station and slightly loosen the
tension screw. See Figure 27.
5.
With the alcohol swab from your
kit, clean the suction cup and the
mounting area and let dry. With the
suction lever in the up position ensure
the suction cup is flat against the
windshield or smooth, flat surface.
Then, push the suction lever down to
secure in place.
6.
Find the Banks OBD II Interface
Cable in your kit. Connect the Banks
Interface Cable to the vehicle’s OBD II
connector. Use a cable tie as shown
in Figure 28 to secure the Banks
Interface Cable to the vehicle’s OBD II
connector.
Section 5
MOUNTING THE (OPTIONAL) DOCkING STATION AND
CONNECTING THE BANkS POWERPDA

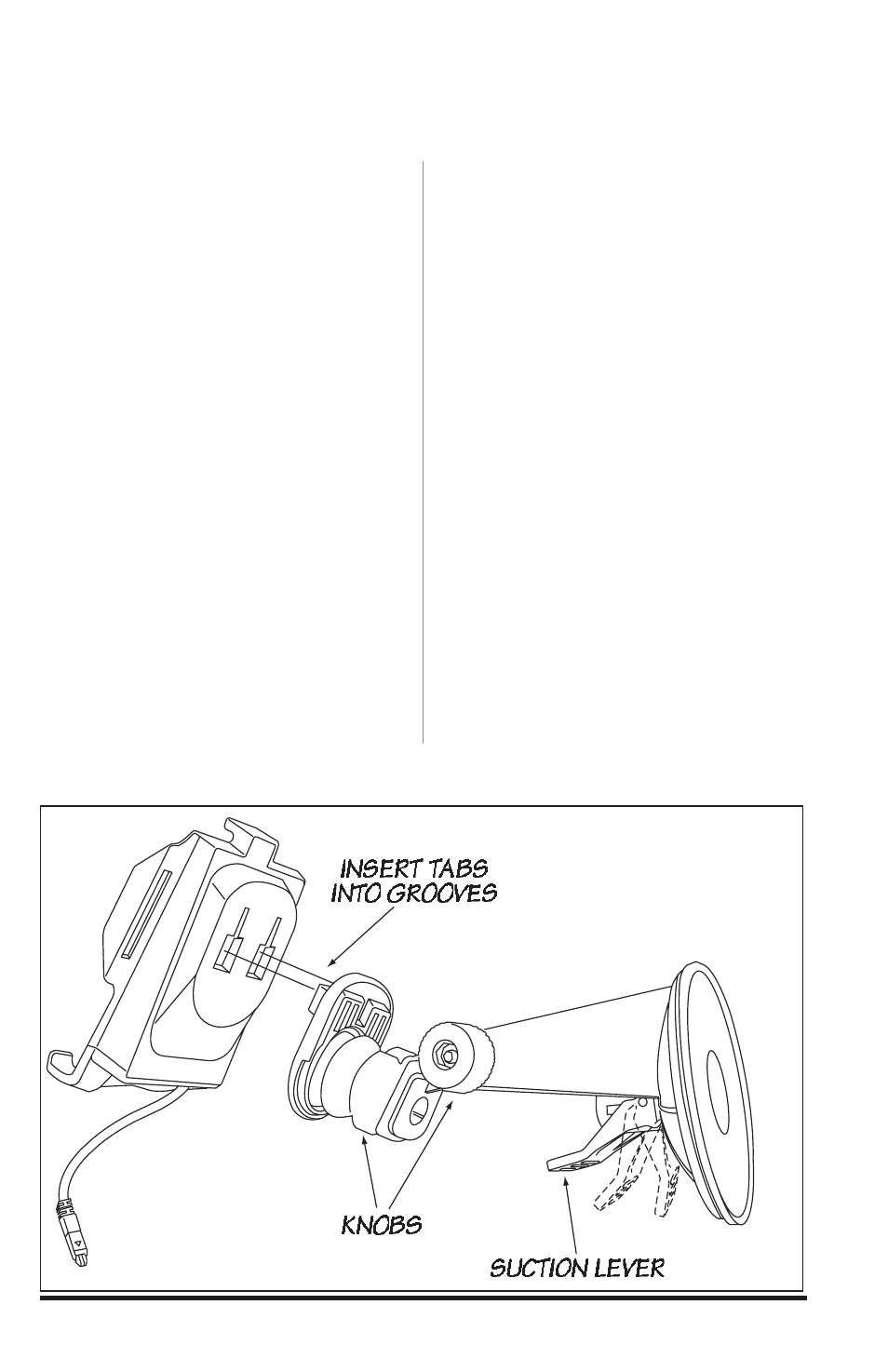

Figure 25
CHARGING
CABLE
