9.
Guide the RJ12 cable through the
clearance between the removed panel
and the dash as shown in Figure 14.
10.
Looking at the back of the dash
panel, locate the screw for the dash
plate as shown in Figure 15. This
panel may be blank, or contain the
airbag deactivation switch. Remove
the screw and the plate.
11.
Route the RJ12 cable through
the opening and connect it to the left
most receptacle on the bottom of
the docking station. Replace the dash
plate and screw (Figure 16).
Warning: The charging cable on
the docking station is designed
to supply a constant low-voltage
power source (+5VDC) to the Banks
PowerPDA and is “live” as long
as the system’s oBD II interface
cable is completely installed and
the rJ12 connector is plugged into
the docking station. Although this
charging cable is short and its
circuitry is fuse-protected, the user
is expected to take appropriate
measures to prevent small children
and/or pets from contact with any
part of this system.
12.
Refit the dash panel and knee
panel by carefully snapping them back
into place. Tuck any excess cable
behind it for a clean appearance.
13.
your docking station is now
installed and is ready for the
Banks PowerPDA. Install the Banks
PowerPDA into the docking station.
Be sure the Banks PowerPDA is
completely seated in the docking
station against the lower support
bracket.
Note: There may be a snug fit when
installing the Banks PowerPDA into the
docking station. Take care not to force
this process.
14.
Plug the docking station’s
charging cable into the charging
receptacle on the lower edge of the
Banks PowerPDA.
-(Dodge 03-05) Skip to Section 4
ForD (’03-04):
15.
Locate the self-drilling screw
supplied in your kit.
16.
Install the screw through the
large access hole in the bottom of the
docking station. Doing this will put a

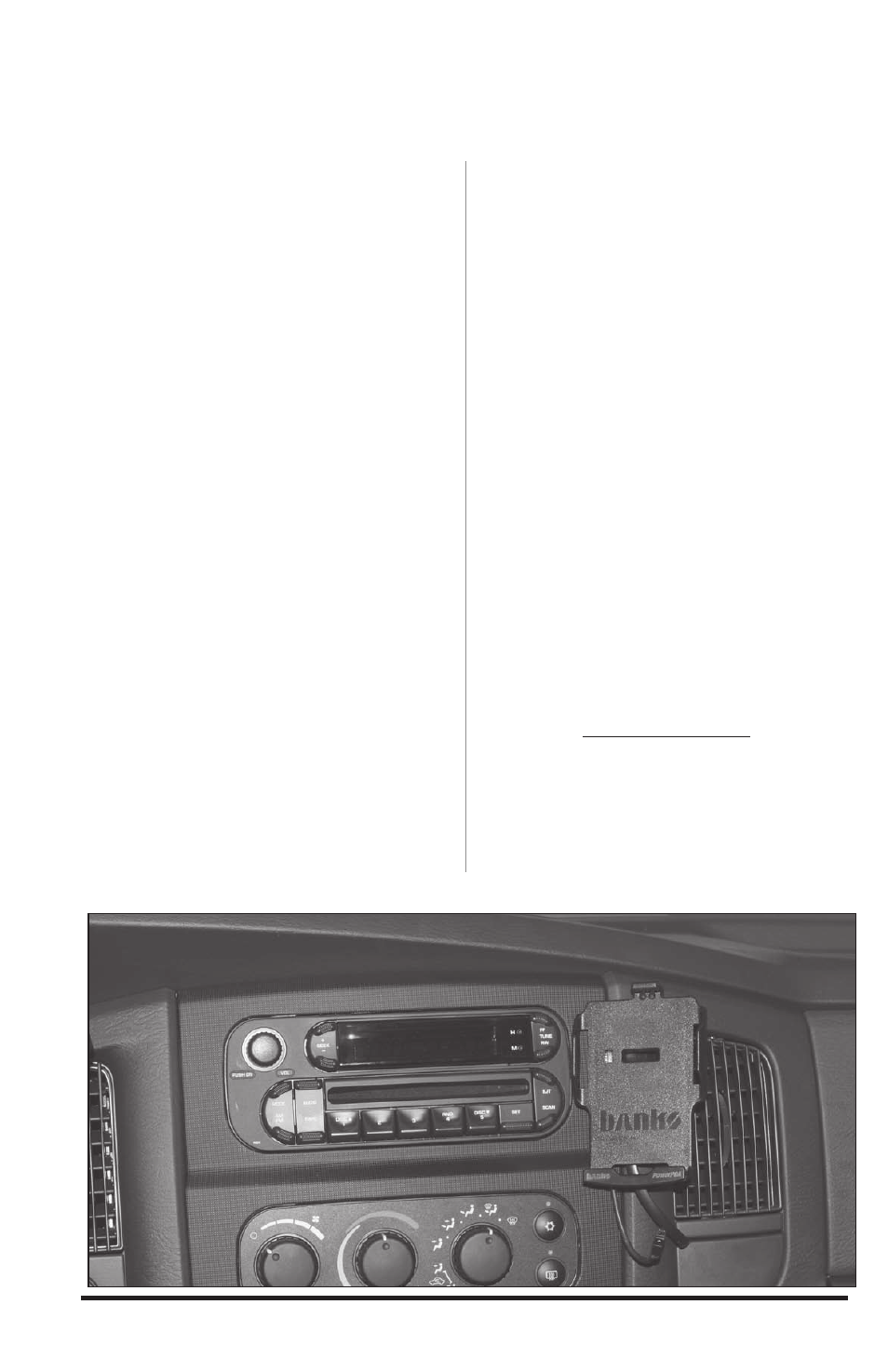

Figure 10 Dodge (‘03-’05)
