Banks Power Ford Trucks: (Diesel ’03 - 07 6.0L Power Stroke) Interface- PowerPDA For use with EconoMind Ford (03-09), Chevy(01-08), Dodge (03-07) - Manual (Page 16)

suitable for ease of access and viewing
of the PowerPDA. Loosen both knobs
and move the swivel suction plate and
docking station to achieve desired
viewing angle of the PowerPDA
screen. Do a test fit and note the
angle necessary to achieve the correct
viewing angle.
Note: There may be a snug fit when
installing the PowerPDA into the
docking station. Take care not to force
this process.
33.
Tighten both knobs to lock in the
position (Figure 23).
Note: If the universal mount swivel
does not move or is tight after
loosening the hold down knob, then
remove the previously inserted
docking station and slightly loosen the
tension screw. See Figure 24.
34.
Locate the alcohol swab in the
kit. clean the suction cup and the
mounting area and let dry. With the
suction lever in the up position ensure
the suction cup is flat against the
windshield or smooth, flat surface.
Then, push the suction lever down to
secure in place.
35.
connect the cab Harness
connector to the PDA cable. Plug the
RJ12 connector (phone like connector
at one end of the PDA cable) into one
of the receptacles in the base of the
PDA docking station.
36.
Install the Banks PowerPDA
into the docking station. Be sure the
PowerPDA is completely seated in
the docking station against the lower
support bracket.
Note: There may be a snug fit when
installing the PowerPDA into the
docking station. Take care not to force
this process.
37.
Plug the docking station’s
charging cable (seen in Figure 23)
into the charging receptacle on the
lower edge of the PowerPDA. Attach
the PDA hub to a smooth, flat surface
suitable for ease of access and
viewing.
WArNING: The charging cable on
the docking station is designed
to supply a constant low-voltage
power source (+5vdc) to the
Banks PowerPDA and is “live” as
long as the system’s Diagnostic
Port Cable is completely installed
16
96803 v.7.0

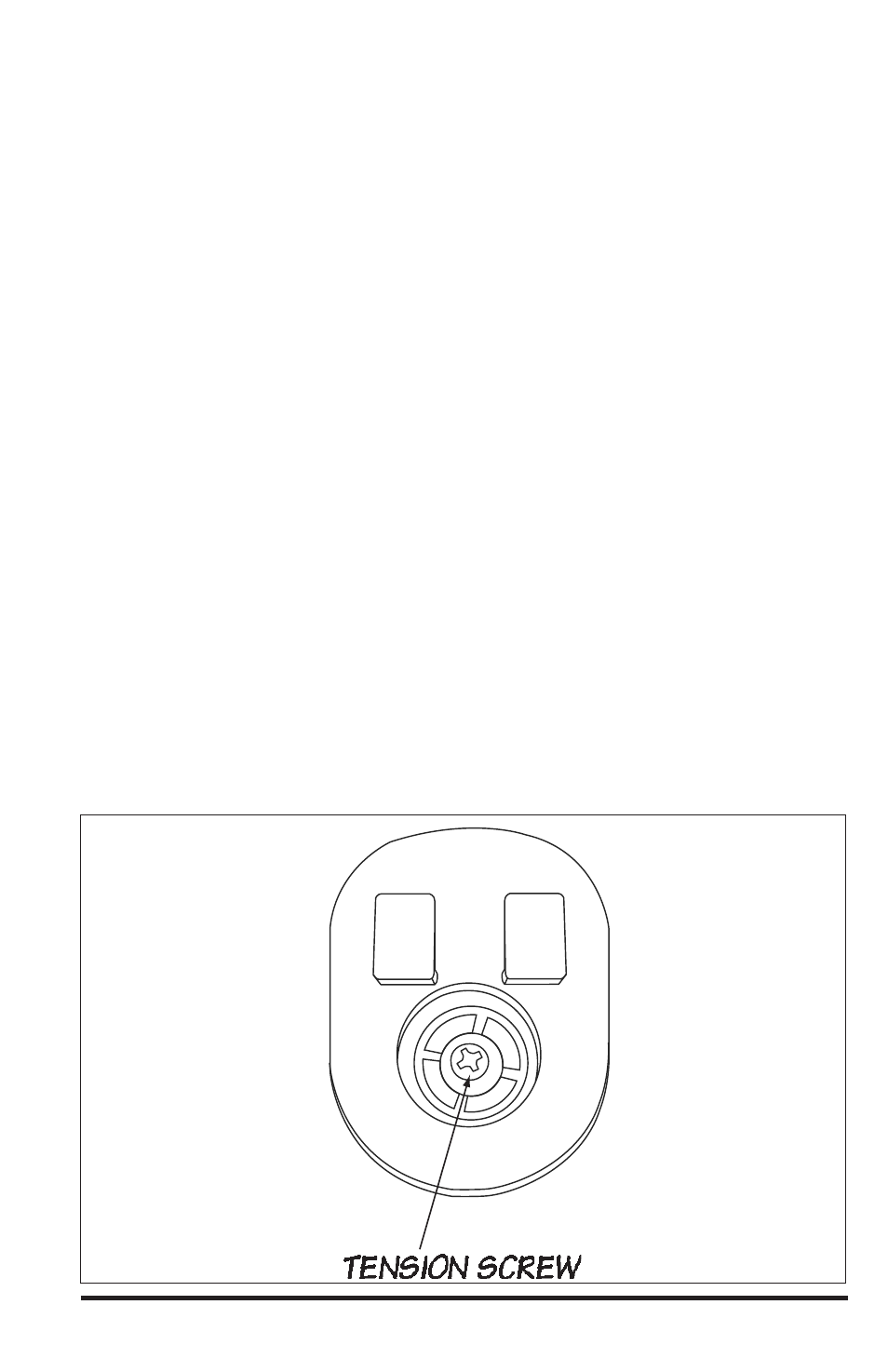

Figure 24
