After choosing the desired
Performance Test the Banks
PowerPDA will acknowledge by
displaying “Performance Test Armed”
in the Status Window on the System
Monitor screen (Figure 45).
Banks PowerPDA will begin the
Performance Test once it detects
motion of the vehicle. The Banks
PowerPDA will monitor the elapsed
event until the pre-selected distance
or speed is reached. Upon completion
of the selected Performance Test, the
Banks PowerPDA will automatically
display a “results” screen, which
includes elapsed time/distance
parameters along with a graph of
EGT/Boost/MPH for the run. Each
completed Performance Test will be
saved for future analysis.
Viewing Saved Performance Tests
4.
To view a previously completed
Performance Test touch the button
labeled ‘Recall Saved’. See Figure 44.
5.
Use the Up and Down buttons to
select the Performance Test you want
to review (Figure 46).
6.
Touch the button labeled ‘Open’, to
view in detail the results of the saved
Performance Test.
Use the’ ’ buttons
to move the curser one frame at a
time in the displayed graph area.
Moving between the frames will
automatically update the displayed
parameter values (Figure 47).
7.
Press ‘Done’ when finished.
8.
For further information touch
the button labeled ‘Help’ on the
Performance Tests screen.
9.
Touch the button labeled ‘Back’ to
return to the System Monitor screen.
Deleting Saved Performance Tests
10.
To delete a previously saved
Performance Test, highlight the saved
test you wish to delete and touch the
button labeled ‘Delete’.
11.
A pop up window labeled
‘confirm Delete’ will ask you to
confirm the deletion of the test
(Figure 48).
12.
Touch the button labeled ‘yes’ to
confirm or ‘No’ to decline.
-END SEcTION 12-

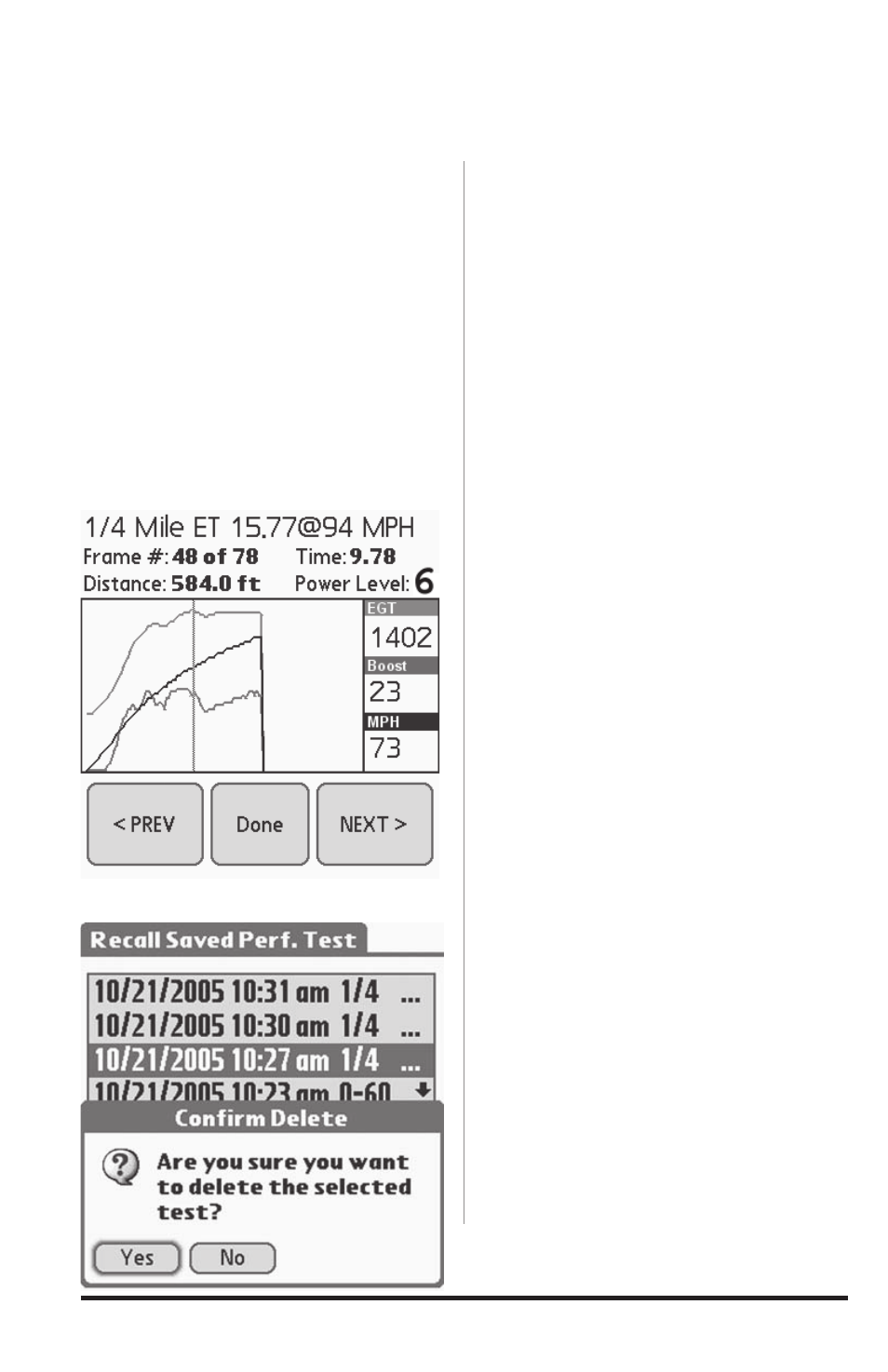

Figure 47
Figure 48
