20.
connect the RJ12 cable to the
left-most receptacle on the bottom of
the docking station.
Warning: The charging cable on
the docking station is designed
to supply a constant low-voltage
power source (+5VDC) to the Banks
PowerPDA and is “live” as long
as the system’s oBD II interface
cable is completely installed and
the rJ12 connector is plugged into
the docking station. Although this
charging cable is short and its
circuitry is fuse-protected, the user
is expected to take appropriate
measures to prevent small children
and/or pets from contact with any
part of this system.
21.
Refit the dash panel by carefully
snapping it back into place. Refit
the fuse access panel using the four
fasteners removed earlier. Tuck any
excess cable behind the panels for a
clean appearance.
96803 v.7.0
13

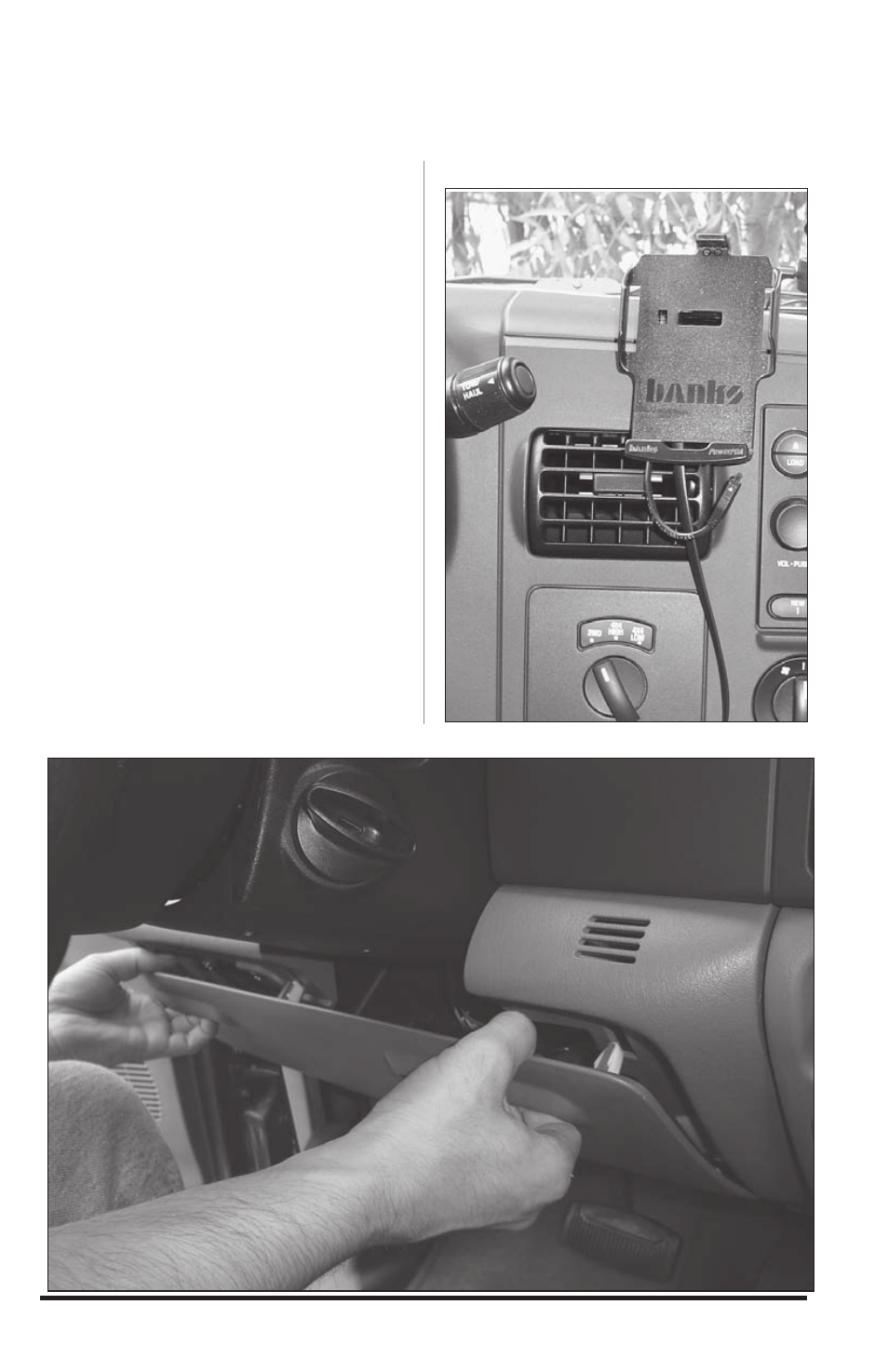

Figure 20 Ford (’05-’07)
Figure 21 Ford (’05-’07)
