25.
Place the Six-Gun module into
the mounting bracket and index it for
optimum viewing from the driver’s seat.
Place the supplied mounting hardware
over the module from the back, then
install and tighten the mounting nuts.
26.
Route the six-pin connector
from the Six-Gun harness, the ten-pin
connector from the power harness,
and the two-pin connector from the
pyrometer (if so equipped) to the back
of the Six-Gun module and plug them in,
making sure that the locking connector
catches engage fully.
27.
If using a module mounting
method other than the supplied bracket,
complete the mount installation per
the supplied directions. Double-check
all wire harness routing for proper
clearance around moving and sharp
objects as well as heat sources, then use
the supplied nylon tie straps to secure
the wire harnesses safely away from any
control linkages and the operator’s feet
underneath the dashboard.
28.
Re-attach any previously removed
interior trim panels, re-connect the
negative battery cables and lower the
vehicle. Start the vehicle, checking for
normal engine operation and listening
carefully for exhaust leaks and rattles.
Re-torque any exhaust manifold
fasteners as needed.
29.
Please refer to the following
sections for instructions on how to
operate and troubleshoot your Six-Gun
module.
-END, SEcTION 2-

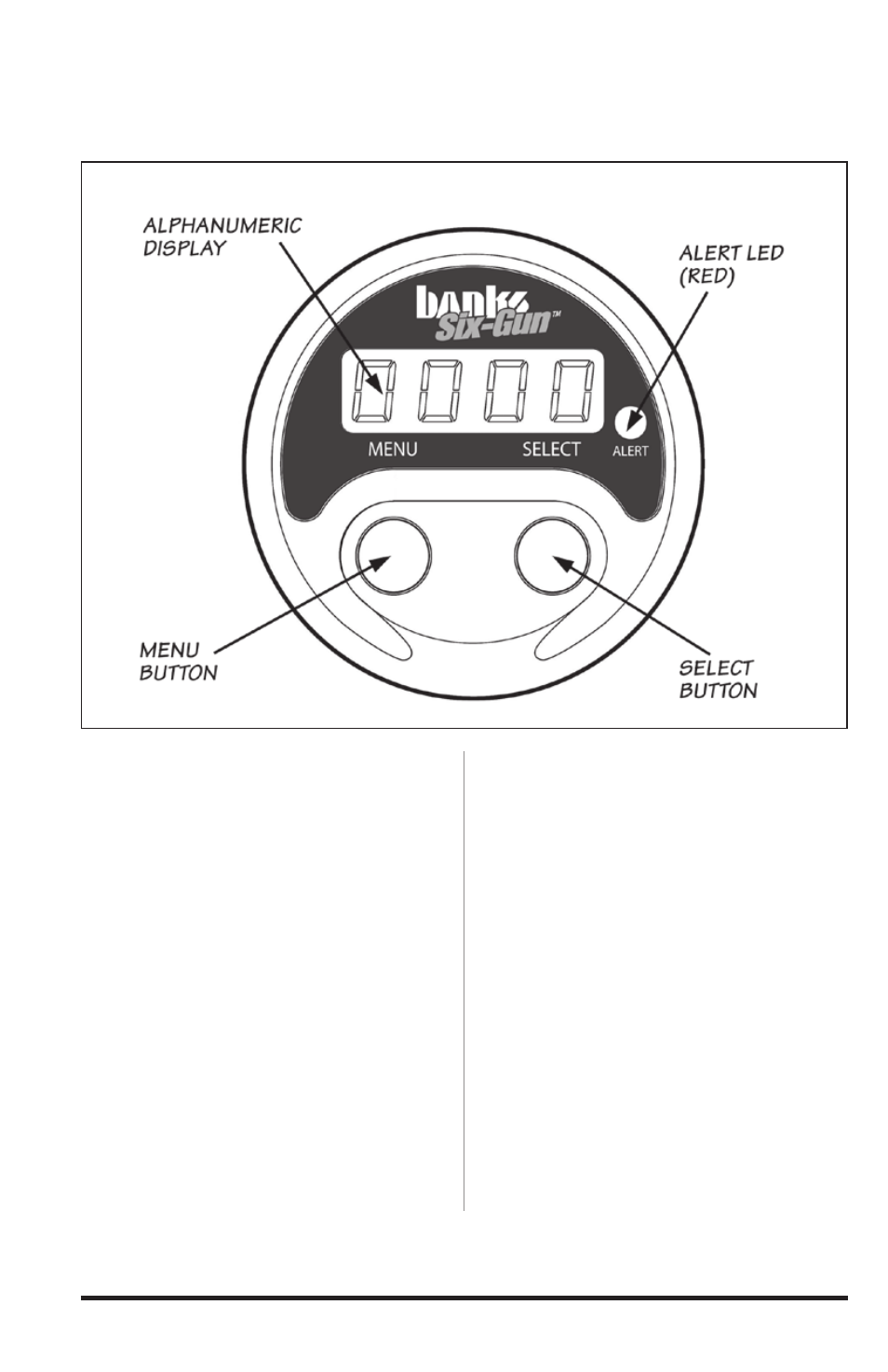

Figure 9: Six-Gun module controls
