Section 2:
INSTALLATION OF WIRING HARNESS, CONNECTIONS AND
SIx-GUN MODULE
10.
Disconnect the battery ground
cables from all of the batteries.
Secure the cables so that they do not
accidentally come in contact with the
battery posts during the installation.
11.
Locate the Manifold Air Pressure
(MAP) sensor on the passenger side
of the firewall, as shown in Figure 3.
Unplug the stock harness connector
from the MAP sensor by sliding the
red safety slide down, depressing the
locking catch, and pulling down on the
connector.
12.
Plug the Six-Gun MAP connector
into the MAP sensor, then plug the
factory MAP connector into the Six-Gun
MAP wiring harness. Double-check that
both connectors have locked securely.
NotE: If there is any type of MAP/Boost
sensor voltage limiting device installed on
the vehicle (a zener diode or similar item),
remove it at this time, as it can create
input errors on the Six-Gun module.
13.
Route the Six-Gun wiring harness
along the factory wiring harness from
the MAP sensor to the firewall. Route
the remaining length of the Six-Gun
wiring harness as shown in Figure 4,
following the factory wiring harness
along the firewall and through the metal
retaining loop at the driver side. With the
exception of the short harness for the
Injection control Pressure (IcP) sensor,
tuck the Six-Gun wiring harness up into
the factory plastic wiring tray and secure
it with the supplied zip ties.
14.
Locate the IcP sensor behind the
alternator (or Ac compressor on older
models) at the front driver side corner
of the engine, as shown in Figure 5.
Route the Six-Gun harness for the ICP
sensor as shown previously in Figure
4, running it over the compressor inlet
tube, under the compressor outlet tube,
then down to the IcP sensor.
15.
Unplug the stock harness connector
from the IcP sensor by lifting the
connector catch and pulling up on
the connector. Plug the Six-Gun ICP
connector into the IcP sensor, then
plug the factory IcP connector into the

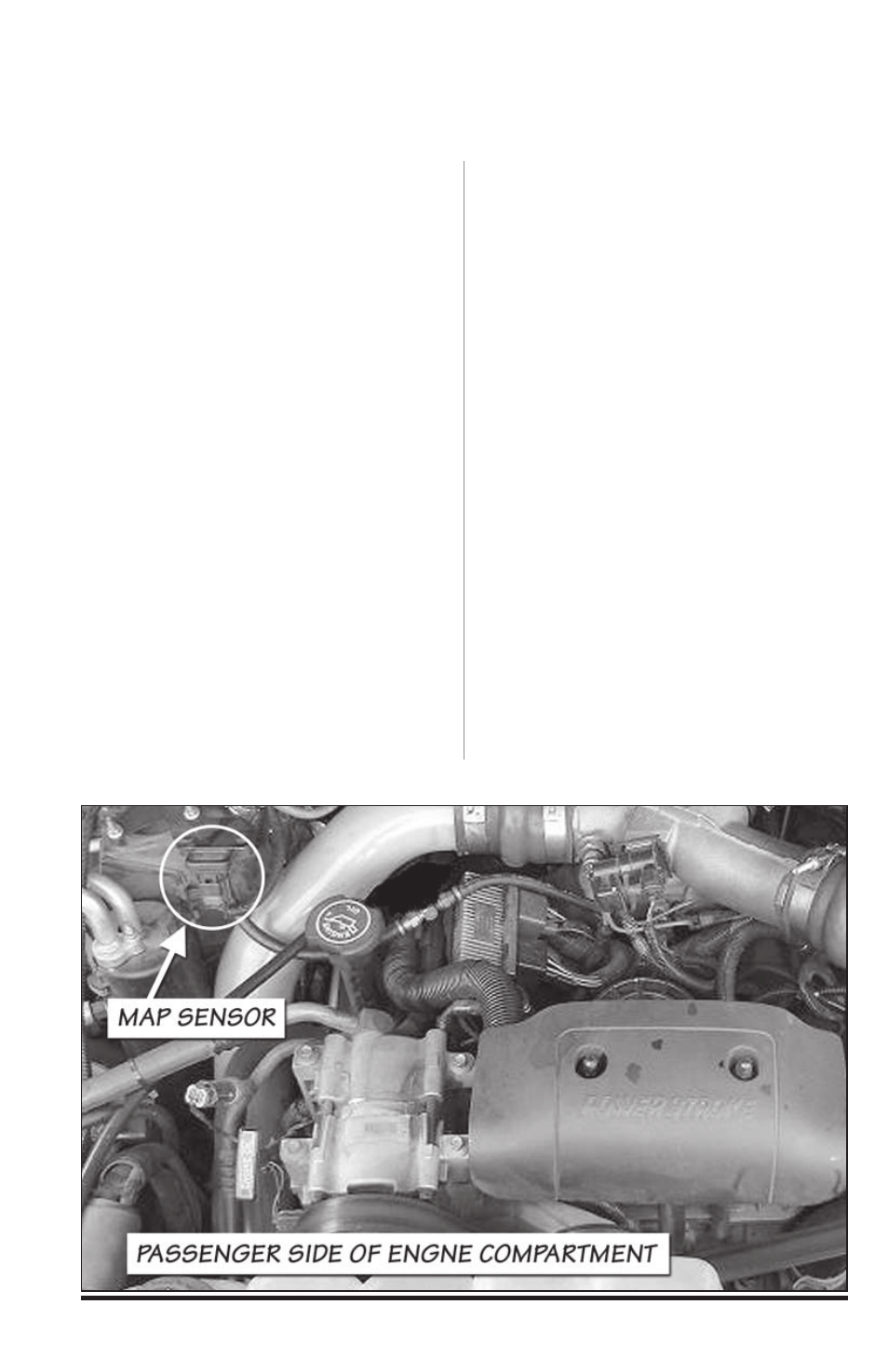

Figure 3: MAP sensor location
