96454 v.9.0
15
in the previous step. Route the red (RED)
wire out through the bottom of the fuse
box and reinstall the fuse box cover.
(It may be necessary to bend the fuse
tap/connector and route the wire around
several fuse box components to allow
clearance for the fuse box cover to snap
back into place.)
NotE: Make sure the Six-Gun
harness’s inline fuse holder is routed
outside the factory fuse box.
22.
Using a 3 ⁄
16
” socket or wrench,
remove the lower left fuse block
mounting bolt shown in Figure 8.
Attach the ring terminal of the black
(BLK) wire from the power harness to
this point, reusing the stock bolt.
NotE: If you will be mounting the Six-
Gun module using anything other than
the supplied bracket, please refer to the
mounting instructions that accompanied
your chosen gauge mount, and skip to
step 25. Molded A-Pillar and dashboard
mounts, as well as additional digital
gauges are available though Gale Banks
Engineering.
23.
If you will be using the supplied
mounting bracket, choose a mounting
location that is easily viewed and
accessed from the driver’s seat. Hold
the bracket in place and mark through
the middle of each mounting slot, then
remove the bracket. check behind the
target hole locations to make sure that
there are no components nearby that
could be damaged by drilling, then drill
both mounting holes using a 3 ⁄
16
” drill
bit.
24.
Install the bracket using the
supplied mounting hardware and tighten
finger-tight. After double-checking
bracket position and alignment, tighten
down the mounting hardware using a
Phillips screwdriver and 3 ⁄
8
” wrench or
socket.

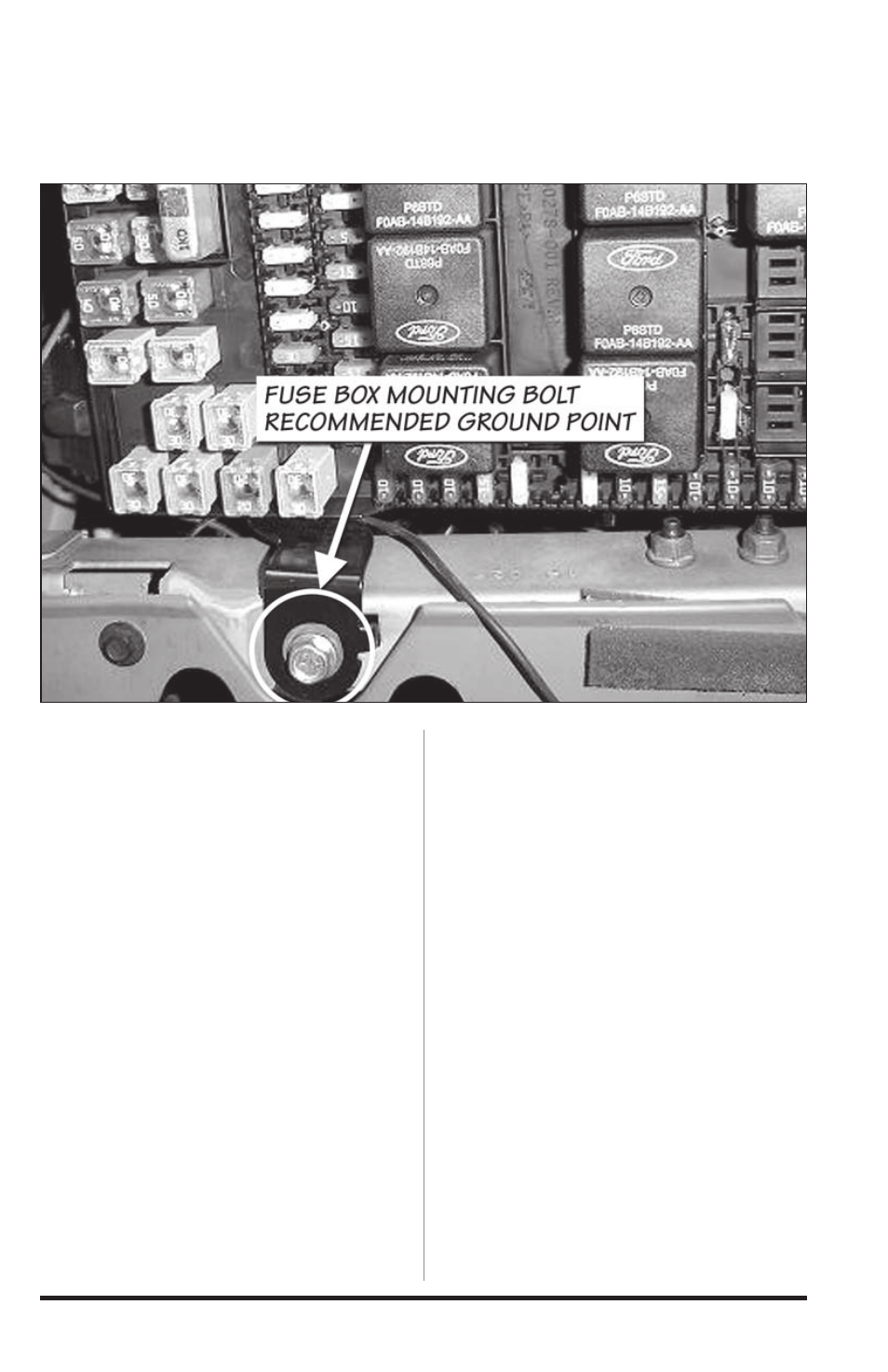

Figure 8: Recommended ground wire attachment point
