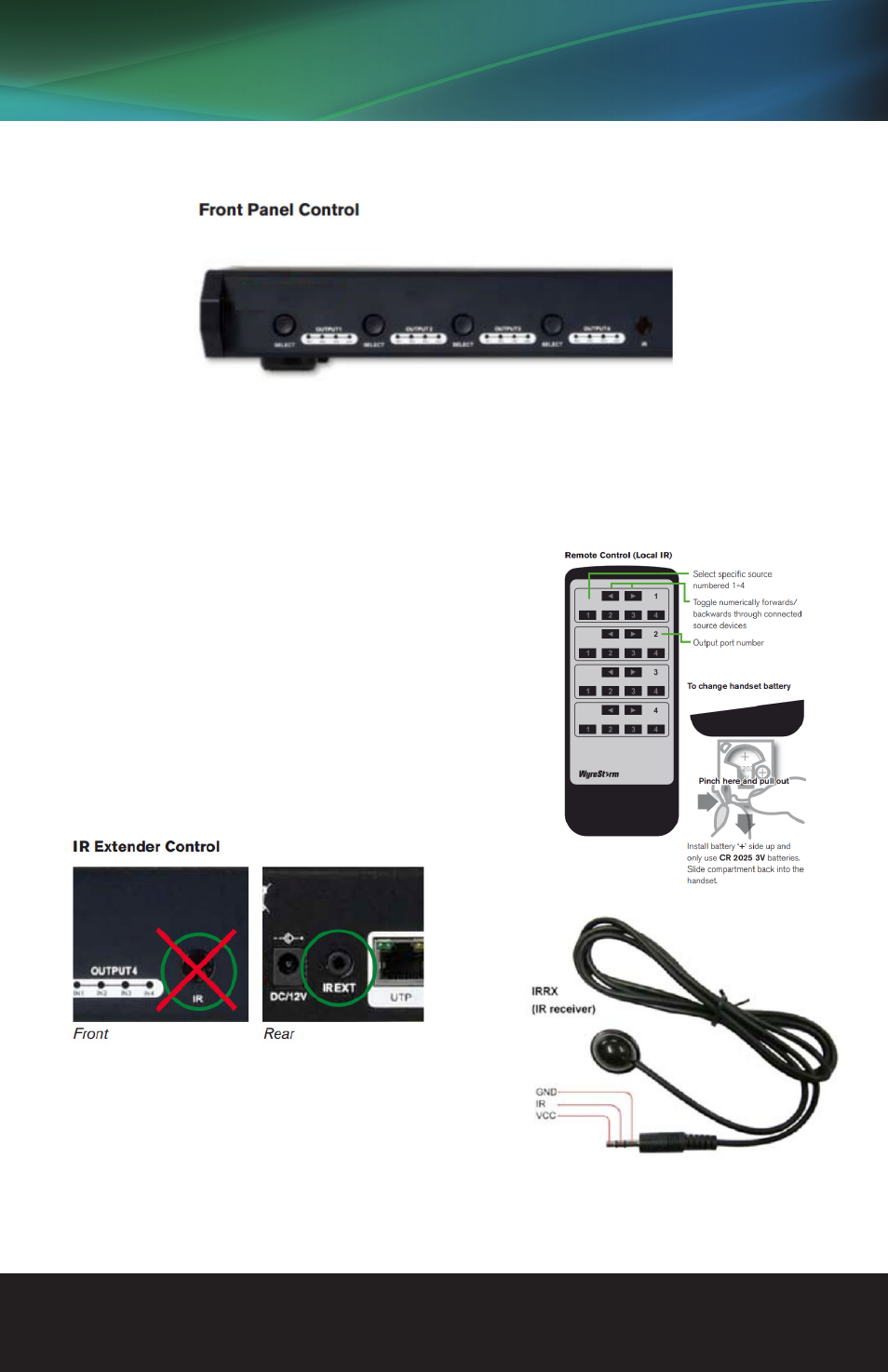

BASIC OPERATION
Basic switching of various source inputs to output displays can be achieved via the front panel control of the
VPW-280754. Outputs are numbered 1 – 4 with an input select button to the left. Repeated pressing of
the select button of a specific output scrolls numerically through the HDMI input devices connected to the
matrix, with the corresponding LEDs illustrating when a device has been selected for that particular output.
The chosen input will automatically store for the output so, even when the matrix is powered off and on, on
resumption the last selected input/output combination will remain.
The same basic switching functions can also be accessed via the
remote control.
Operation of the handset is the same regardless of location –
locally (source/IR emitter) or remotely (display/IR receiver).
Simply toggle through the input sources connected to the
matrix by either pressing the left/right arrow buttons or buttons
numbered 1 – 4 for each output.
Should local control of the Matrix via the front panel IR sensor
be an issue, for example if the sensor is obstructed or the unit
is installed in a closed area out of infrared line of sight, the IR
RX Receiver included can be inserted into the IR EXT port at
the rear to extend the IR sensor range and enable local control
of the matrix. Make sure the receiver itself is located with a
clear line of sight to the remote handset controlling it.
