LPTDX626 VELLEMAN 3

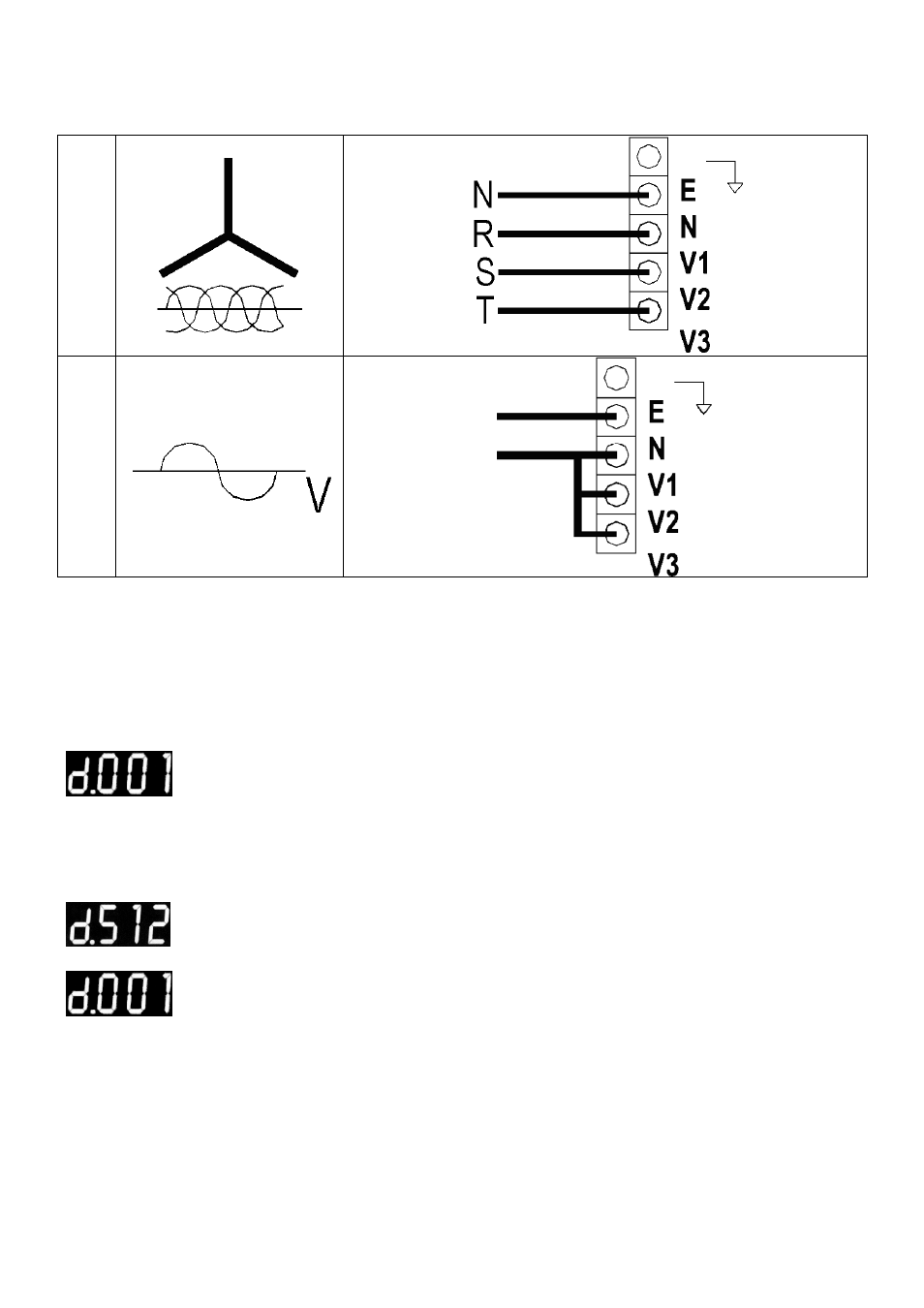

5. Wiring Diagram
1.
2.
1. 3 phases – 4 wires
2. Single phase – 2 wires
6. Operation
a. Standard DMX512 Signal
b. Setting the DMX Start Address
Press [▲] or [▼] while holding [DMX] to find the start address.
[▲]: move 1 number forward up to channel 512.
[▼]: move 1 number backward down to channel 1.
REMARK: The LPTDX626 is a 6-channel dimmer pack. When setting the unit as
- d.001: the output is from channel 1 → channel 6
- d.007: the output is from channel 7 → channel 12
It is allowed to assign more than 1 LPTDX626 to the same start address.
