CTC1000DS

V. 01 – 12/06/2013

7

©Velleman nv

The magnet must align with the marked side of the door

contact as shown in figure.

o

The magnet should not be more than 15 mm from the detector

when the door is closed.

o

Ensure the tamper switch spring is positioned so that it makes

contact with the mounting surface through the tamper switch

aperture.

o

Windows can be protected similar to door installations. When

fitting to a window fix the magnet to the moving window part

and the door switch to the stationary frame.

5. Put the control panel into Walk Test mode, and press the test

button on the door contact.

The LED indicator will now flash every time the door contact is
operated.

6. Fit the white caps to the two mounting holes of the door contact.

7. Installation is finished.
7.4

Mounting the door/window contact with the extension

terminal

The door contact has an extension terminal providing enhanced
installation flexibility. The extension terminal may be useful for the

following:
 If the door contact cannot be

mounted on the door frame, you

can connect an additional
(extension magnet switch) to

the (Extension Terminal)
mounting the door contact
remotely.

 More than one window and door

can be protected by a door
contact using the additional

magnet and extension magnet

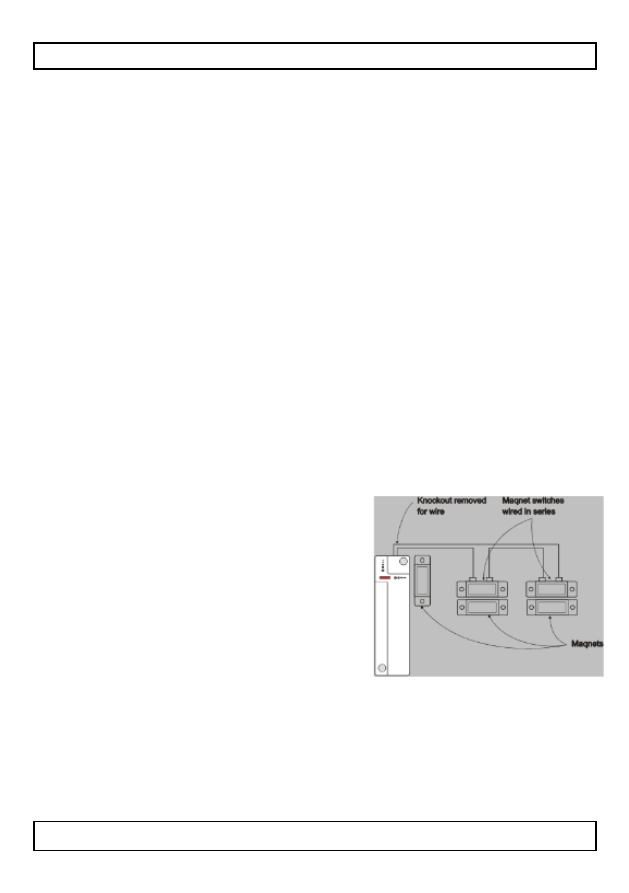

switch. The switches must be
wired to the (Extension Terminal) as shown:

 Any dry contact device with N.C. (normally closed), such as a

broken glass detector, gas detector, water sensor etc, can be

connected to the (extension terminal) making the door contact
serve as an (universal transmitter).
