13
Instrument Cluster. Critical operating
information on the 777F is relayed
via the Cat Data Link to five gauges,
18 LED indicator lights, and an
LCD digital display.
Cat Messenger. Standard on the 777F,
Cat Messenger provides real-time
machine performance and operating
data, and basic trip, maintenance, and
diagnostic data using an LCD display.
The viewable LCD screen area of the
Messenger display is 22.5 mm
ן
84.6 mm (0.89 in ן 3.33 in).
Truck Production Management System
(TPMS) (optional). TPMS provides
valuable payload and cycle time data
to improve productivity.
• Uses strut pressure sensors and
on-board microprocessor to
determine payload weight.
• Delivers consistent, accurate
payloads and improves efficiency
by minimizing overloading and
underloading.
• External lights signal loading tool
operator when payload is reached.
• On-board computer stores up to
2,400 cycles for analysis of payload
weight, cycle times, distances, and
actual cycle dates and times.
• A second gear reweigh takes an
additional measurement once the
truck has reached second gear for
improved accuracy.
• System is accurate within ± 5 percent
under normal loading conditions
over a normal shift.
• Standard LED lamps replace
incandescent lamps on the TPMS,
extending lamp life by 25 times.
VIMS™ Monitoring System (optional).
Caterpillar designed machine monitoring
system provides more than 250 machine
parameters, critical machine health and
payload data in real-time to keep the
777F performing at top production levels.
Road Analysis Control (RAC) (optional).
Optional system monitors haul road
conditions by measuring frame rack and
pitch to improve haul-road maintenance,
cycle times, tire life and fuel efficiency.
Product Link (optional). Now available
out of the factory, this system streamlines
diagnostic efforts, downtime, and
maintenance scheduling and costs by
providing a two-way communication
flow of vital machine data and location
information between the dealer and the
customer. Product Link provides updates
on service meter hours, machine
condition, machine location as well as
integrated mapping/route planning.
MineStar™ Ready. MineStar information
management system helps meet the
challenges of the mining industry by
linking the machines in the field with
business and operating systems to ensure
peak performance of mining assets at
the lowest possible cost. These products
deliver customers everything from
real-time machine health information to
GPS-guided production aids. The 777F
is equipped for quick and easy
installation of MineStar information
management system products.

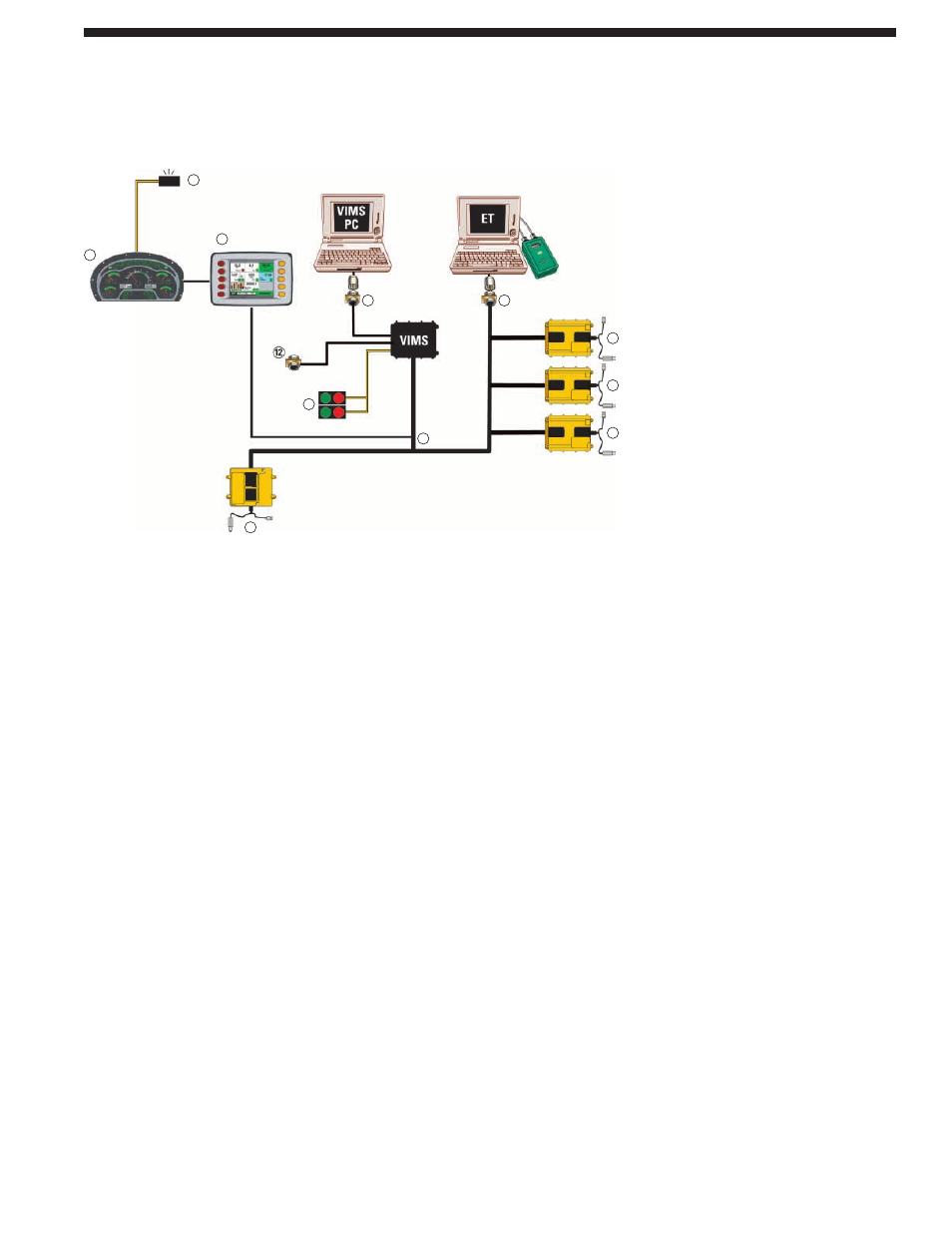

Information & Monitoring Systems
Vital machine health and payload data keeps the 777F performing at peak production levels.
5
4
2
1 Gauge Cluster
2 Advisor Display
3 Action Alarm
4 ADEM A4 Engine Control Module
5 CAT Data Link
6 Payload Lamps
7 Data Port (VIMS-PC)
8 Diagnostic Connector (ET)
9 Road Analysis Control (RAC) Module (optional)
10 Transmission/Chassis Control (TCC) Module
11 Automatic Retarder Control (ARC) and
Traction Control System (TCS)
12 Telemetry Port
9
10
11
8 7
6
1
3
