Document Number: 95379 For technical questions, contact: [email protected] www.vishay.com
Revision: 02-Dec-09 1
Thyristor MAP Block

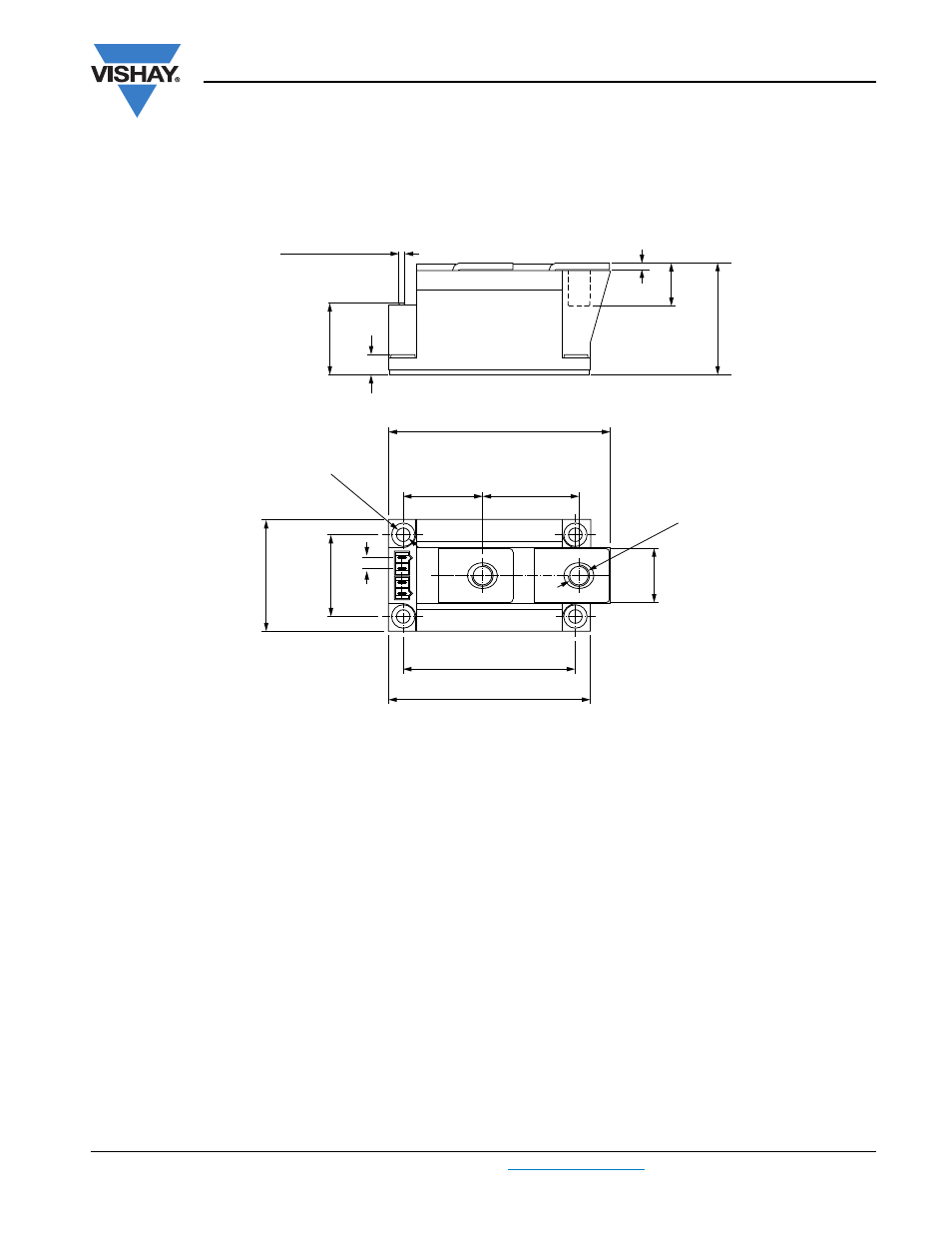

Outline Dimensions
Vishay Semiconductors
DIMENSIONS in millimeters
Notes
• Dimensions are nominal
• Full engineering drawings are available on request
K
G
52
+ 1.5
- 0.0
20
3.0
Fast-on tab 2.8 x 0.8
33 ± 0.5
9.5 ± 0.5
5
51.5 ± 0.3 38 ± 0.3
36.8 ± 0.15 44.7 ± 0.15
102.8 ± 0.3
Ø 6.3
80 ± 0.3
25
M10
93.5 ± 0.3
K A
5
4
6
7
