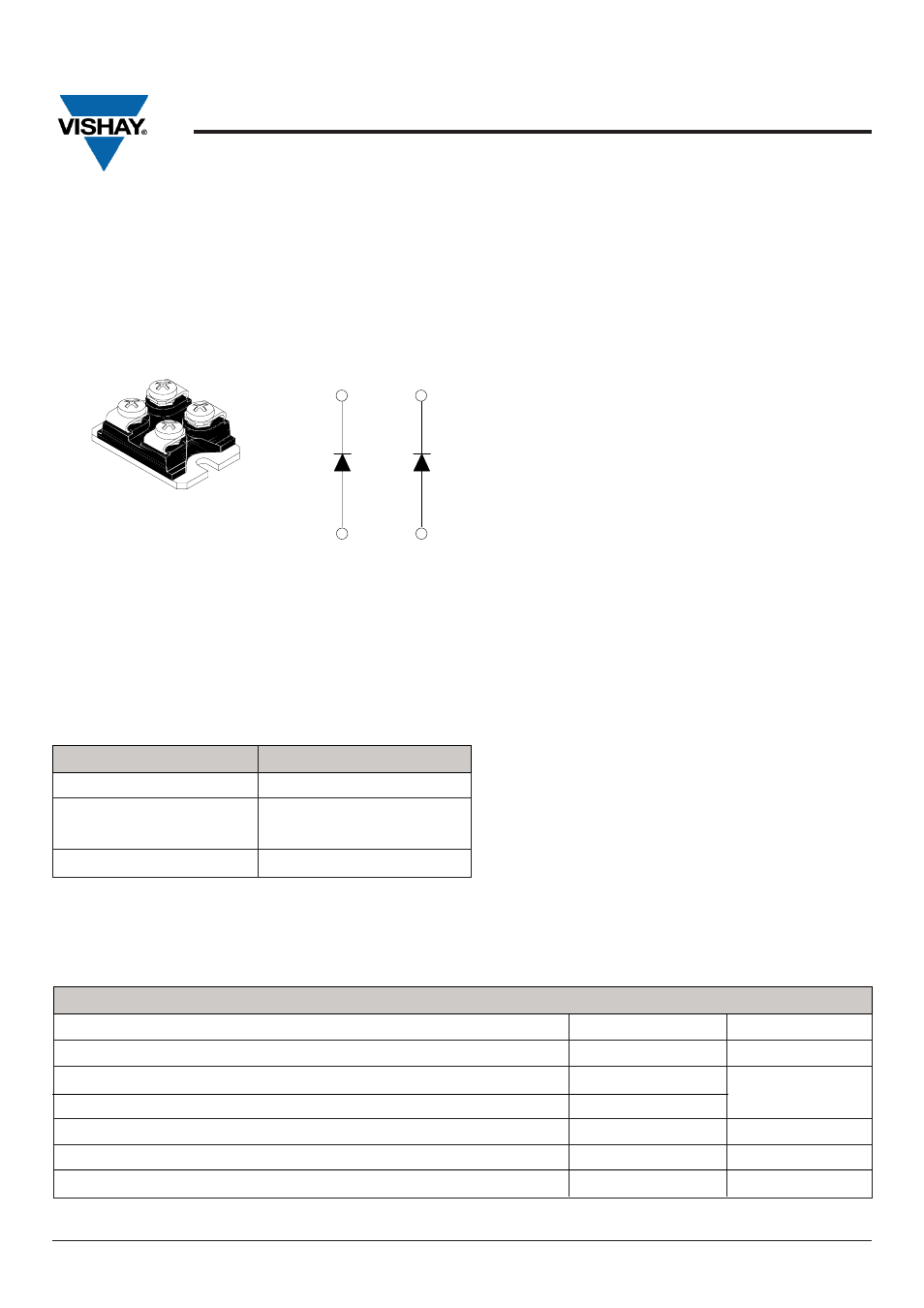

• Two Fully Independent Diodes
• Ceramic Fully Insulated Package (V
ISOL
= 2500V AC)
• Ultrafast Reverse Recovery
• Ultrasoft Reverse Recovery Current Shape
• Low Forward Voltage
• Optimized for Power Conversion: Welding and
Industrial SMPS Applications
• Industry Standard Outline
• Plug-in Compatible with other SOT-227 Packages
• Easy to Assemble
• Direct Mounting to Heatsink
• TOTALLY LEAD-FREE
www.vishay.com
1
V
R
Collector-to-Anode Voltage 600 V
I
F
Continuos Forward Current, per Diode @ T
C
= 85°C 144 A
I
FSM
Single Pulse Forward Current, per Diode @ T
C
= 25°C 1000
P
D
Maximum Power Dissipation, per Module @ T
C
= 85°C 360 W
V
ISOL
Isolation Voltage, Any Terminal to Case, t = 1 min 2500 V
T
J
Operating Junction and Storage Temperatures -55 to 175 °C
PARAMETERS MAX UNITS
FEATURES
SOT-227
ABSOLUTE MAXIMUM RATINGS
UFL200FA60P
INSULATED ULTRAFAST
RECTIFIER MODULE
Vishay High Power Products
The UFL200FA60P insulated modules integrate two
state-of-the-art International Rectifier's Ultrafast
recovery rectifiers in the compact, industry standard
SOT-227 package. The planar structure of the diodes,
and the platinum doping life-time control, provide a
Ultrasoft recovery current shape, together with the
best overall performance, ruggedness and reliability
characteristics.
These devices are thus intended for high frequency
applications in which the switching energy is designed
not to be predominant portion of the total energy, such
as in the output rectification stage of Welding machines,
SMPS, DC-DC converters. Their extremely optimized
stored charge and low recovery current reduce both
over dissipation in the switching elements (and
snubbers) and EMI/ RFI.
DESCRIPTION
2
1 4
3
Document Number: I27322
Revision: 30-Oct-07
t
rr
102ns
I
F(AV)
200A
@ T
C
105°C
V
R
600V
PRODUCT SUMMARY
