GA100TS60SF
Bulletin I27201 rev. A 01/06
Device Code
Ordering Information Table

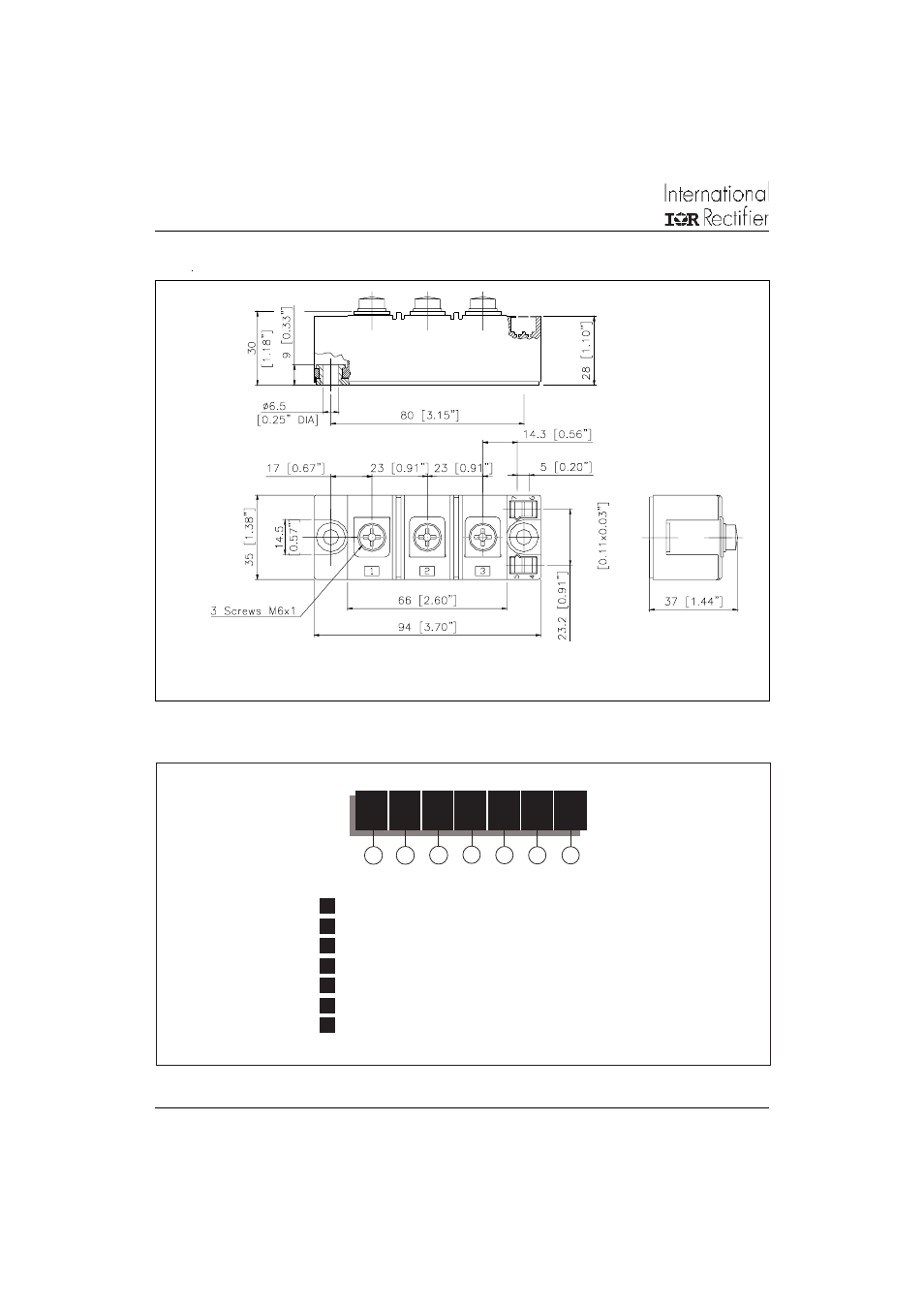

Outline Table
GA 100 T S 60 S F
1 2 3 4 5 6 7
1 - Essential Part Number IGBT modules
2 - Current rating (100 = 100A)
3 - Circuit Configuration (T = Half Bridge)
4 - Int-A-Pak
5 - Voltage Code (60 = 600V)
6 - Speed/ Type (S = Standard Speed IGBT)
7 - Diode Type
All dimensions are in millimeters
Document Number: 93619 www.vishay.com
6
