PS21997-4, PS21997-4A
Intellimod™ Module
Dual In-line Intelligent Power Module
30 Amperes/600 Volts
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
2
10/09
Absolute Maximum Ratings,
T
j
= 25°C unless otherwise specified
Characteristics
Symbol
PS21997-4, PS21997-4A
Units
Power Device Junction Temperature*
T
j
-20 to 125
°C
Storage Temperature
T
stg
-40 to 125
°C
Case Operating Temperature (Note 1)
T
C
-20 to 100
°C
Mounting Torque, M3 Mounting Screws
—
6.9
in-lb
Module Weight (Typical)
—
10
Grams
Heatsink Flatness (Note 2)
—
-50 to 100
µm
Self-protection Supply Voltage Limit (Short Circuit Protection Capability)**
V
CC(prot.)
400
Volts
Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate
V
ISO
1500
V
rms
*The maximum junction temperature rating of the power chips integrated within the DIPIPM is 150°C (@T
C
≤ 100°C). However, to ensure safe operation of the DIPIPM,
the average junction temperature should be limited to T
j(avg)
≤125°C (@T
C
≤ 100°C).
**V
D
= 13.5 ~ 16.5V, Inverter Part, T
j
= 125°C, Non-repetitive, Less than 2µs
IGBT Inverter Sector
Supply Voltage (Applied between P - N)
V
CC
450
Volts
Supply Voltage, Surge (Applied between P - N)
V
CC(surge)
500
Volts
Collector-Emitter Voltage
V
CES
600
Volts
Each IGBT Collector Current, ± (T
C
= 25°C)
I
C
30
Amperes
Each IGBT Peak Collector Current, ± (T
C
= 25°C, Less than 1ms)
I
CP
60
Amperes
Collector Dissipation (T
C
= 25°C, per 1 Chip)
P
C
47.6
Watts
Control Sector
Supply Voltage (Applied between V
P1
-V
NC
, V
N1
-V
NC
)
V
D
20
Volts
Supply Voltage (Applied between V
UFB
-U,
V
VFB
-V, V
WFB
-W)
V
DB
20
Volts
Input Voltage (Applied between U
P
, V
P
, W
P
, U
N
, V
N
, W
N
-V
NC
)
V
IN
-0.5 ~ V
D
+0.5
Volts
Fault Output Supply Voltage (Applied between F
O
-V
NC
)
V
FO
-0.5 ~ V
D
+0.5
Volts
Fault Output Current (Sink Current at F
O
Terminal)
I
FO
1
mA
Current Sensing Input Voltage (Applied between C
IN
-V
NC
)
V
SC
-0.5 ~ V
D
+0.5
Volts

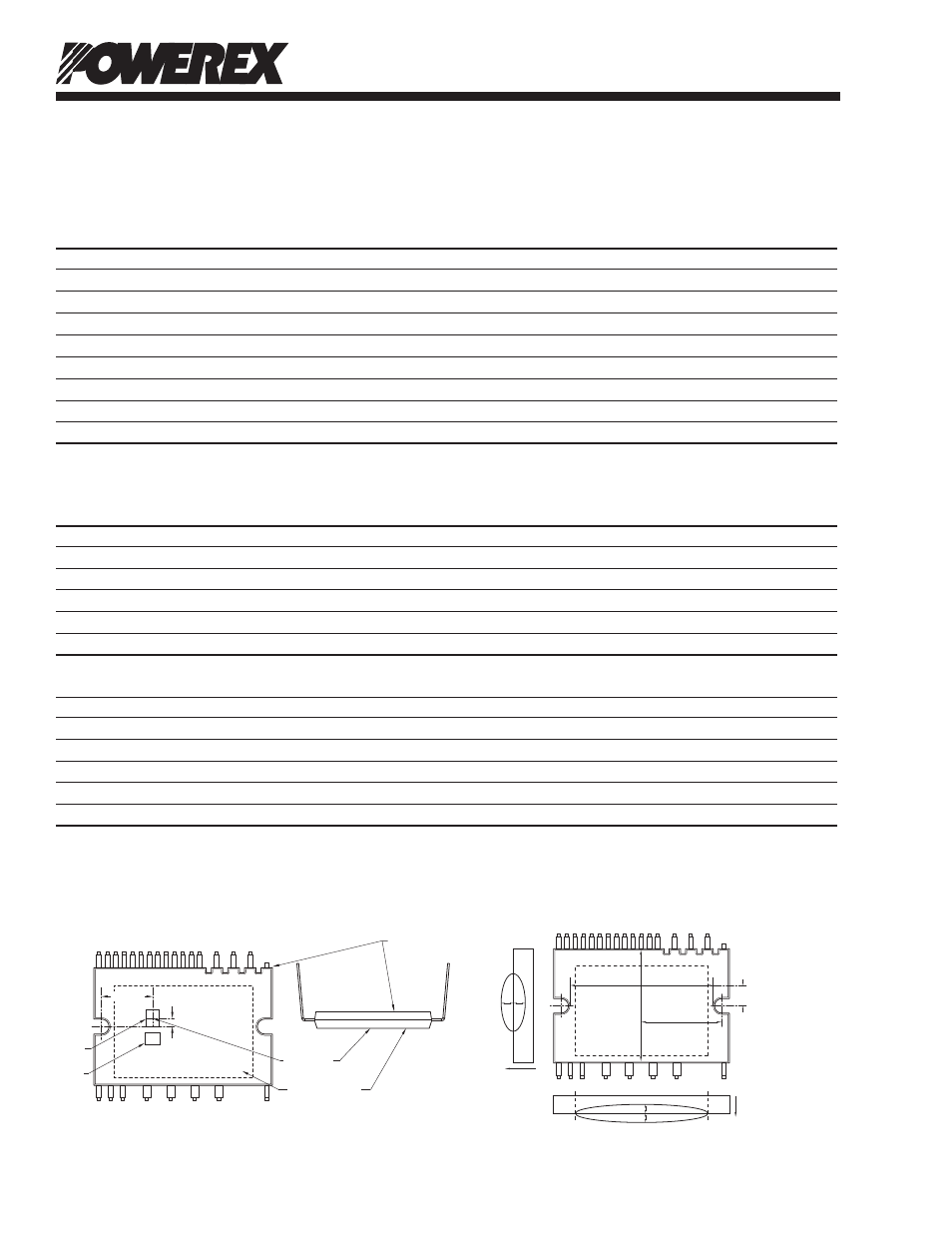

Note 1 – T
C
Measure Point
Note 2 – Flatness Measurement Position
FWDi
CHIP
POWER TERMINALS
CONTROL TERMINALS
IGBT
CHIP
HEATSINK SIDE
TC POINT
11.6mm
3.0mm
DIPIPM
HEATSINK
MEASUREMENT POINT
4.6mm
17.5mm
HEATSINK
–
+
–
+
