Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Intellimod™ Modules
Three Phase Converter
IGBT Inverter Output
15 Amperes/1200 Volt
PM15CZF120
505
Description:
Powerex Intellimod™ Intelligent
Power Modules are isolated base
modules designed for power
switching applications operating
at frequencies to 20kHz. Built-in
control circuits provide optimum
gate drive and protection for the
IGBT and free wheel-diode
power devices.
Features:
□
Complete Output Power
Circuit
□
Gate Drive Circuit
□ Protection Logic
– Short Circuit
– Over Current
– Over Temperature
– Under Voltage
Applications:
□ Inverters
□
UPS
□
Motion/Servo Control
□ Power Supplies
Ordering Information:
Example: Select the Complete
part number from the table below
-i.e. PM15CZF120 is a 1200V,
15 Ampere Intellimod™ Intelligent
Power Module.
Type Current Rating V
CES
Amperes Volts (x 10)
PM 15 120

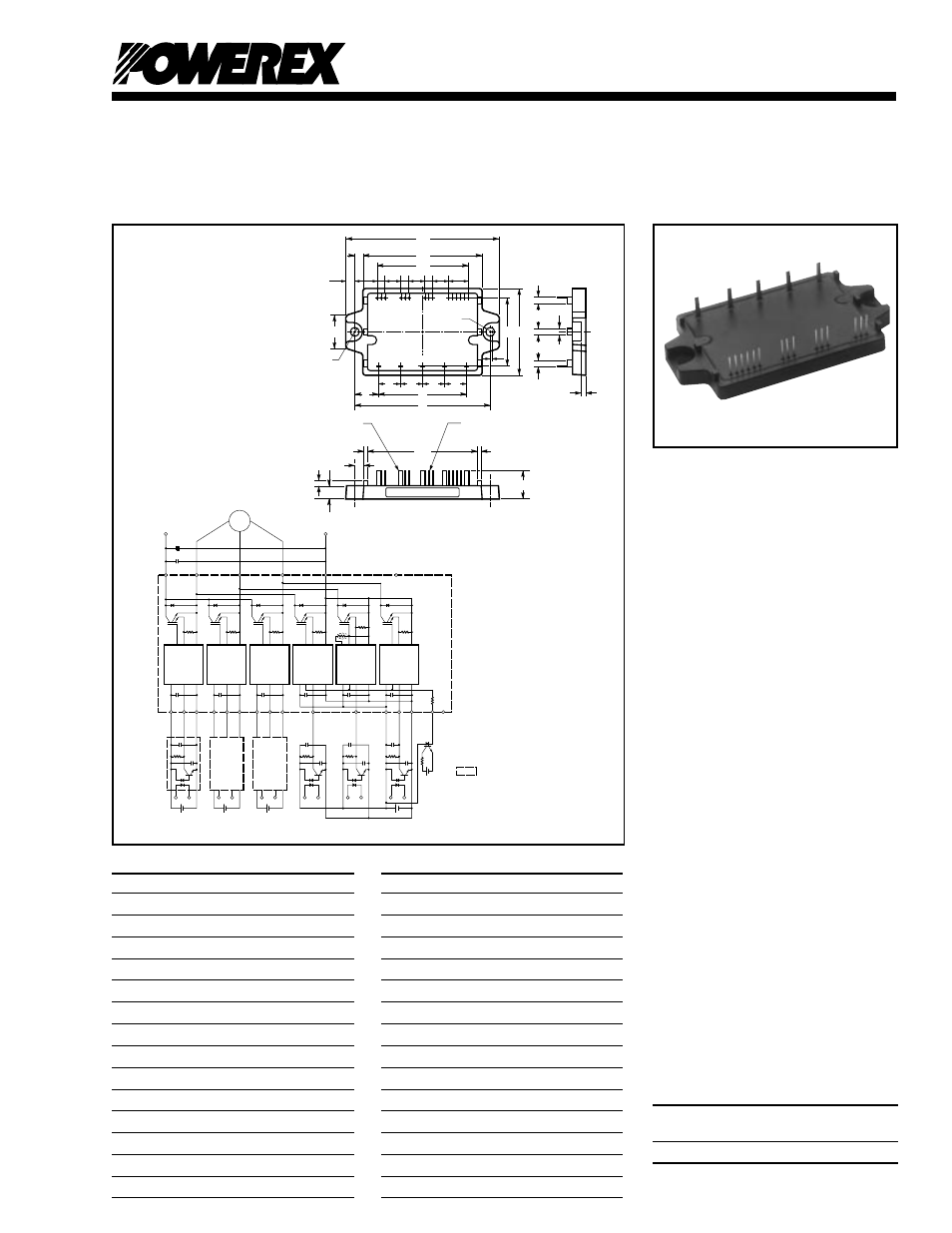

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
R 0.22 Dia. 5.5 Dia.
S 0.24 Rad. 6.0 Rad.
T 0.14 3.5
U 0.12
±
0.02 3.0
±
0.5
X 0.1 ± 0.01 2.54 ± 0.3
Y 0.1
±
0.01 2.54
±
0.3
Z 0.24 6.0
AA 0.12 3.0
AB 0.69 17.5
AC 0.16 4.0
AD 0.10 2.5
AE 2.76 70.0
AF 0.22 5.5
AG 0.22 5.5
Dimensions Inches Millimeters
A 3.86
±
0.04 98.0
±
1.0
B 3.43
±
0.02 87.0
±
0.5
C 2.99 76.0
D 2.30 58.42
E 2.20 ± 0.03 56.0 ± 0.8
F 2.21
±
0.04 56.0
±
1.0
G 1.73
±
0.03 44.0
±
0.8
J 0.83 21.0
K 0.71
±
0.04 18.0
±
1.0
L 0.61 15.5
M 0.55 ± 0.01 14.0 ± 0.3
N 0.56 14.29
P 0.32
±
0.02 8.0
±
0.5
Q 0.40 10.16
1
P N U V W
2 3 4 5 6 7 8 9 10
11
12
13
14
15
2.0 ± 0.1
(t = 0.5)
TERMINAL CODE
INTERFACE WHICH IS
THE SAME AS
THE U-PHASE
1. VUPC
2. UP
3. VUP1
4. VVPC
5. VP
6. VVP1
7. VWPC
8. WP
9. VWP1
10. VNC
11. VN1
12. UN
13. VN
14. WN
15. FO
16. P
17. N
18. U
19. V
20. W
0.6 ± 0.1
(t = 0.4)
OUT
M
Si
+ -
GND
VUP1
P U V W N
UP
VD1
IF IF IF
VUPC
Vcc IN GND
OUT
Si
GND
VVP1
VP
VD2
VVPC
Vcc IN GND
OUT
Si
GND
VWP1
WP
VD3
VWPC
Vcc IN GND
OUT
Si
GND
UN
Vcc Fo IN GND
TEMP
OUT
Si
GND
VN
VD4
Vcc Fo
Th
IN GND
OUT
Si
GND
VN1 WN VNC
Fo NC
NC
RFo
Vcc Fo IN GND
Y Q X Q Q X N
AF
AG
2-R
X
D
B
L
C
A
J
M M M AA M
E
G
U
1
F
AA
AA
AC
2-S AB
AB
T Z
AD AD AE
P
K
