Voltage selection configuration, Fig. 1, Terminal blocks for fig. 1 – Altronix ALTV248220 Series Installation Instructions User Manual

Page 4: Fig. 2, Terminal blocks for fig. 2, 24vac output, 28vac output, Used on ptc models, Yellow) (black) (black) (yellow)

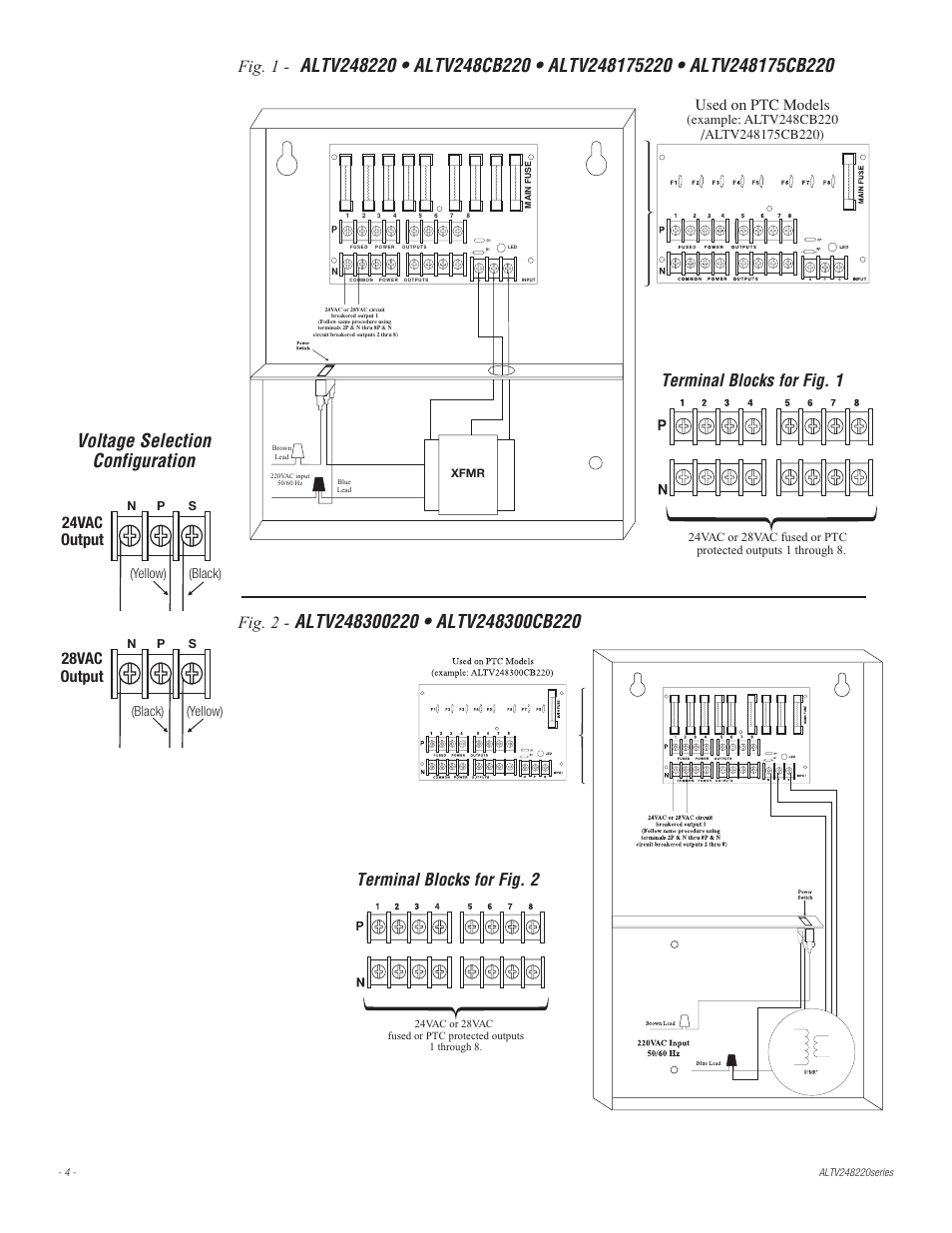

Voltage selection configuration, Fig. 1, Terminal blocks for fig. 1 | Fig. 2, Terminal blocks for fig. 2, 24vac output, 28vac output, Used on ptc models, Yellow) (black) (black) (yellow) | Altronix ALTV248220 Series Installation Instructions User Manual | Page 4 / 8 Voltage selection configuration, Fig. 1, Terminal blocks for fig. 1 | Fig. 2, Terminal blocks for fig. 2, 24vac output, 28vac output, Used on ptc models, Yellow) (black) (black) (yellow) | Altronix ALTV248220 Series Installation Instructions User Manual | Page 4 / 8
