Facp hook-up diagrams, Factory installed jumper, 30vdc from facp signal circuit – Altronix Maximal33RD Installation Instructions User Manual

Page 9: Normally open [no] reset switch, Normally closed [nc] dry trigger input

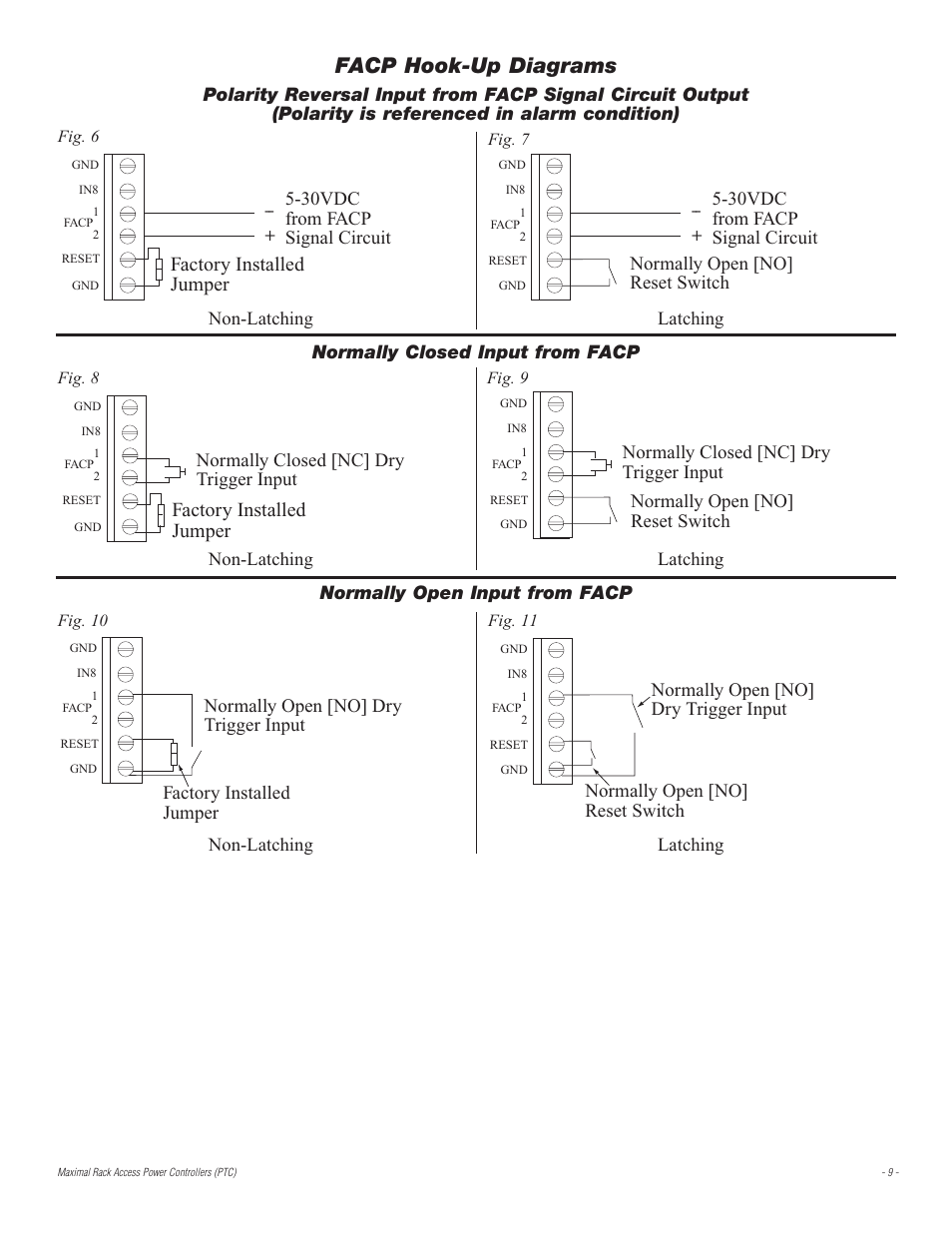

Facp hook-up diagrams, Factory installed jumper, 30vdc from facp signal circuit | Normally open [no] reset switch, Normally closed [nc] dry trigger input | Altronix Maximal33RD Installation Instructions User Manual | Page 9 / 12 Facp hook-up diagrams, Factory installed jumper, 30vdc from facp signal circuit | Normally open [no] reset switch, Normally closed [nc] dry trigger input | Altronix Maximal33RD Installation Instructions User Manual | Page 9 / 12
