On off, Off on, Power supply board output voltage settings – Altronix Maximal77E Installation Instructions User Manual

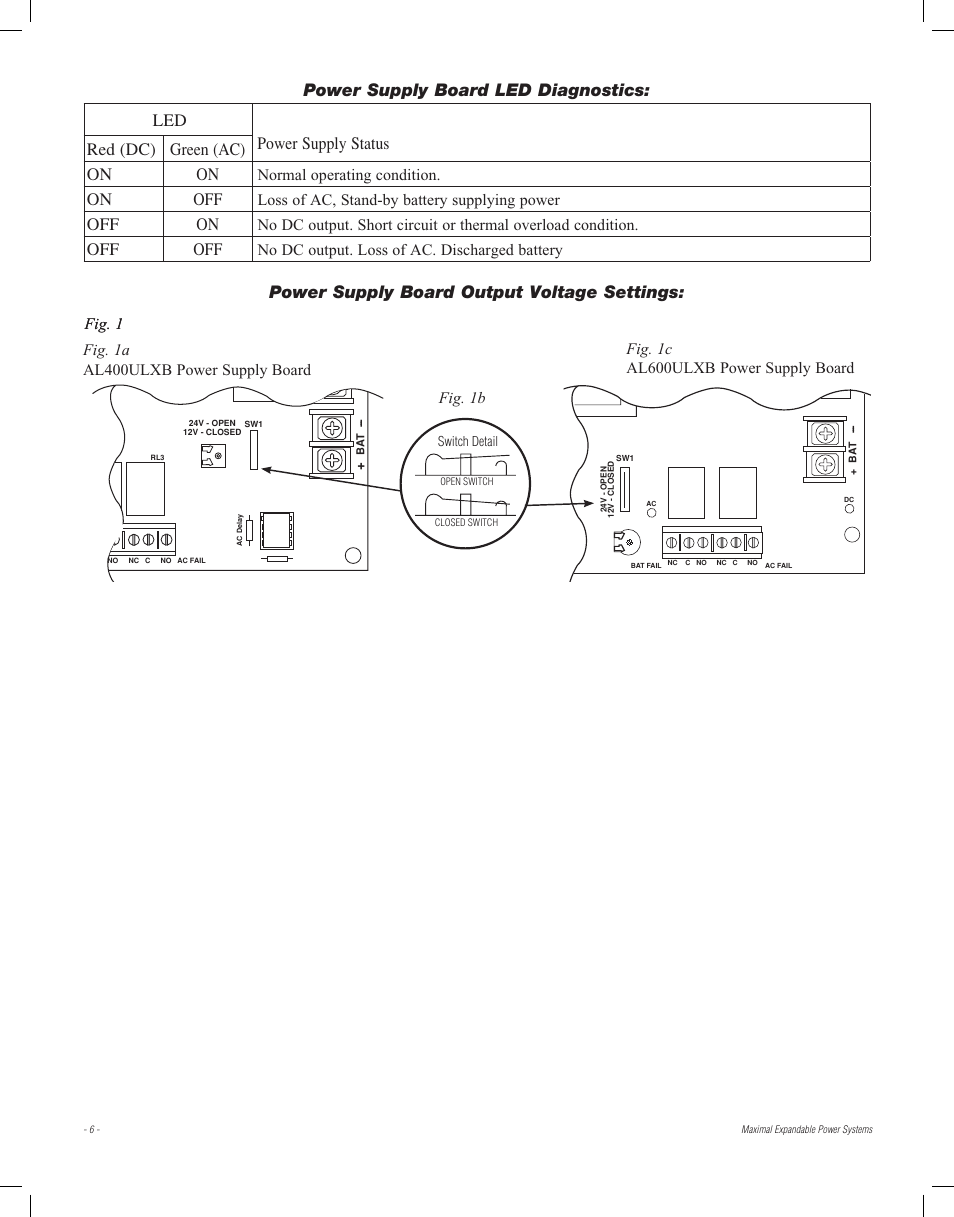

Page 6: Normal operating condition, Loss of ac, stand-by battery supplying power, No dc output. loss of ac. discharged battery, Fig. 1

On off, Off on, Power supply board output voltage settings | Normal operating condition, Loss of ac, stand-by battery supplying power, No dc output. loss of ac. discharged battery, Fig. 1 | Altronix Maximal77E Installation Instructions User Manual | Page 6 / 16 On off, Off on, Power supply board output voltage settings | Normal operating condition, Loss of ac, stand-by battery supplying power, No dc output. loss of ac. discharged battery, Fig. 1 | Altronix Maximal77E Installation Instructions User Manual | Page 6 / 16
