6 Set up the sensor with the display and adjustment module
VEGAPULS SR 68 • Modbus and Levelmaster protocol
41371-EN-130624
6.4 Parameter adjustment
Through the parameter adjustment the instrument is adapted to the
application conditions. The parameter adjustment is carried out via an
adjustment menu.

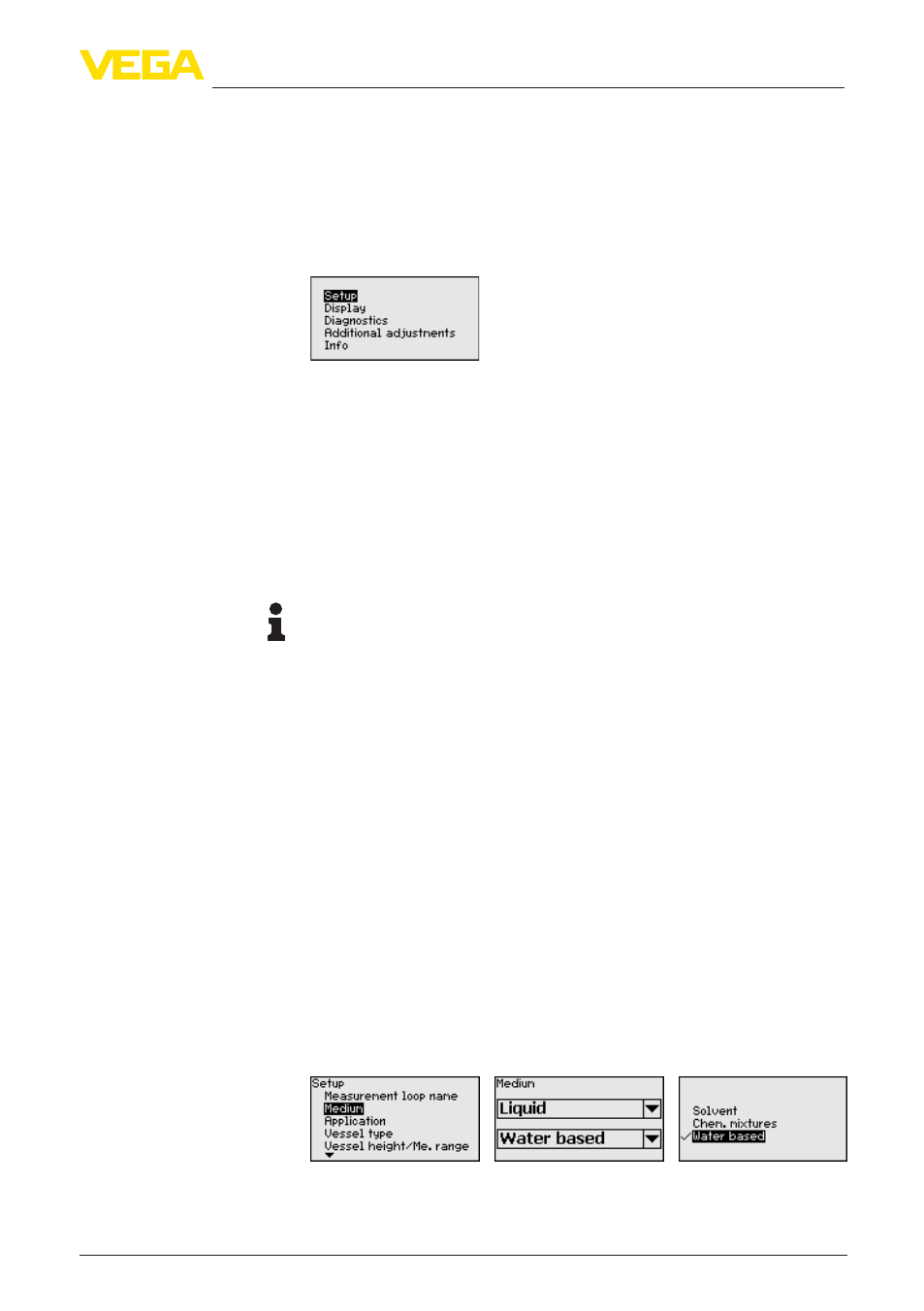

The main menu is divided into five sections with the following func-
tions:
Setup: Settings, e.g., for measurement loop name, medium, applica-
tion, vessel, adjustment, signal output
Display: Settings, e.g., for language, measured value display, lighting
Diagnosis: Information, e.g. on instrument status, pointer, measure-
ment reliability, simulation, echo curve
Further settings: Instrument unit, false signal suppression, linearisa-
tion curve, reset, date/time, reset, copy function
Info: Instrument name, hardware and software version, date of manu-
facture, instrument features
Information:
In this operating instructions manual, the instrument-specific param-
eters in the menu sections "Setup", "Diagnosis" and "Additional set-
tings" are described. The general parameters in these menu section
are described in the operating instructions manual "Indicating and
adjustment module".
You can find in the operating instructions manual "Display and adjust-
ment module" also the description of the menu sections "Display" and
"Info".
In the main menu point "Setup", the individual submenu points should
be selected subsequently and provided with the correct parameters
to ensure the optimum adjustment of the measurement. The proce-
dure is described in the following.
Setup
Each medium has different reflection properties. With liquids, further
interfering factors are fluctuation product surface and foam genera-
tion. With bulk solids, these are dust generation, material cone and
additional echoes from the vessel wall.
To adapt the sensor to these different measuring conditions, the
selection "Liquid" or "Bulk solid" should be made in this menu item.
Main menu
Setup - Medium
