6 Set up with the display and adjustment module
VEGABAR 83 • 4 … 20 mA/HART
45034-EN-131010
In menu item "Scaling (2)" you define the scaling format on the display
and the scaling of the measured level value for 0 % and 100 %.
In the menu items "Current output" you determine the properties of
the current output.
On instrumdents with integrated 2. current output, the properties for
each current output are adjusted individually. The following descrip-
tions apply to both current outputs.
In menu item"Current output, size" you determine which measured
value the current output refers to.
In menu item "Current output, adjustment" you can assign a respec-
tive measured value to the current output.
In the menu item "Current output mode" you determine the output
characteristics and reaction of the current output in case of failure.
The default setting is output characteristics 4 … 20 mA, failure mode
< 3.6 mA.
In the menu item "Current output Min./Max.", you determine the reac-
tion of the current output during operation.
The default setting is min. current 3.8 mA and max. current 20.5 mA.

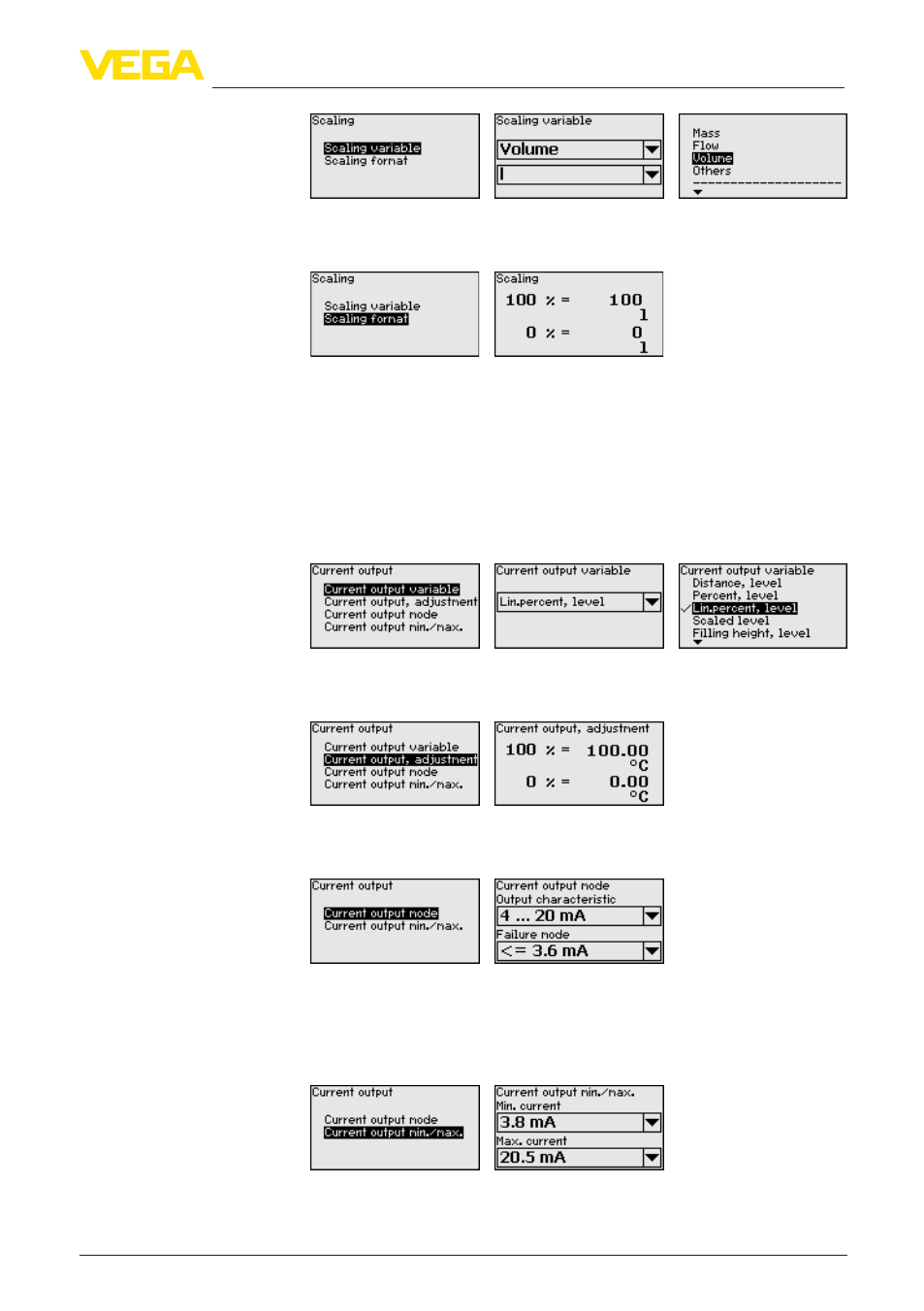

Setup - Scaling (2)
Setup - Current output
Additional settings - Cur-
rent output 1 and 2 (size)
Additional settings -
Current output 1 and 2
(adjustment)
Setup - Current output 1
and 2 (mode)
Setup - Current output 1
and 2 (min./max.)
