11 Supplement
VEGADIF 65 • Profibus PA
36129-EN-130417
bar % Lin%
Min-Max
adjustment Linearization
PROFIBUS PA-output
Primary
Value
Secondary
Value 1
Secondary
Value 2
Target
Mode
Failure
mode
Alarms Scaling
Source for
scaling
t
i
Damping
Sensor
characteristics
PA-Out
TB
FB
Select additional cyclic
value
Sensor mounting
correction

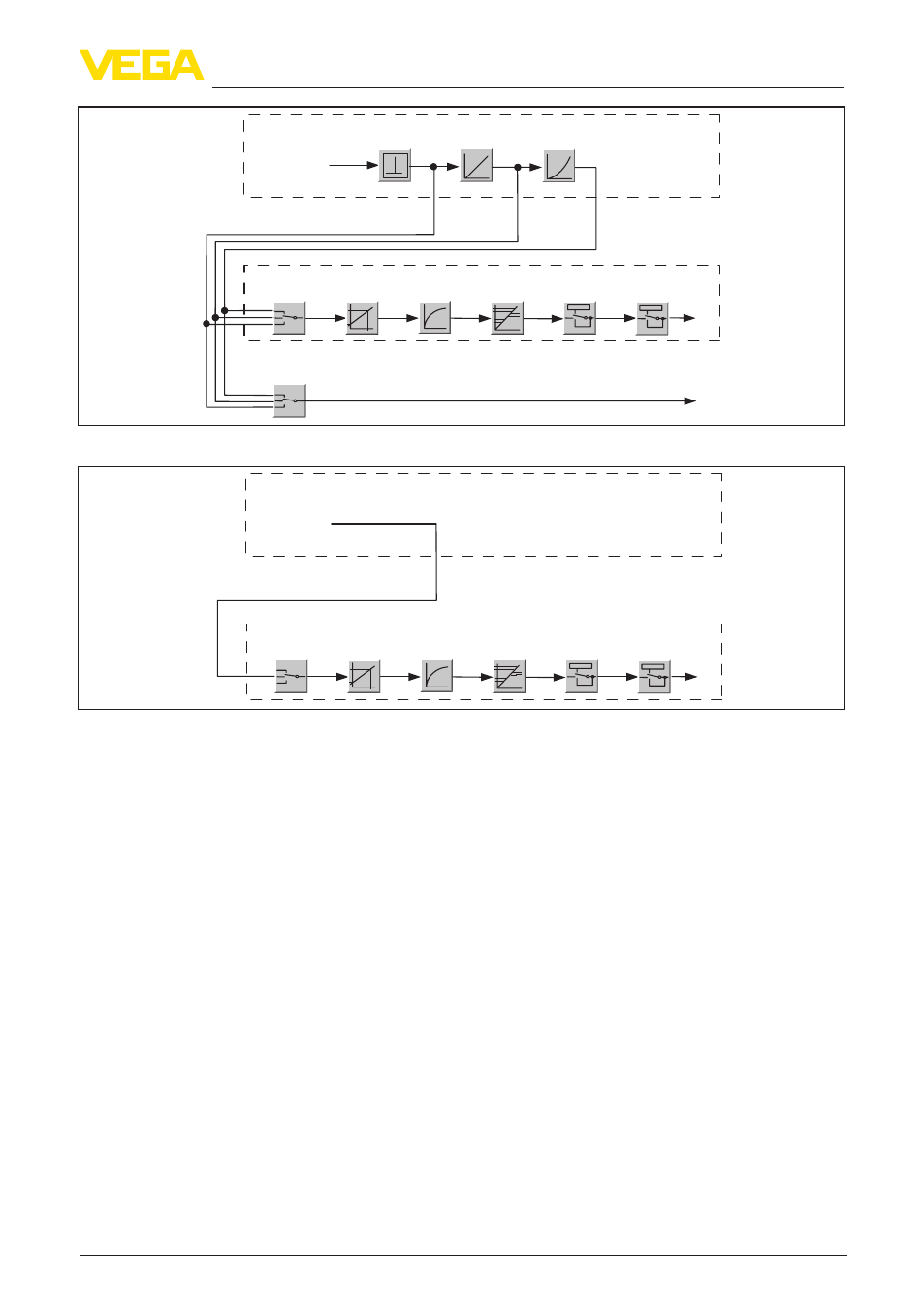

Fig. 60: VEGADIF 65: Block diagram with AI (PA-OUT) value and Additional Cyclic Value
PROFIBUS PA-output
Target
Mode
Failure
mode
Alarms Scaling Source for
scaling
t
i
Damping
Sensor
characteristics
PA-Out
°C
TB
FB 2
Fig. 61: VEGADIF 65: Block diagram with temperature value
Module of the PA sensors
For the cyclic data traffic, VEGADIF 65 provides the following modules:
•
AI (PA-OUT)
– PA-OUT value of the FB1 after scaling
•
Temperature
– PA-OUT value of the FB2 after scaling
•
Additional Cyclic Value
– Additional cyclical value (depending on the source)
•
Free Place
– This module must be used if a value should not be used in the data telegram of the cyclical
data traffic (e.g. replacement of the temperature and Additional Cyclic Value)
A maximum of three modules can be active. By means of the configuration software of the Profibus
master you can determine the configuration of the cyclical data telegram with these modules. The
procedure depends on the respective configuration software.
The modules are available in two versions:
•
Short for Profibus master supporting only one "Identifier Format" byte, e.g. Allen Bradley
•
Long for Profibus master only supporting the "Identifier Format" byte, e.g. Siemens S7-300/400
