5 Insert the cable into the sensor through the cable entry

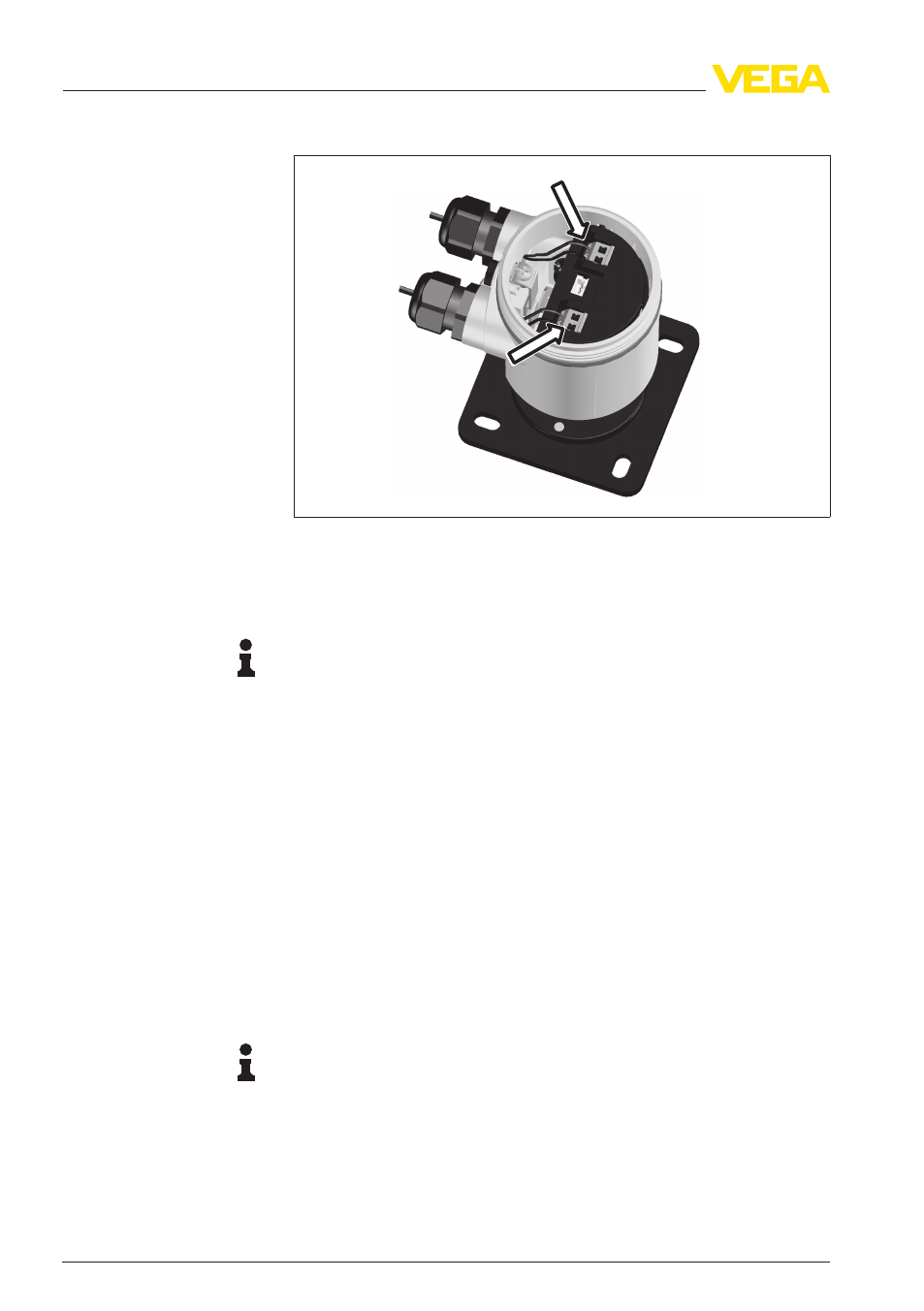

Fig. 7: Connection steps 5 and 6
6 Insert the wire ends into the terminals according to the wiring plan
Note:
Solid cores as well as flexible cores with cable end sleeves are
inserted directly into the terminal openings. In case of flexible cores
without end sleeves, press the terminal with a small screwdriver; the
terminal opening is freed. When the screwdriver is released, the
terminal closes again.
7 Check the hold of the wires in the terminals by lightly pulling on
them
8 Connect the screen to the internal ground terminal, connect the
outer ground terminal to potential equalisation
9 Attach the indicating and adjustment module again and turn it
slightly to the right
10 Tighten the compression nut of the cable glands. The seal ring
must completely encircle the cable
11 Screw the housing cover back on
The electrical connection is finished.
Note:
The terminal block is pluggable and can be removed from the
electronics. To do this, lift the terminal block with a small screwdriver
and pull it out. When inserting the terminal block again, you should
hear it snap in.
