Windows Driver Configuration
Windows displays the DiO 2448 driver status in the Device Manager page of
the System Properties dialog box. The Systems Properties dialog is opened
via the Windows Start button. Select Settings | Control Panel to open the
Windows Control Panel. Select “System” from the Control Panel to open the
System Properties dialog box, then click on the “+” next to Sound, video and
game controllers to open the list of devices, the DiO 2448 being a device of

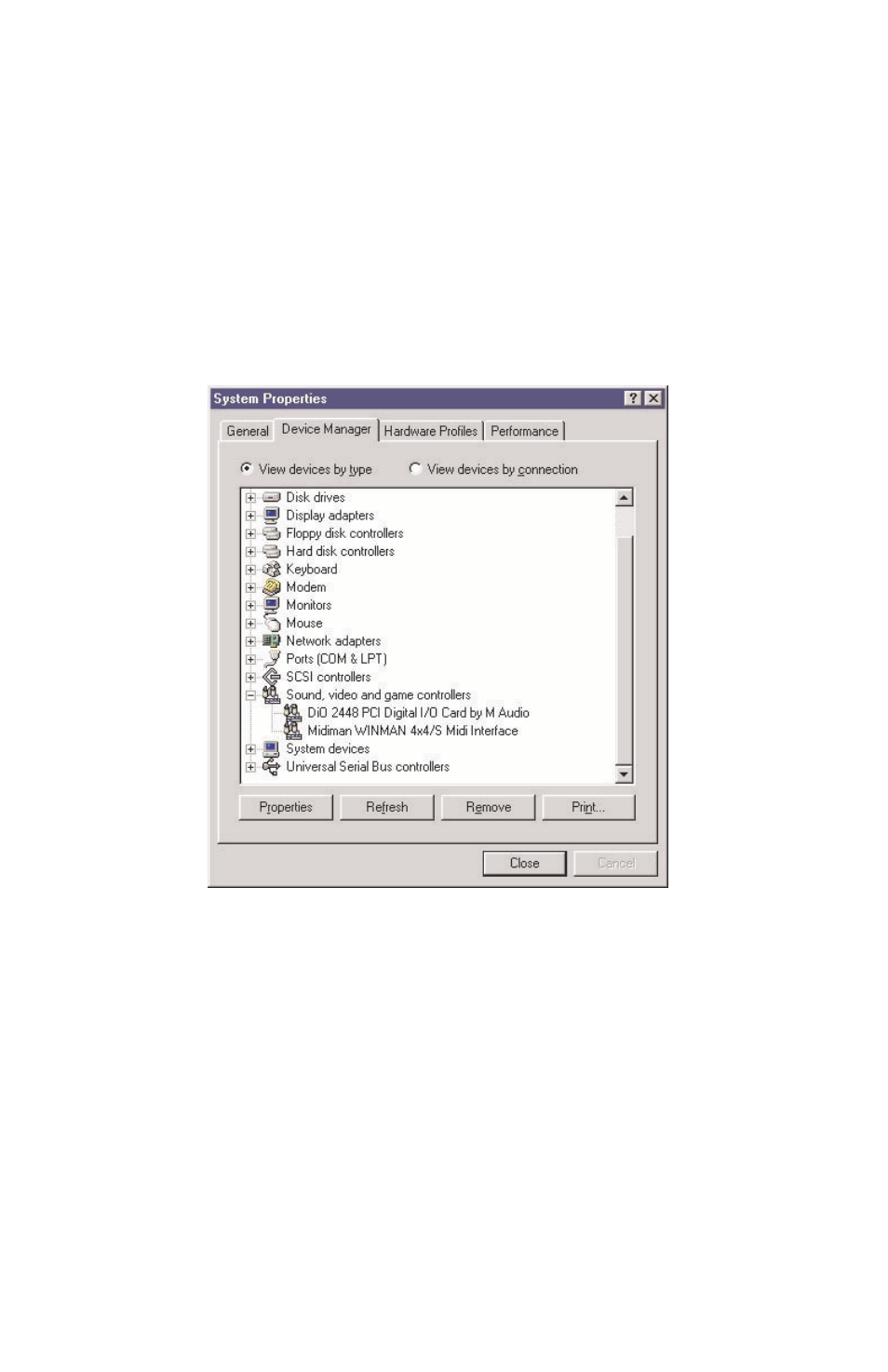

that nature. Below is an example view of the Device Manager device list.
This example shows the M Audio DiO 2448 and Midiman WINMAN 4x4/S
(another product shown here only as an example) entries in the Windows
Device Manager device list. The DiO 2448 is properly installed with no
conflicts, as is the WINMAN 4x4/S. If you do not see your M Audio
DiO 2448 in your Device Manager in this fashion, please jump ahead to the
“Troubleshooting” section of this manual.
