9
3 Product description
PLICSRADIO R62 • Wireless receiving unit (multiple channel)
32970-EN-130228
1
2 3
4
5

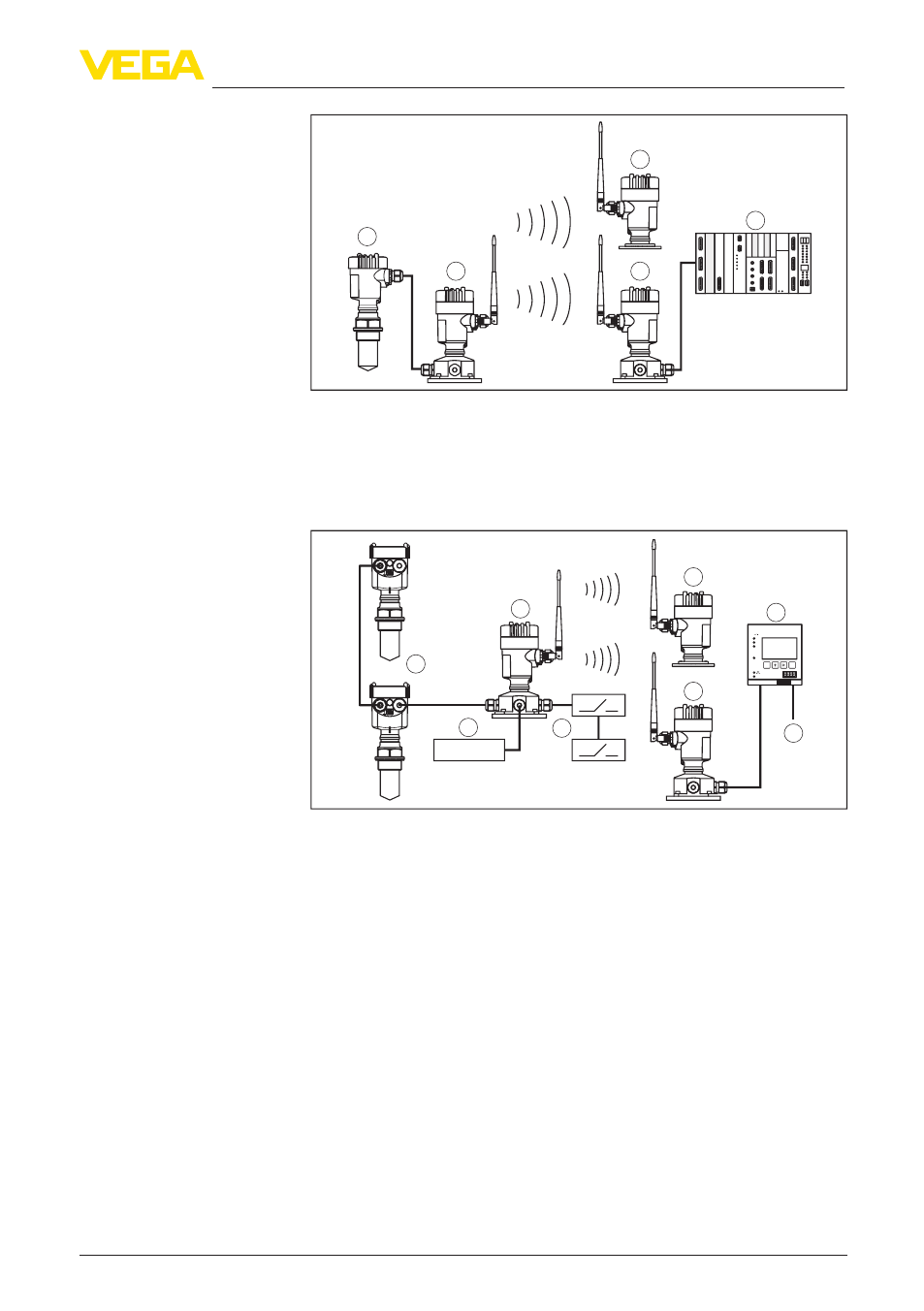

Fig. 2: Example PLICSRADIO - single channel application
1 HART sensor
2 Emitting unit PLICSRADIO T61
3 Receiving unit PLICSRADIO R61
4 Indicating unit PLICSRADIO D61
5 Processing, e.g. safety PLC or indication
4... 20 mA
Ser. No. 12345678
on
OK ESC
COM
PLICSRADIO C62
3
2
1
4
2 3
5
8
6
7
1
Fig. 3: Example PLICSRADIO - multiple channel application
1 2 x HART sensor
2 4 … 20 mA instrument
3 2 x switching instruments
4 Emitting unit PLICSRADIO T62
5 Receiving unit PLICSRADIO R62
6 Processing unit PLICSRADIO C62
7 Outputs (3 x 4 … 20 mA, 3 x relay, RS232/Ethernet)
8 Indicating unit PLICSRADIO D61
The receiving unit PLICSRADIO R62 receives via the radio link the
measured values of one or more T61/T62 and transfers the values to
the processing unit C62. Up to three continuous measured values and
three switching inputs can be assigned to individual measurement
loops and displayed in the desired parameters on the display of the
C62.
Two types of power supply unit are available. You can find detailed
information on the power supply in chapter "Technical data" in the
"Supplement".
Functional principle
Voltage supply
