12
4 Mounting
PLICSRADIO R62 • Wireless receiving unit (multiple channel)
32970-EN-130228
Effective range Mounting height 2.4 GHz Mounting height 920 MHz
500 m (1640 ft) 3.9 m (12.79 ft) 6.4 m (20.99 ft)
750 m (2460 ft) 4.8 m (15.74 ft) 7.8 m (25.59 ft)
1000 m (3280 ft) 5.6 m (18.37 ft) 9.1 m (29.85 ft)
1500 m (4921 ft) - 11 m (36.08 ft)
Mount PLICSRADIO at the minimum height from the ground, or from
the highest obstacle that touches the Fresnel zone, as indicated in
the table; use a mast if necessary. With the 2.4 GHz standard model,
an optional external antenna with a 3 meter cable is available to allow
mounting at the required height.
Use the recommended cables (see chapter "Connecting to power
supply") and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry. Rain and condensation water can thus drain off. This ap-
plies mainly to outdoor mounting as well as installation in areas where
high humidity is expected (e.g. through cleaning processes) or on
cooled or heated vessels.

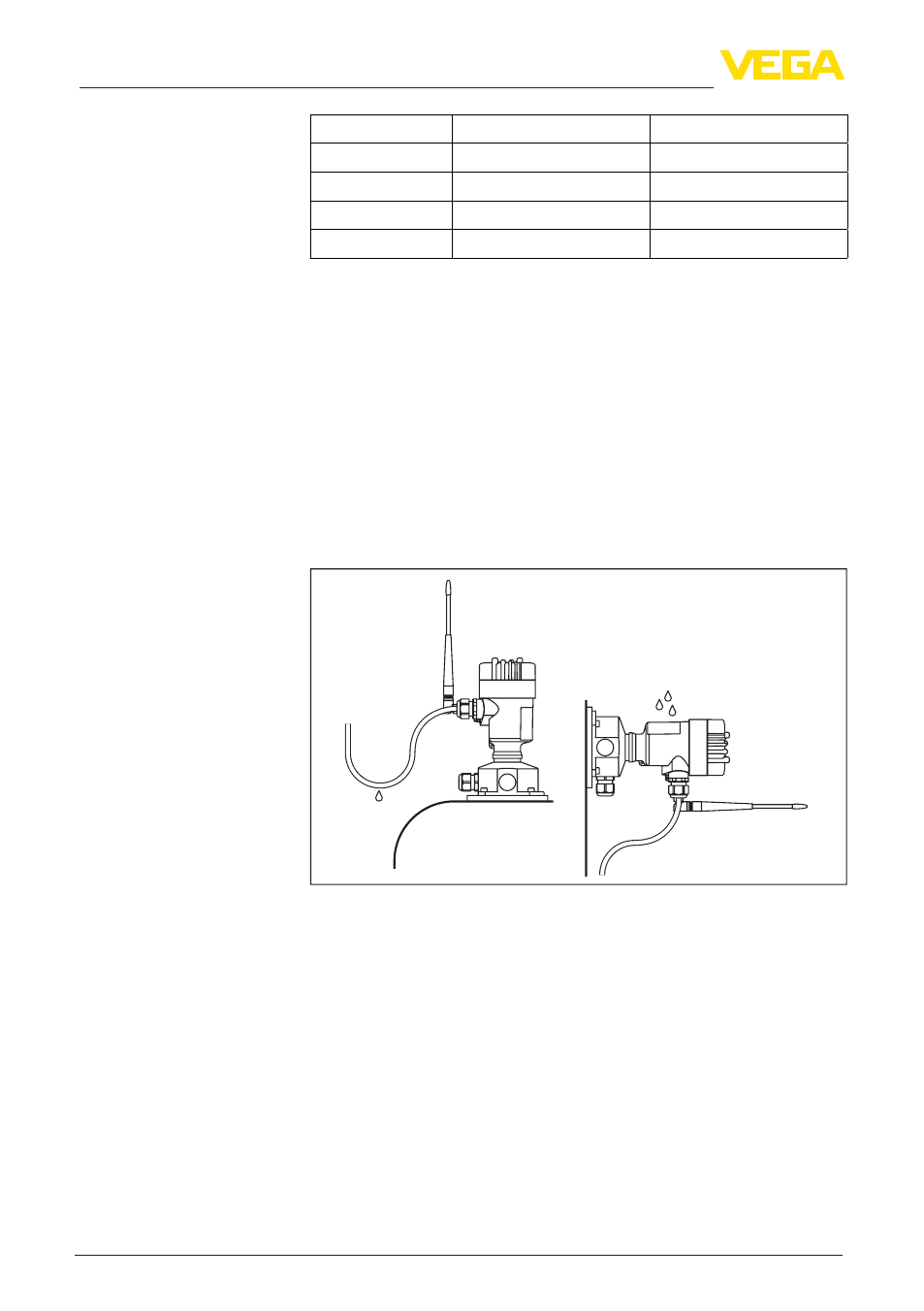

Fig. 5: Measures against moisture penetration
4.2 Mounting preparations
The following tools are required for mounting:
•
Allen wrench size 4
•
Phillips head size 2 or Torx size T10
•
Slotted screwdriver 3 mm
4.3 Mounting steps
1. Mark the holes according to the following drilling template
2. Depending on the mounting surface, fasten the wall mounting
plate with 4 screws
Moisture
Tools
Wall mounting
