Approvals (continued)
Approval as overfill protection acc. to the regulation
for combustible liquids VbF
Capacitive measuring electrodes, approved for the
following measuring systems
Type..............................................................................12.02, 12.03, 12.12, 12.13
23.02, 23.03, 23.12, 23.13
27.00, 27.01, 27.10, 27.11
32.04, 32.05, 32.06, 32.07
42.04, 42.05, 42.06, 42.07
32.14, 32.15, 32.16, 32.17
42.14, 42.15, 42.16, 42.17
12.42 Ex , 12.43 Ex, 12.72 Ex, 12.73 Ex
23.42 Ex , 23.43 Ex, 23.72 Ex, 23.73 Ex
27.40 Ex , 27.41 Ex, 27.70 Ex, 27.71 Ex
32.44 Ex , 32.45 Ex, 32.46 Ex, 32.47 Ex
32.74 Ex , 32.75 Ex, 32.76 Ex, 32.77 Ex
25.02 Ex , 25.03 Ex
25.12 Ex , 25.13 Ex
Oscillator ................................................................... 117/4 A Ex
Signal conditioning instrument .................................. VEGAMET 407 Z
Auxiliary level switch ................................................. VEGASEL 444, 441 B, 441 C
defined in test certificate no. ...................................... PTB-no. III B/S 2032 F
and type approval....................................................... 01/PTB-no. III B/S 2032 F
Transducer (capacitive measuring electrode or
pressure transmitter)
If the sensor is installed in hazardous areas, the
special conditions of the conformity certificate must
be observed. Signal conditoning instrument
The signal conditioning instrument VEGAMET
407 Z must be generally installed outside
hazardous areas (or special protective measures
must be taken.

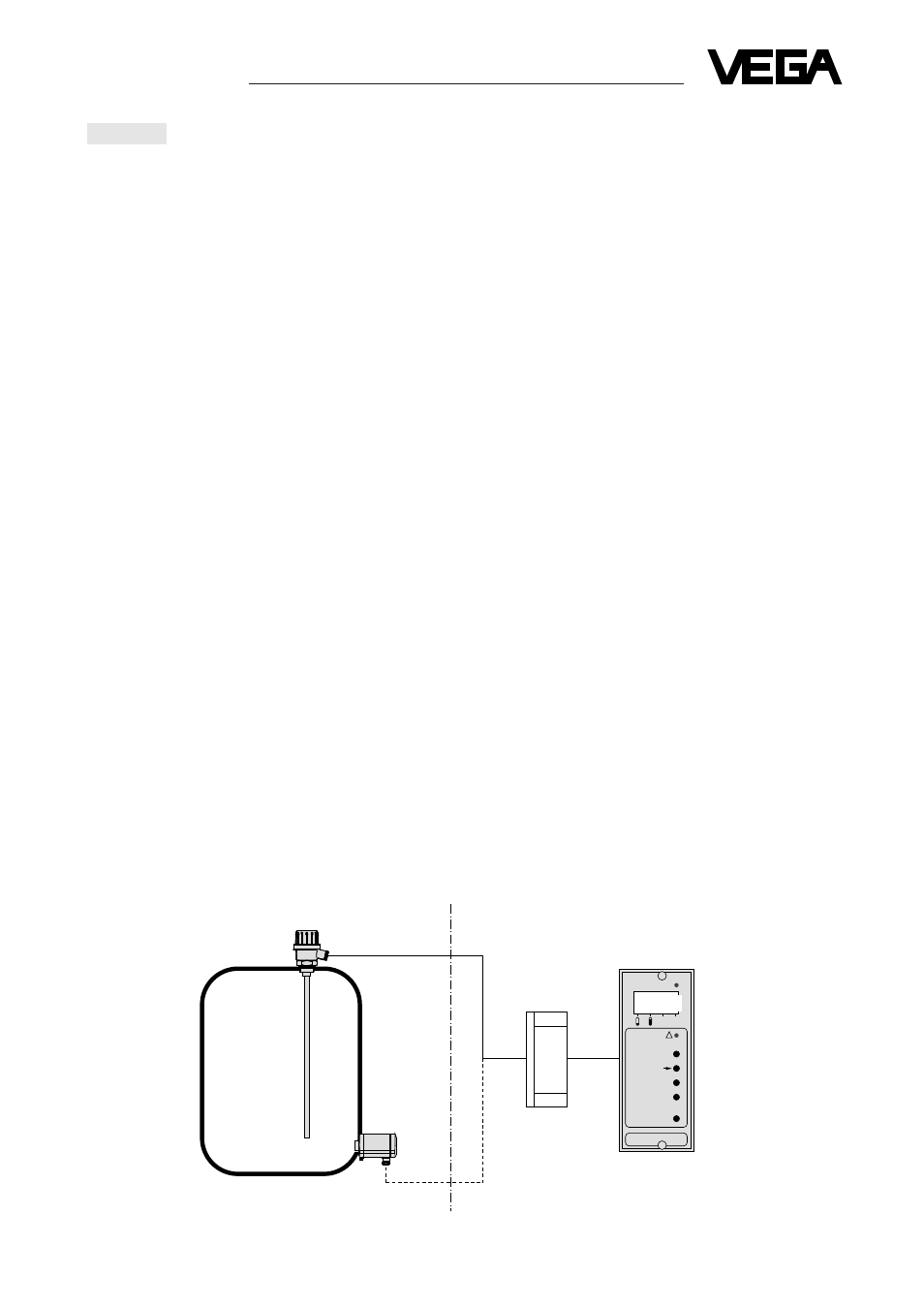

Measuring systems for the use in hazardous areas
must only be operated in conjunction with pressure
transmitters or capacitive measuring electrodes in Ex-version and safety barrier type 145. See
conformity certificate PTB-no. Ex-85.B.2038.
MOD
+
-
STO
!
t SIM
VEGAMET
407 Z
Ex-area not Ex-area
Zone 0 Zone 1
Safety barrier
type 145
VEGAMET 407 Z
50.0
%
