Help for fault diagnosis The measuring current stored during empty and full
adjustment can be displayed in the mode range by
pushing the plus-button.
Application with …………………… - inaccurate measurements or
- alarm E3 or E4
Example: Measuring current of the previous
adjustment related to 0 %
• select mode in MODEFIELD
• push plus-button, the adjustment current related
to 0 %, is displayed in PARAMETER FIELD
• reset by pushing the MOD-button twice
Measuring current of the previous
adjustment related to 100 %
• select mode in MODEFIELD
• push plus-button, the adjustment current related
to 100 %, is displayed in PARAMETER FIELD
• reset by pushing the MOD-button twice
Alarm information
E3
E4
= Adjustment had been carried with no or with too
small level change.
= The modes or %-values had been exchanged
during adjustment
or

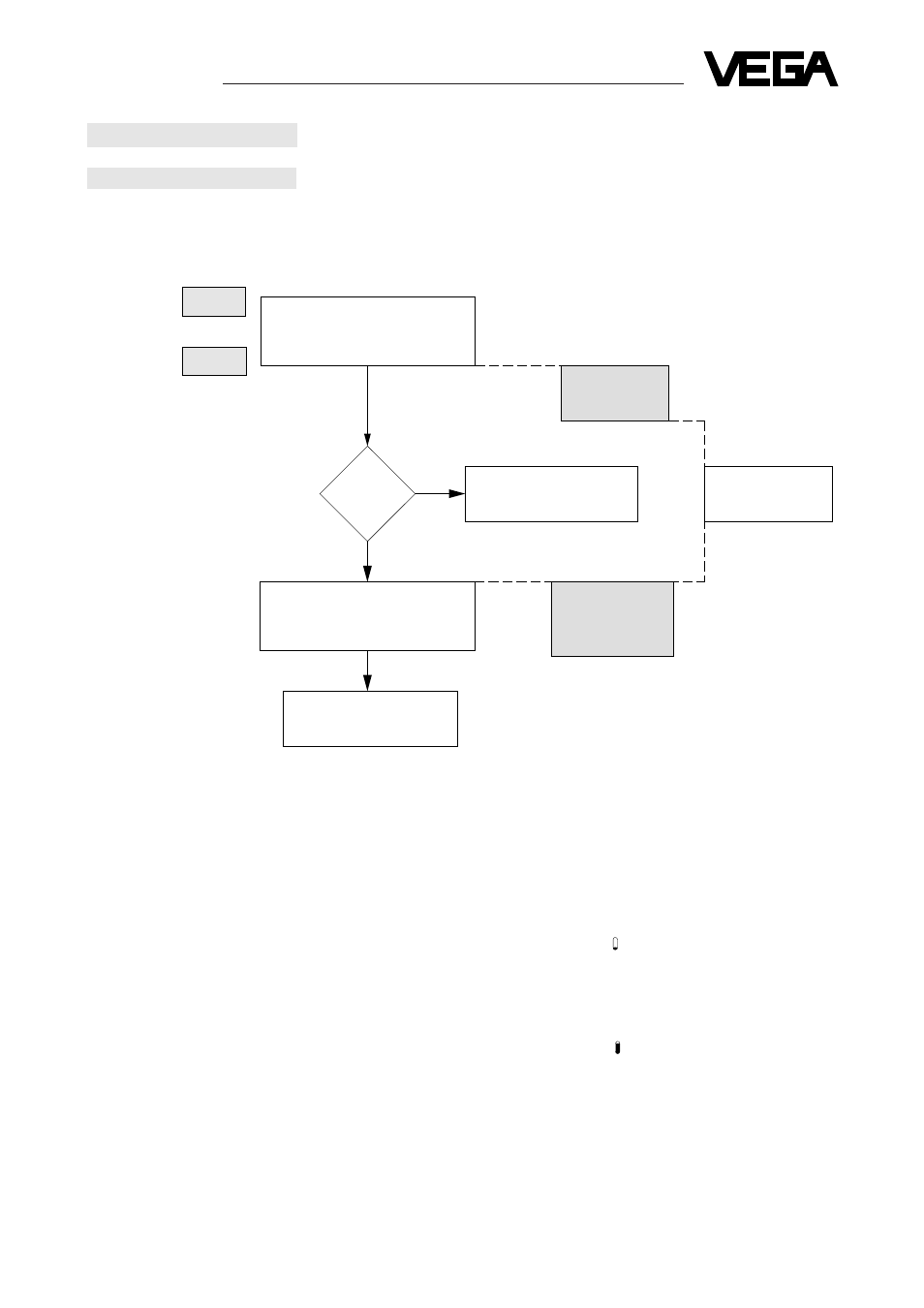

Fault diagnosis related to E3
Fault diagnosis related to E4
Alarm
removed
?
Repeat the adjustment
(e.g. empty adjustment)
Repeat the 2nd part of the
adjustment (e.g. full
adjustment)
or carry out
adjustment in mA
see page 11
E3 or E4 and mode
segment extinguish
E3 or E4 and
mode segment extinguish
Note
- %-value and
- mode
Note:
min. measuring
distance; %-
value and mode
