VEGAPULS 51K … 54K 7
21750-EN-031222

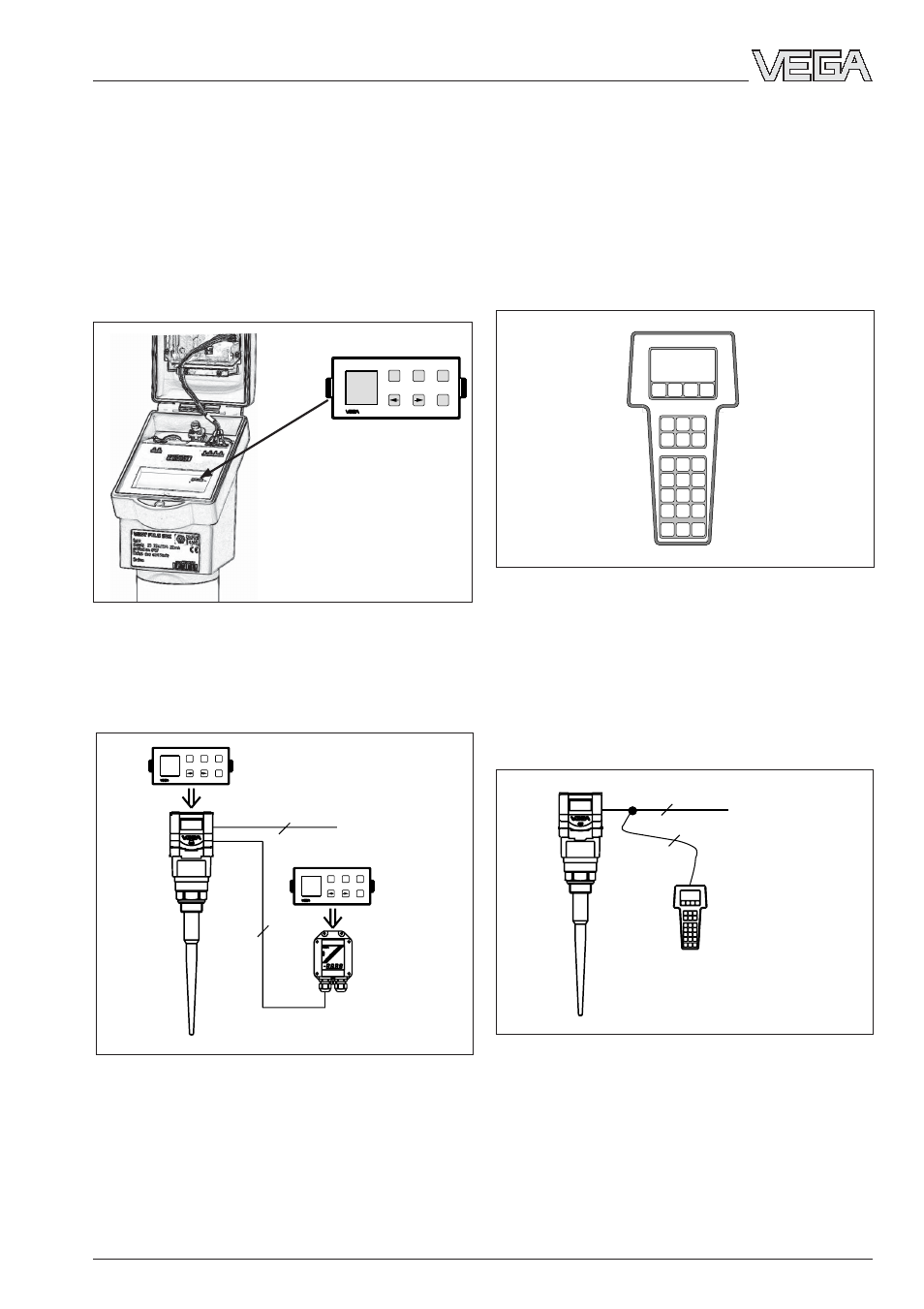

HART ® handheld on the 4 … 20 mA signal cable
To make adjustments, simply connect the
HART
® handheld to the 4 … 20 mA output
signal cable or insert the two communication
cables of the HART
® handheld into the ad-
justment jacks on the sensor.
HART ® handheld
HART Communicator
Adjustment with the HART ® handheld
Series 50 sensors with 4 … 20 mA output
signal can also be adjusted with the HART
®
handheld. A special DDD (Data Device De-
scription) is not necessary - the sensors can
be adjusted with the HART
® standard menus
of the handheld.
2
2
4 ...20 mA
Adjustment with detachable adjustment module. The
adjustment module can be plugged into the radar
sensor or into the external indicating instrument
VEGADIS 50.
Detachable adjustment module MINICOM
- +
ESC
OK
Tank 1
m (d)
12.345
Adjustment with the adjustment module
MINICOM
With the small (3.2 cm x 6.7 cm) 6-key ad-
justment module with display, the adjustment
is carried out in clear text dialogue. The ad-
justment module can be plugged into the
radar sensor or into the optional, external
indicating instrument.
Unauthorised sensor adjustments can be
prevented by removing the adjustment mod-
ule.
- + ESC
OK
2
4
Tank 1
m (d)
12.345
- + ESC
OK
Tank 1
m (d)
12.345
4 ... 20 mA
