Wood Frame Installation
A typical wood frame including the liner is approximately 5
inches wide to properly cover the assembly. The wood
overhangs the main shell approximately 3/4 inch when
attached.
Two corner woods are attached to the backside of the wood
frame to take-up the weight.
The wood frame attaches to the main shell by two clips on
the backside (see Picture Frame Installation and Removal
Section) and hold in place by the ears of the main shell.
Electrical Connections
A dual AC outlet box is provided for 120VAC connection.
Connect 120VAC to this box to power the TV and the IR
remote control.
The Art Screen comes with IR remote control for operations.
It is ready for use; no wiring connections are required.
Place the IR sensor so that it can be seen by the transmitter.
Plug the power cord to a 120VAC outlet.
The IR remote control has manual inputs for Home
Automation systems, i.e. AMX, Crestron, etc. See IR remote
control manual (included) for detail information.
The SPDT switch (Figure 3b) may be used for security
purpose; its contacts may be connected to an audible alarm
system or monitoring system. The breach of security will be
activated when the wood frame is removed.
The normal states of the contacts are shown when the wood
frame is not presented.
Contact Rating: 10Amp, 1/2HP, 125/250VAC
or 6Amp, 30VDC.

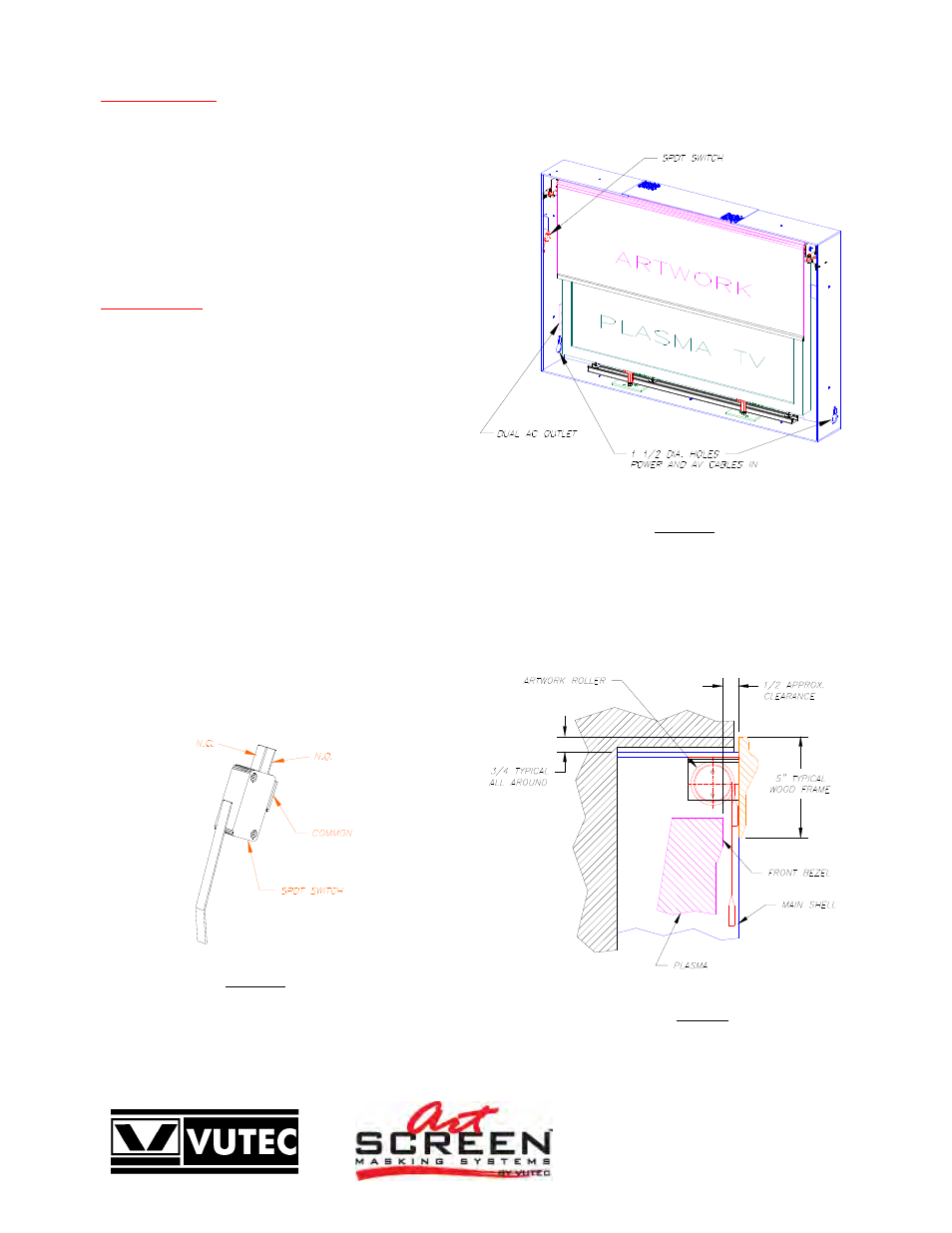

Figure 3b
SPDT switch
Figure 4
Side View
Fi gure 3a
Partial Assembly
