Reset to Factory Default
NOTE: The following sequence will clear all paired transmitter security codes from the RR433 memory.
1. While the Program Mode LED is off, press and hold the “Press to Learn Transmitter” button until the
Program Mode LED blinks on, then off, then stays on (takes approximately 6 seconds).
2. Release the “Press to Learn Transmitter” button.
3. The Program Mode LED will stay on indefinitely until the first transmitter is paired.
Antenna Orientation
• Mount the RR433 with the antenna pointing horizontally, parallel to the floor or ground, to
maximize reception.
• Install in open area, outside of a metal enclosure, and at least 5 feet (1.5 meters) above
the floor or ground.
• Ideally, the antenna should be at least 9 inches (23 cm) from any metal surface.
• Effective range is 50 feet (15 meters) unobstructed.
• See the Optimum RF Reception Guide for additional information about antenna
placement and the range of RF transmitters.
Horizontal Orientation
Specifications
FACTORY DEFAULT No paired transmitters. All five memory slots are cleared.
Program Mode LED stays on solid until the first transmitter is paired.
VERSION BLINKS
(at power up)
version 2 = 2 red blinks
version 5 = 5 red blinks
version 5.1 = 5 short and 1 long, red blinks
FREQUENCY 433.92 MHz
POWER Supplied by +5VDC from modular connection to EYE or BUS port on RP bus motor
control or ESI accessory.
Current Draw = 25mA
DIMENSIONS (with antenna) Length: 3.86 in. x Width: 3.83 in. x Height: 0.89 in. (98.1 mm x 97.4 mm x 22.8 mm)
PAIRING Can pair with a maximum of five (5) transmitters.

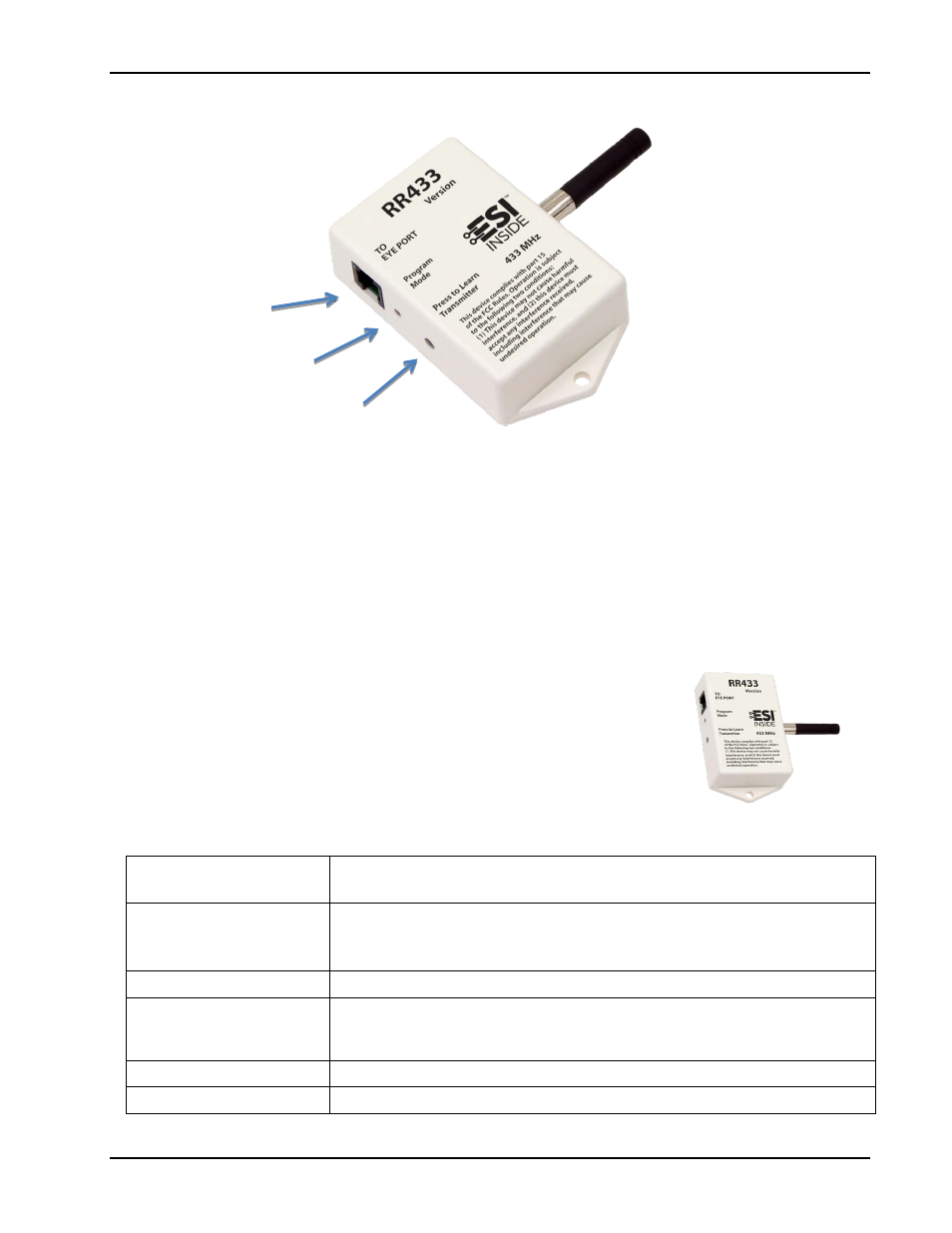

Modular Connection
Program Mode LED
Press to Learn Transmitter
button
