The screen frame is now trapped between the upper and lower wall brackets. Push down in the middle of the bottom screen frame
to release it from the lower wall bracket. The screen frame is ready to be lifted and removed from the wall.
Place the screen frame on a flat and cleaned surface with the backside face up.
Attach the screen fabric to the frame. The fabric must be stretched to meet the Velcro strips on the frame.
Check the screen from the viewing side. Be sure the screen surface appears smooth and free of wrinkles. Reapply the screen fabric
as necessary.
Hang the screen using only the upper wall brackets. Adjust the screen’s side to side location. Push down in the middle of the
bottom screen frame to hook it to the lower wall bracket.
Hint: The screen fabric will stretch to allow the bottom frame to be pushed down.
Accessories Included
Description QTY.
Wall Mount Bracket 4
#8 x 11/2 long, Truss Head Phillip Screw 12
Blank Corner Bracket 4
Tapped Corner Bracket 4
1/4-20 x 1/4 long, Hex Socket Set Screw 16
5/32 Hex Key 1

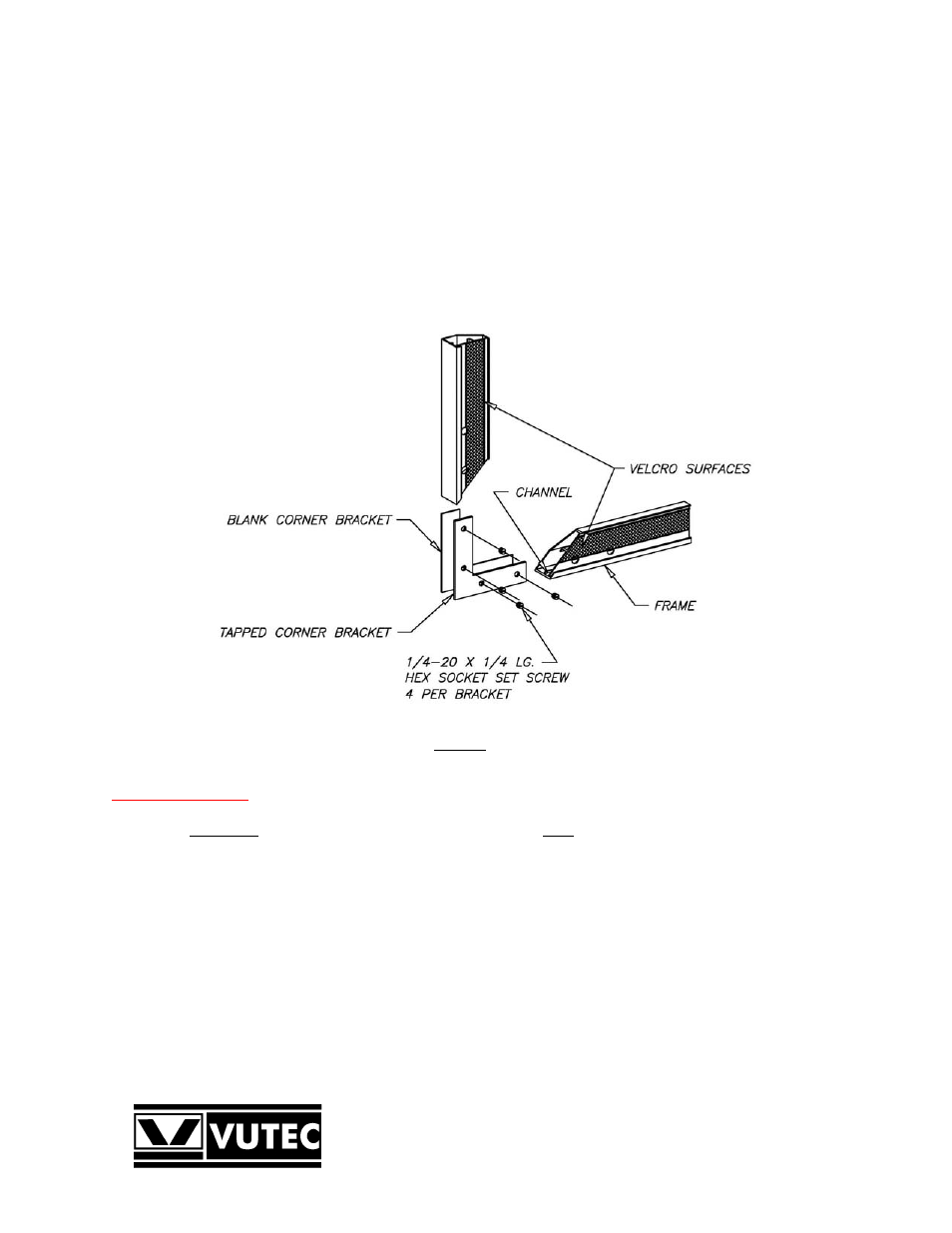

Figure 3
Corner Brackets Assembly
