7
T1 : BC547B
3. Transistor
R7 : 15K (1 - 5 - 3)
R8 : 15K (1 - 5 - 3)
R9 : 15K (1 - 5 - 3)
R10 : 15K (1 - 5 - 3)
R11 : 1K (1 - 0 - 2)
R12 : 1K (1 - 0 - 2)
R13 : 10K (1 - 0 - 3)
R14 : 270K (2 - 7 - 4)
1. Resistors
R...

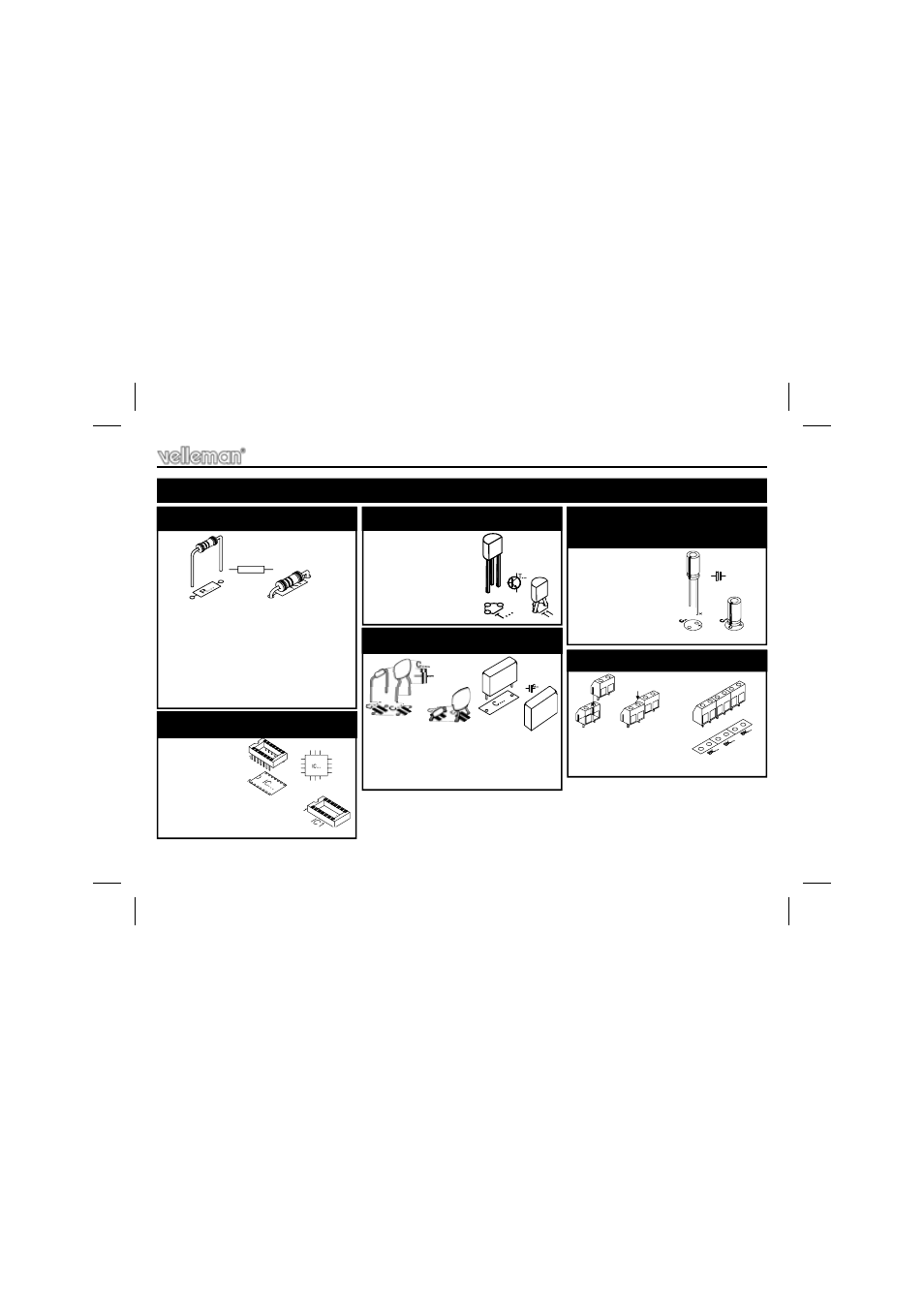

Construction
(B) Assembly of the receiver PCB : P3502S
IC6 : 14p
Pay attention to the position
of the notch!
2. IC socket.
C7 : 10nF (103)
C8 : 10nF (103)
C9 : 100nF (104)
4. Capacitors
C10 : 10µF
C11 : 100µF
5. Electrolytic capacitors.
Watch the polarity !
C...
J1 : 3 x 2p
6. Screw connectors
