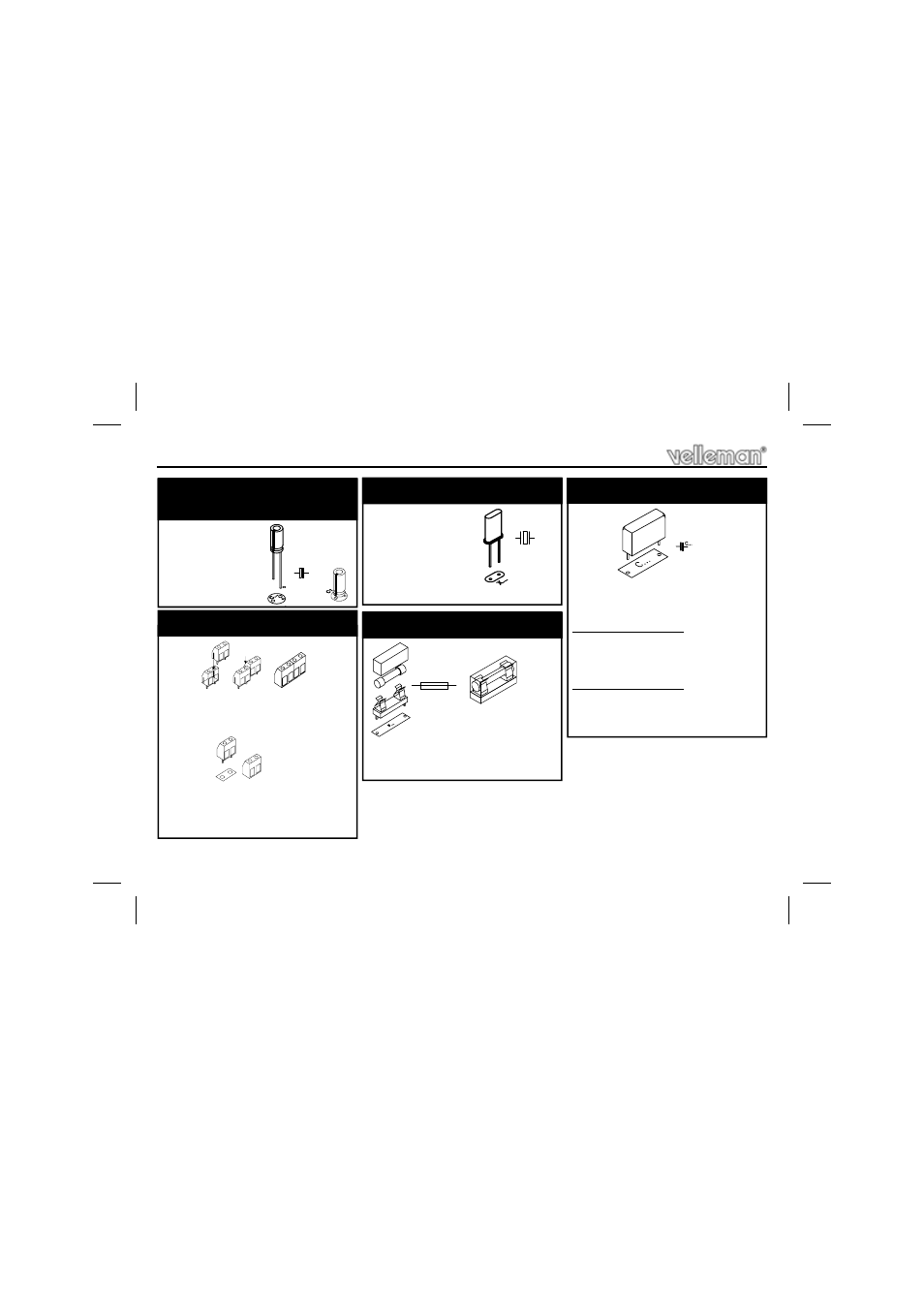

Velleman К8064 User Manual
Page 8
8
C9 :
10µF
C10 : 100µF
C11 : 220µF
15. Electrolytic Capacitors
.
Watch the polarity !
C...
Construction
X1 : 10MHz
17. Crystal
X...
Choose operating voltage :
For 110 - 125VAC :
C13 : 1µF / 250V
For 220 - 240VAC :
C13 : 0,47µF / 630V
19. Capacitor.
SK1 : 2p (AC power)
Pitch 7,5mm
SK2 : 2p (Load)
Pitch 7,5mm
SK3 : 2p (Analog IN)
Pitch 5mm
16. Terminal connectors
F1 : 4A SLOW
18. Fuse + Fuseholder
F...
