Conversion to New Bowl Tag Axle Configurations – ABIB-10001
Spicer
Part-No.
Description
131340 High Entry Input Assembly
131205 Input Bearing Cone (inner)
131206 Input Bearing Cup (inner)
131208 Input Bearing Cone (outer)
131209 Input Bearing Cup (outer)
134129 Output Housing Plug
107276S RTV Sealant
131008K Oil Seal Kit with Input Nut
127195
IAD Air Line Plug ( line)
131487 IAD Air Line Plug (cover)

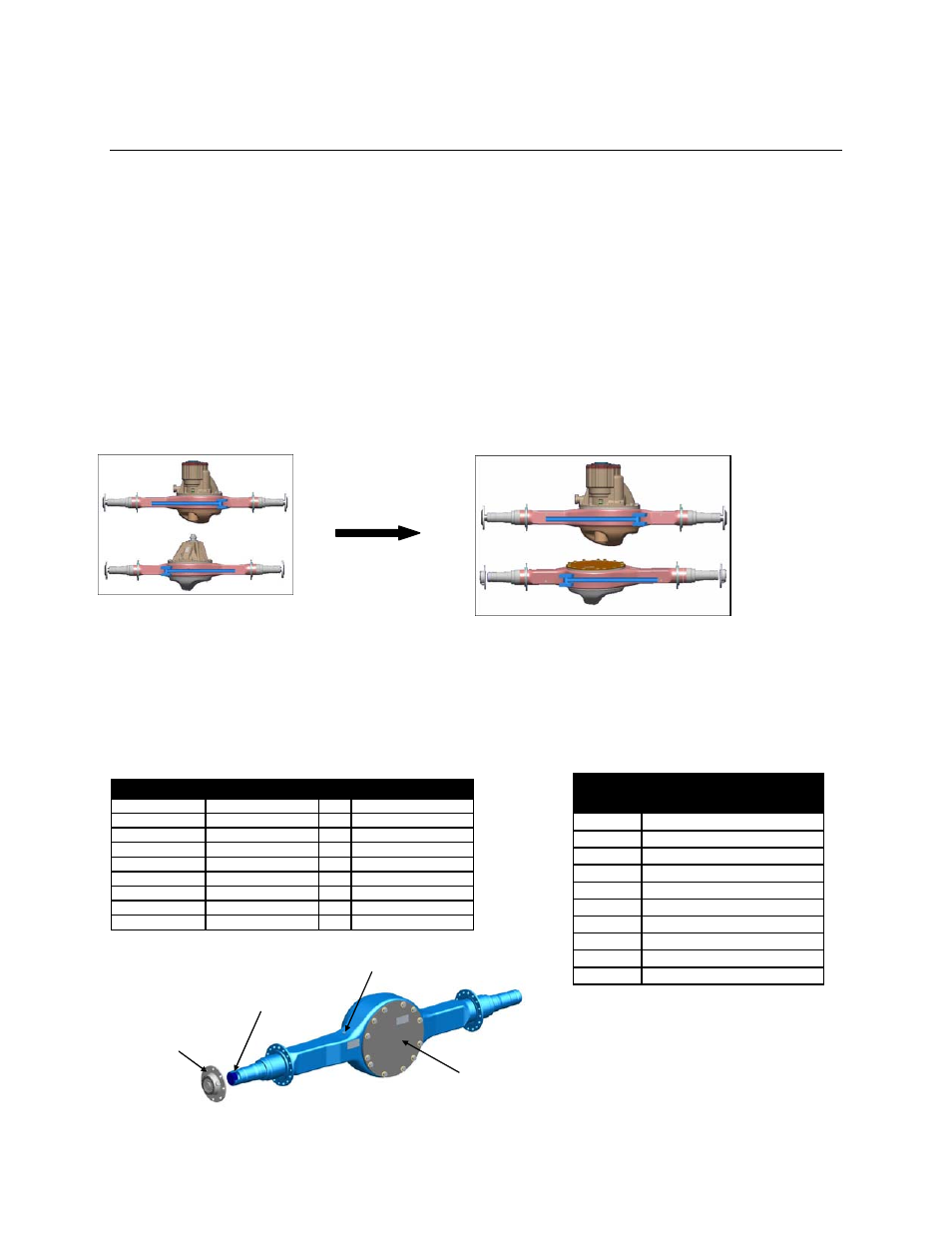

Heavy Tandem 40/6K Conversions from 6x4 to 6x2
• Models: D46-170, R46-170
• 40,000-46,000 lbs Applications
Fleet customers can retrofit existing vehicles with heavy tandems from a 6x4
configuration to the 6x2 configuration. Dana has released service kits and instruction
information that easily converts the Rear-Rear axle of a 6x4 into a Bowl Tag
configuration.
Current 40/46k 6x4
axle configuration
Kit P/N: 504601
Description: Kit-Tag Axle S23-070B
Convert to 40/46k 6x2 –
Order Spicer Kit 504601
Conversion requires:
Remove rear-rear axle assy and axle shafts
Modify forward Carrier to “High Entry” design
(Refer to parts table below and document shais187)
Install Bowl Tag Conversion Parts kit 504601.
Parts list to convert D170 to “high entry”
Spicer Part-No. Description Qty Notes
302873 Bowl Cover 1 23-070B mdl cover
302835 Spindle Plugs 2
134129 Plug - Cupped 1 Fdw Cover IAD plug
132820 Cover Bolts 14
130877 Cover Washers 14
107276S RTV Sealant 1
90897 Vent Plug 1
821615 Hub Cap 2 7" bolt circle
SHAIS189A Information Sheet 1
Parts in Conversion Kit:
Breather Hole Plug
Spindle Plug
Hub Cap
Assembly
Housing Cover
Plate
The material contained in this bulletin is product improvement information. Dana Holding Corporation are not committed to, or liable for,
canvassing existing products.
