Spicer Conversions to New Bowl Tag Axle Configurations User Manual
Page 3

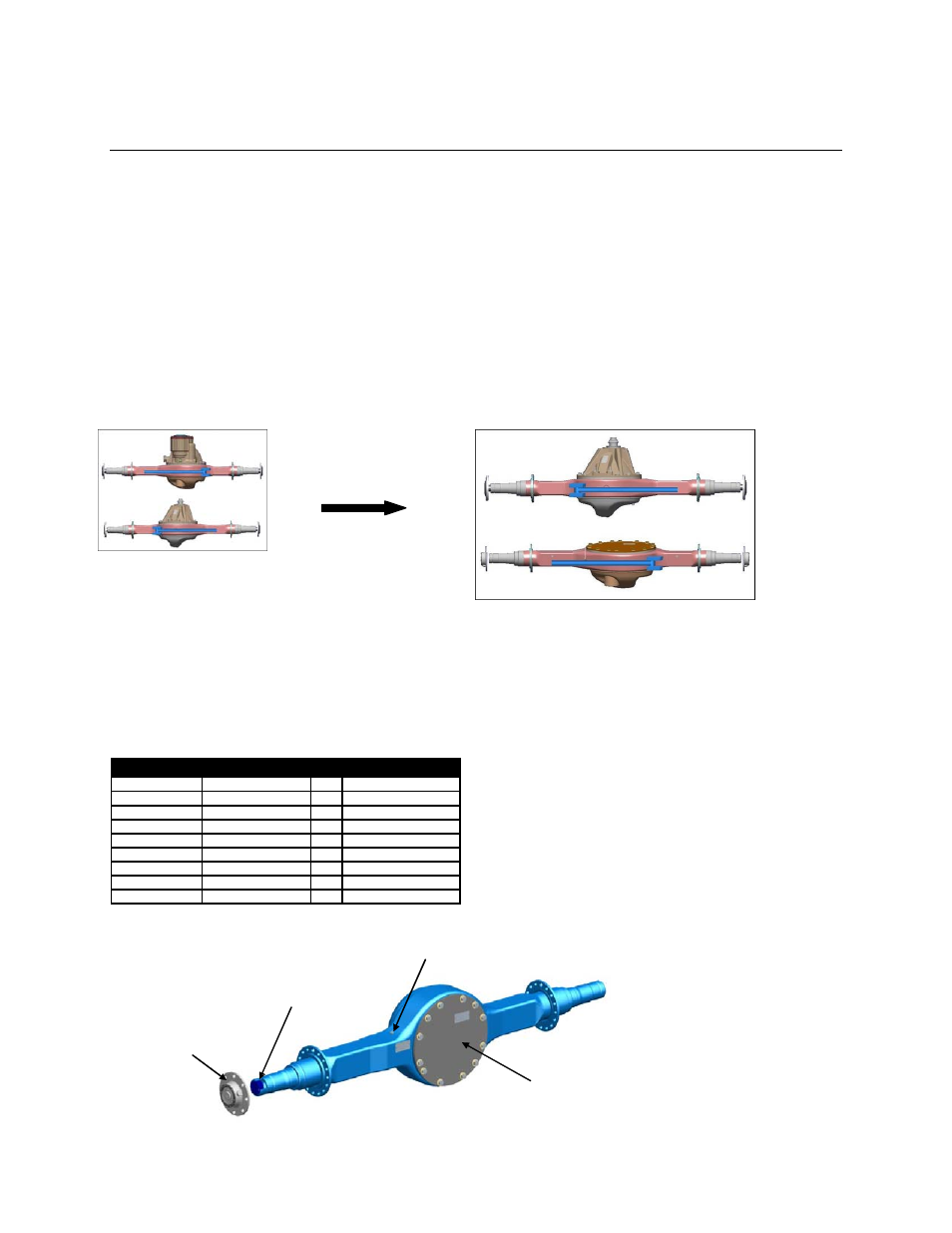

Conversion to New Bowl Tag Axle Configurations – ABIB-10001
Heavy Tandem 40/46K Conversions from 6x4 to 6x2
• Models: D40-170, R40-170
• 40,000, 46,000 lbs Applications
Fleet customers can retrofit existing vehicles with heavy tandems from a 6x4
configuration to the 6x2 configuration. Dana has released service kits and instruction
information that easily converts the Rear-Rear axle of a 6x4 into a Bowl Tag
configuration.
Current 40/46k 6x4
axle configuration
Convert to 40/46k 6x2 –
Order Spicer Kit 504601
Conversion requires:
Rear-Rear axle assy move to the Forward position.
Forward Axle Housing move to the rear axle position
Install Bowl Tag Conversion Parts kit 504601.
Kit P/N: 504601
Description: Kit-Tag Axle S23-070B
Spicer Part-No.
Description
Qty Notes
302873
Bowl Cover
1
23-070B mdl cover
302835
Spindle Plugs
2
134129
Plug - Cupped
1
Fdw Cover IAD plug
132820
Cover Bolts
14
130877
Cover Washers
14
107276S
RTV Sealant
1
90897
Vent Plug
1
821615
Hub Cap
2
7" bolt circle
SHAIS189A
Information Sheet
1
Parts in Conversion Kit:
Breather Hole Plug
Spindle Plug
Hub Cap
Assembly
Housing Cover
Plate
