Cast iron cover design lockout, Navistar rev - air type) models : all d404 models – Spicer New Cast Iron Cover Inter-axle Differential Lockout units User Manual
Page 6

Item No.
Description
Qty.
R
1
Capscrew
2
128744
2
Piston Housing
1
128733
3
Gasket-Piston Hsg
1
128643
4
Snap Ring
1
128734
5
O-Ring
1
210180
6
Piston
1
128724
7
Snap Ring
2
128725
8
O-Ring
1
128728
9
O-Ring
1
128729
10
Pilot Plate
1
128726
11
O-Ring
1
128727
12
O-Ring
1
128331
13
Push Rod
1
128730
14
Compression Spring
1
128731
15
Shift Fork Assy.
1
127506
Gasket Compound
AR
107276
K
Complete L/O Kit w/o Fork
216048
I
Complete L/O Kit w/Fork
128735
T
Repair Kit
N/A
S
R
D404 Series - (Navistar Reversed-Air)
1
2
4
5
6
7
8
9
10
11
7
15
14
13
12
3

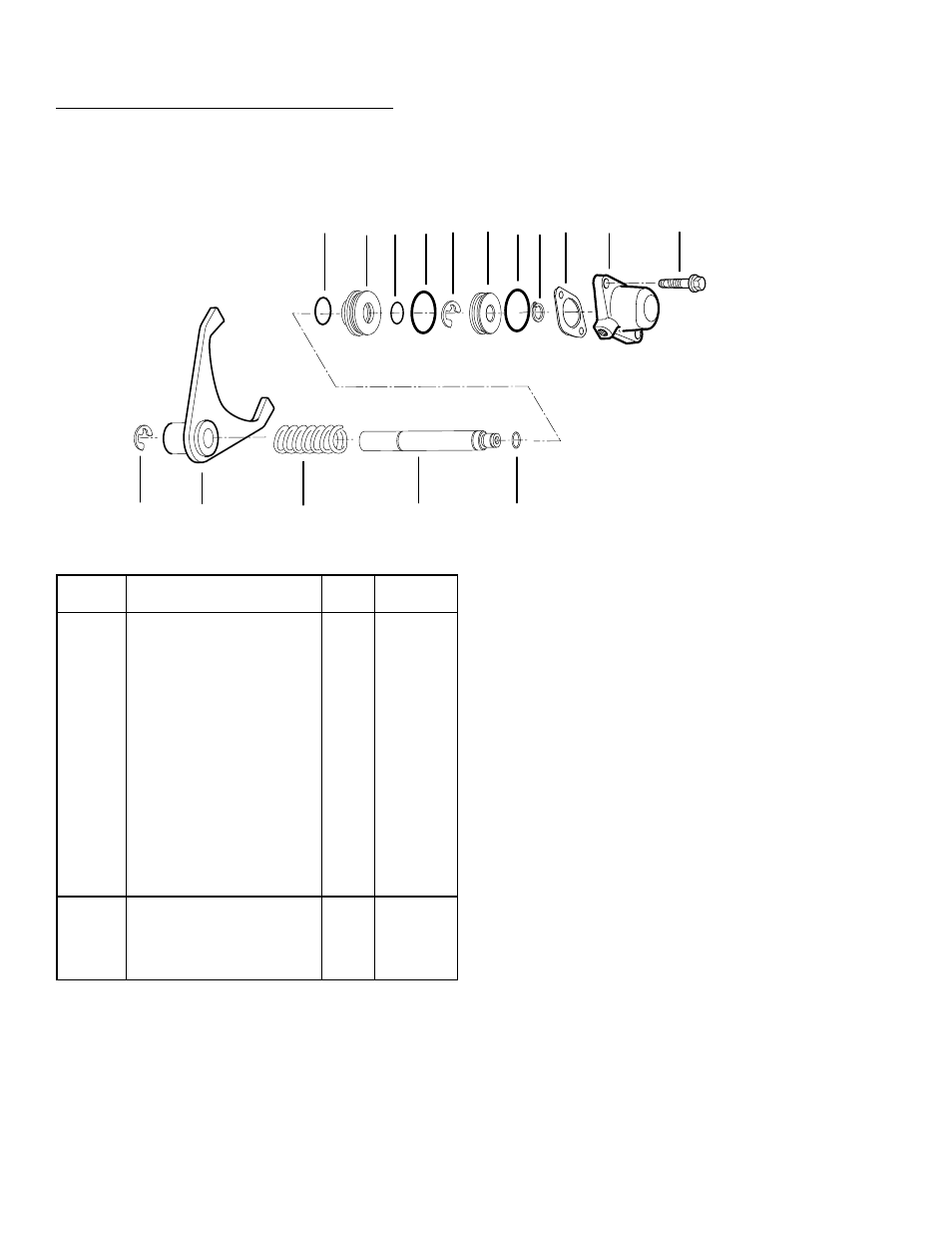

Cast Iron Cover Design Lockout -
(Navistar Rev - Air Type)
Models
: All D404 models
NOTE:
Navistar vehicles built after November 1st, 1996 no
longer use the reversed-air system.
