2
General Information
Model Information Identification
Steer Axle Identification
Model Number Information
E Family, D Family Numbering System
EFA Family Numbering System
I Family Numbering System

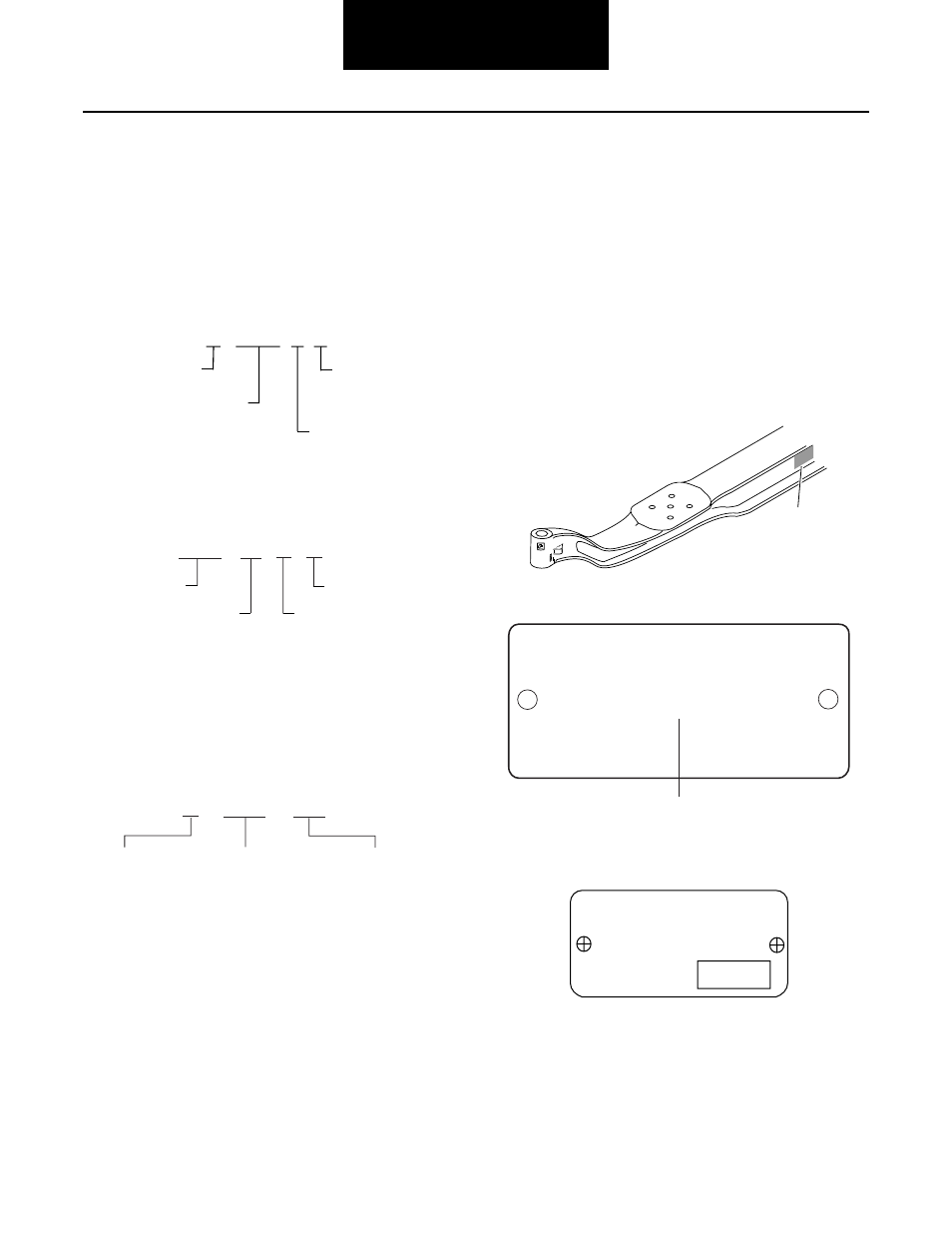

Model Number Location
The Spicer front non-drive steering axles are identified with a
tag located between the spring pads, on the front side of the
center beam section.
The axle tag contains the serial number, the model number,
and the assembly number.
If Steer Axle is LMS™, as shown on the hub, see page 30 for
removal and assembly procedures.
If Steer Axle is Standard, see page 39 for removal and
page 22 for assembly procedures.
E Family Tag
EFA Family Tag
Design Level
E -120 0
I
Beam Type
I - I-Beam
T - Tubular Series
GAWR x 100 lbs.
Example:
120 x 100 = 12,000 lbs.
Nominal Load
Capacity
12 - 12,000 lbs.
18 - 18,000 lbs.
22 - 22,000 lbs.
24 - 24,000 lbs.
Series
Beam Type
F - Forged I-Beam
T - Tubular Beam
Design Level
EFA 12 F 4
I 120 SG
Nominal Load
Carrying Capacity
60 = 6,000 lbs.
80 = 8,000 lbs.
100 = 10,000 lbs.
120 = 12,000 lbs.
140 = 14,000 lbs.
160 = 16,000 lbs.
180 = 18,000 lbs.
200 = 20,000 lbs.
Beam Type/
Series SG =
SB =
W = I-Beam Standard
Overall Width
Coach Beam
Over 96"
Overall Width
Tag
CUST PART NO. XXXX
SPEC.
XXXXXX
MODEL
XXXXX
MADE IN:
PART NO.
SPICER
XXXX
SERIAL NO.
XXXXXXXX
RATIO
XXXXX
Dana Part Number
Spicer Axle
MODEL
000000 000000
PART NO.
SPEC. SERIAL NO.
000000000 0000000000
CUST. PT. NO.
0000000000
MADE IN
0000000
