Drive axles – Spicer Dana LMS Hub Assembly Procedure – Steer and Drive Axles User Manual
Page 8
WARNING: Do not attempt to make LMS™ hubs by using LMS™
bearing, spacer and seals in a standard hub.
This may result in a seal or bearing failure, which may result in loss of wheel end and or loss of vehicle control.
0
8/05 8 of 11 shais171
Drive Axles

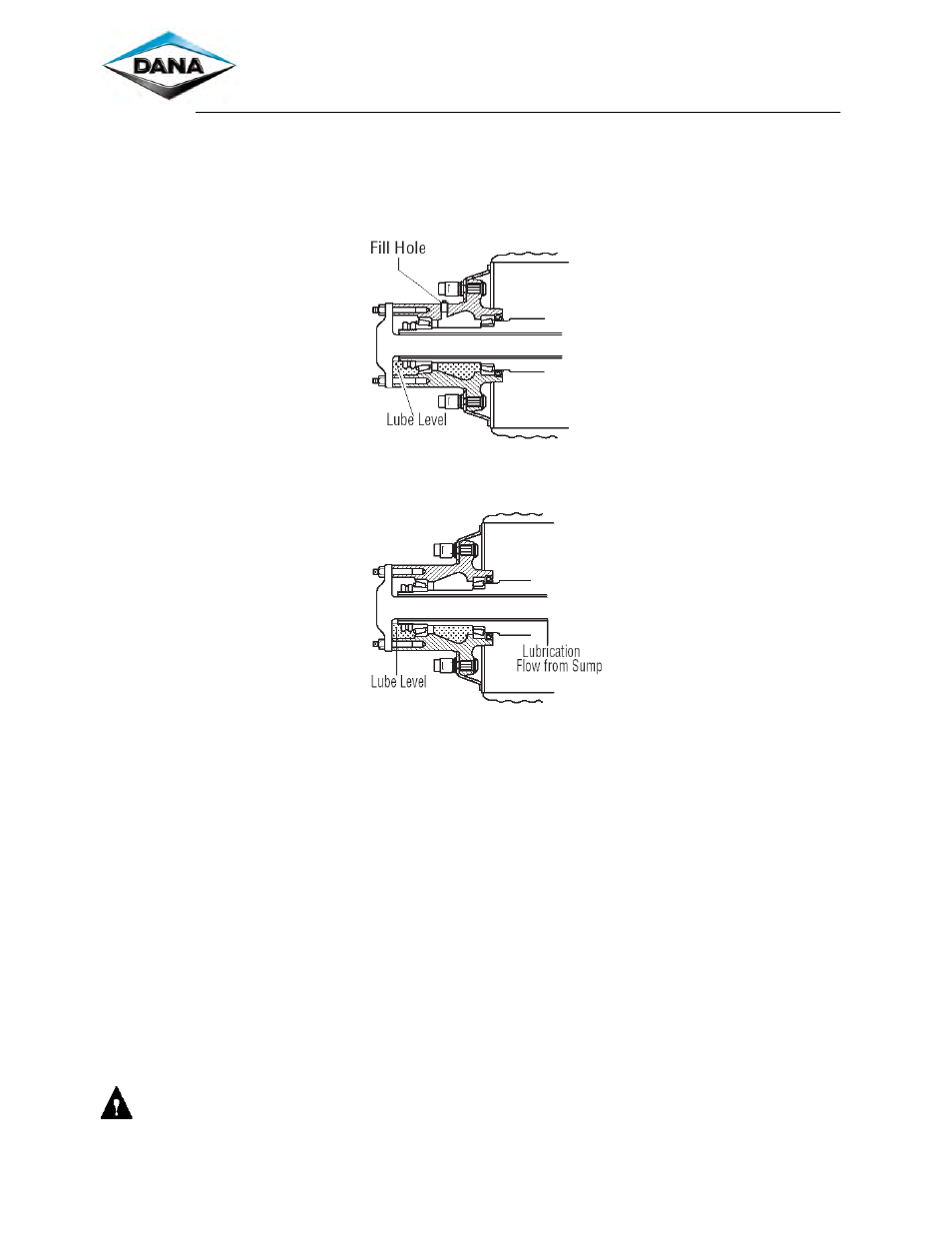

Dana axles may be equipped with either of two wheel end designs:
• Wheel ends with an oil fill hole. (see figure below)
• Wheel ends without an oil fill hole. (see figure below)
Wheel Ends with an oil fill hole proceed as follows:
1. Rotate the wheel end hub until the oil fill hole is up.
2. Remove the oil fill plug.
3. Pour 21 oz. of axle sump lubricant into hub cavity through wheel end fill hole.
4. Install oil fill plug and tighten to specified torque.
