Gear and Pinion Kits
Ring Gear & Pinion Identification
Ring Gear and Drive Pinion are matched parts and must be replaced

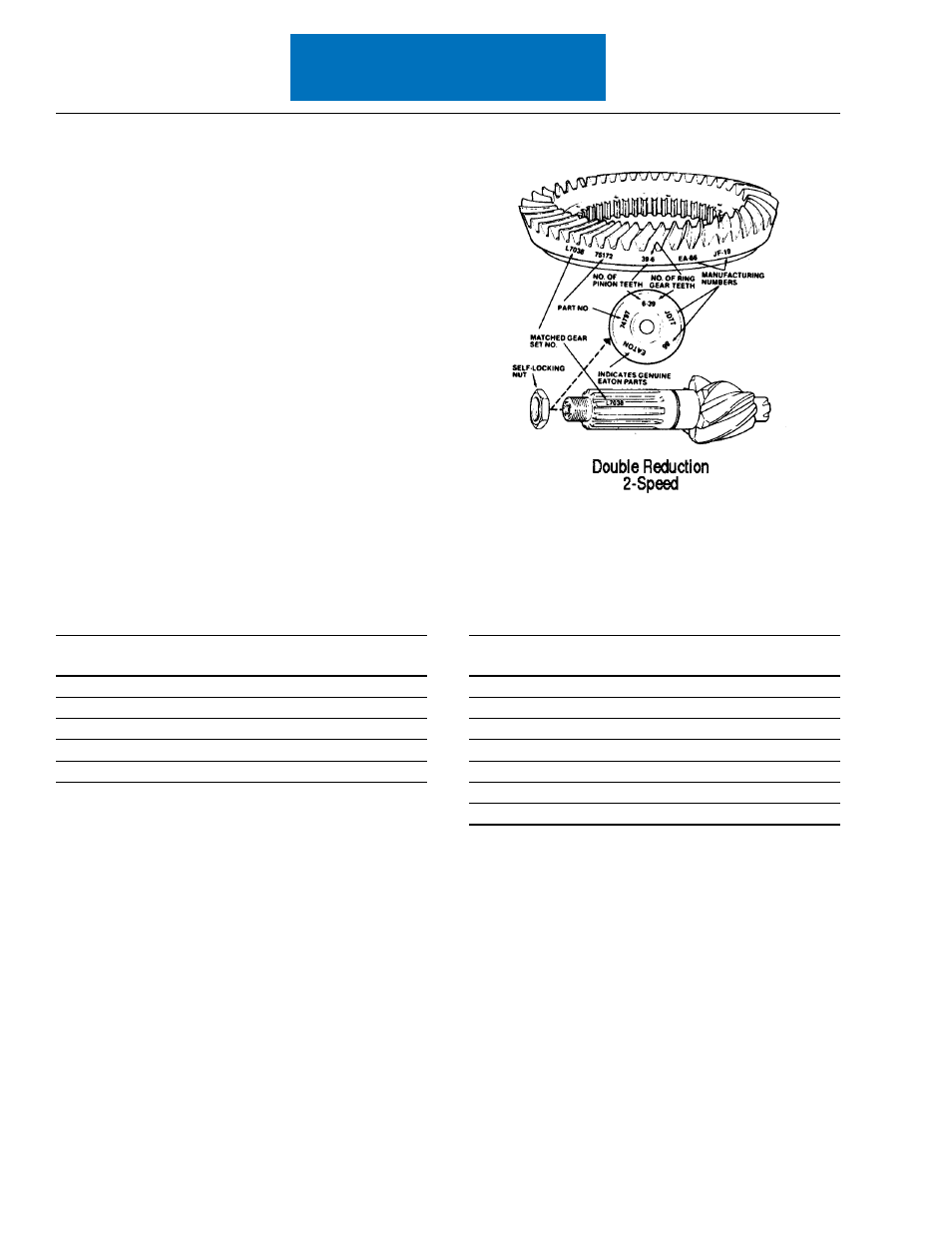

in sets. Complete identification is stamped on both parts as shown in
the adjacent drawing. Order the Dana kit by the ratio required from the
chart below.
15040T/P
Drive Pinion Spline-34
1.750” Diameter
14.25” Hypoid
Ratio
Service Kit
Ring Gear
Pinion
Teeth
(NSS)
(NSS)
No.
4.56/6.34
122011
74044
126093
41/9
5.14/7.16
121801
74046
126094
36/7
5.75/7.75
121802
110164
126101
39/7
5.86/8.15
121803
113444
126102
41/7
6.29/8.75
121804
113446
126103
44/7
19050T/P
Drive Pinion Spline-34
1.750” Diameter
15.50” Hypoid Gearing
Ratio
Service Kit
Ring Gear
Pinion
Teeth
(NSS)
(NSS)
No.
4.56/6.34
121545
83868
126112
41/9
4.88/6.78
121546
74008
126115
39/8
5.29/7.35
121547
118925
126117
37/7
7.57/7.75
121548
74010
126106
39/7
6.14/8.55
121549
74012
126107
43/7
6.57/9.14
121550
113452
126116
46/7
7.17/9.97
121551
74016
126109
43/6
