EN-2 Rechargeable Battery Option Kit

2.2 80500729 Installation in T51P and T71P

Refer to Figures 2.1, 2.2 and 2.3 when performing these steps.
1. Remove the battery cover from the rear housing.
2. If dry cell batteries are installed in the battery compartment, remove them.
3. Remove the rib from the battery compartment by sliding it left and pulling it up.
4. Remove the backing from one side of the fastening tape and attach the tape to

the recess in the battery compartment.

5. Remove the backing from the other side of the fastening tape.
6. Position the rechargeable battery in the battery compartment, with the wires

facing the charger pc board compartment.

7. Press on the battery pack to secure it to the hook and loop tape.
8. Attach the cable to the 9-pin connector located in the pc board compartment

and the 8-pin connector of the charger pc board.

9. Attach the battery pack connector to the 3-pin connector of the charger pc board.
10. Install the charger pc board with the component side down using the 4 tapping

screws.

11. Install the battery cover.

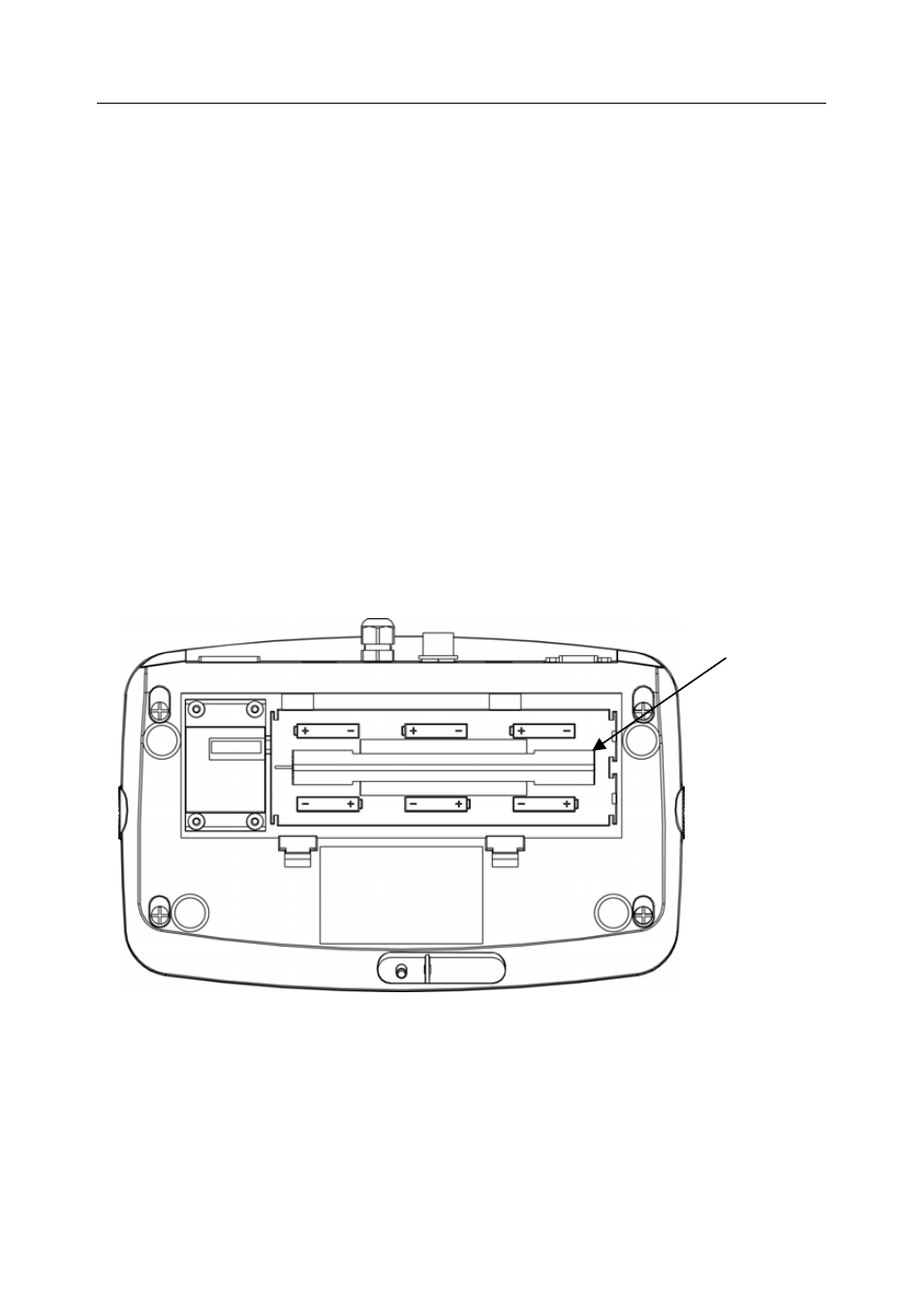

Removable

rib

Figure 2.1
