EN-5 3000 Series Indicators
1.2 Overview of Parts and Controls

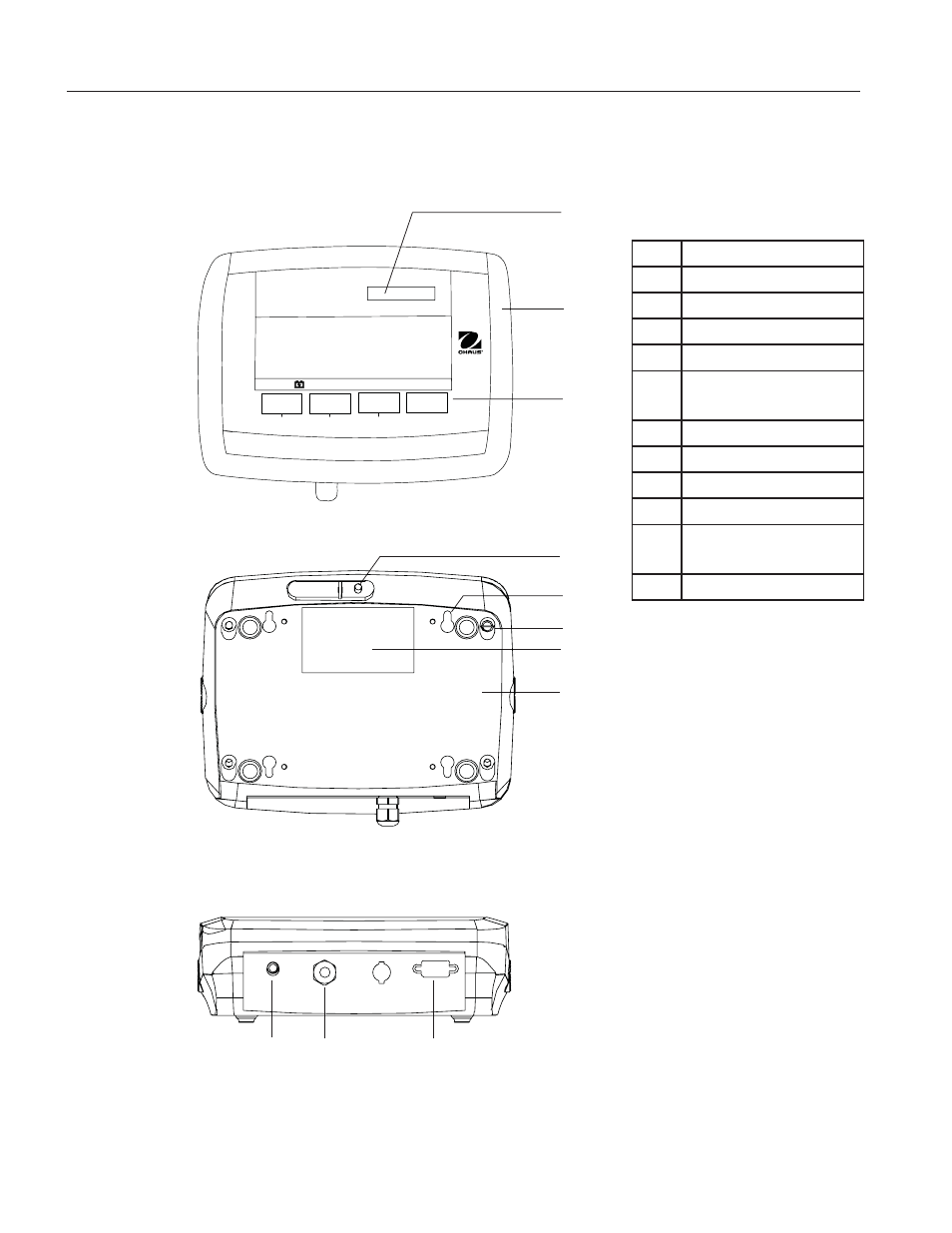

Figure 1-1. T31P Indicator.
3
Item Description
1 Data Label
2 Front Housing
3 Control Panel
4 Security Screw
5 Key Hole (4) for wall
mounting
6 Screw (4)
7 Data Label
8 Rear Housing
9 Power Receptacle
10 Strain Relief for Load Cell
Cable
11 RS232 Connector
TABLE 1-1. T31P PARTS.
4
6
7
8
9 10 11
5
2
